2-3
IM80B80T10E 21th Edition : Jul.1,2007-00
< 2.OVERVIEW >
(4) Response Speed
Variable up to 2 min for a 0 to FS-step input (0% to 90% response)
(5) Milepost Adjustment
Break point of linearize : in 5 kt. increments
Sensitivity (span) adjustment range :
× 1.8 to × 0.6 (specied in 0.1 increments)
(6) External Output Signal Accuracy
Analog signal (voltage / current ): 0.2 % max. of the full span
Distance pulse: same as the measuring accuracy
Speed limit detection: same as the measuring accuracy

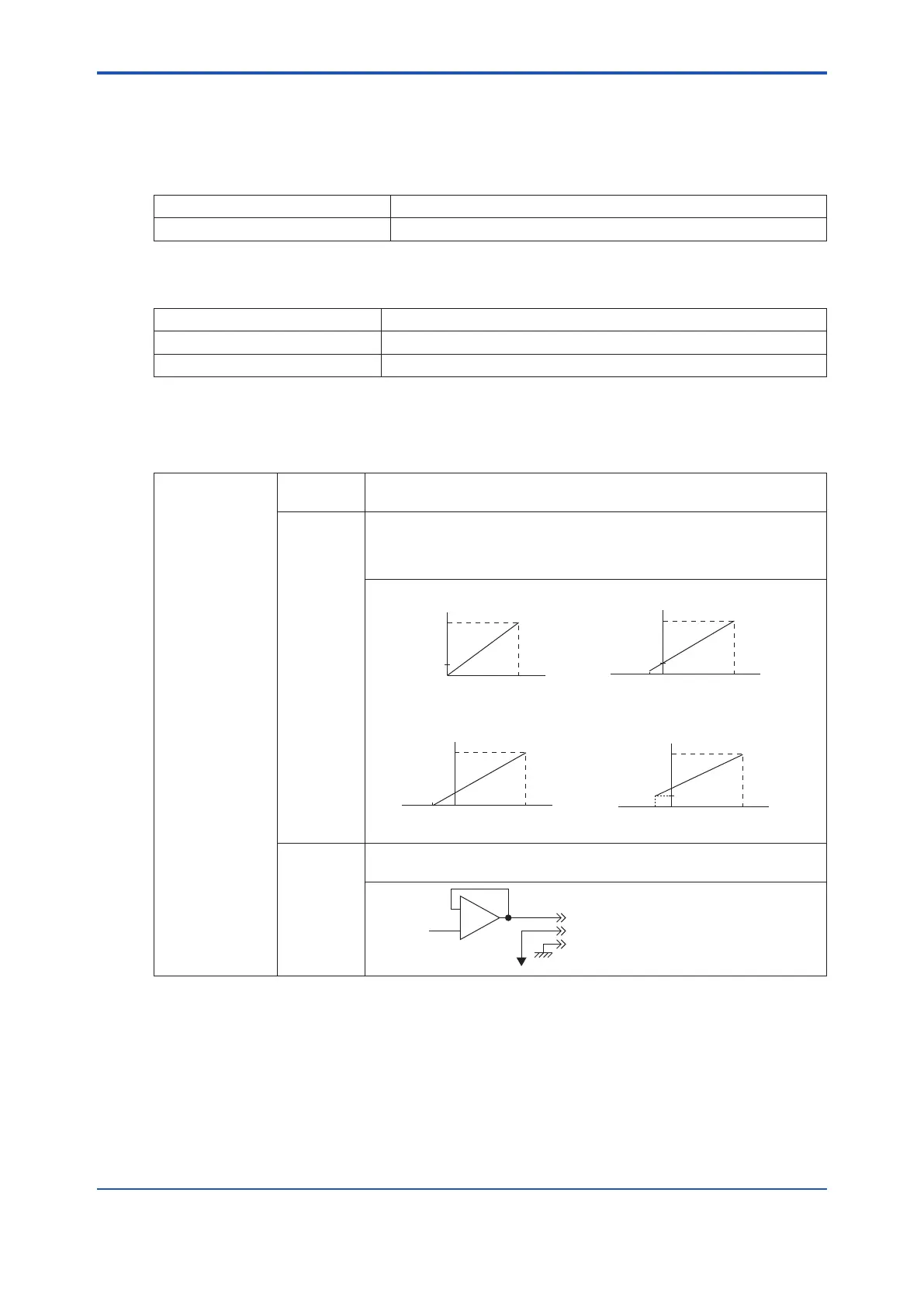

(7) Output Signals
analog speed output : 6 circuits
(i) Voltage output Number of
circuits :
2
Output level: Either 0 V to 5V or 1 V to 5V can be selected.
One output type can be selected from the following four types.
Procedure of selection vide 6.3.3.
(a)
Output voltage
Ship’s speed
Output voltage
Ship’s speed
(b)
Output voltage
Ship’s speed
Output voltage
Ship’s speed
Output
circuit :
Non - isolating method
Load resistance of kΩ max = 5 kΩ
