6-2
IM80B80T10E 21th Edition : Jul.1,2007-00
< 6.INSTALLATION >

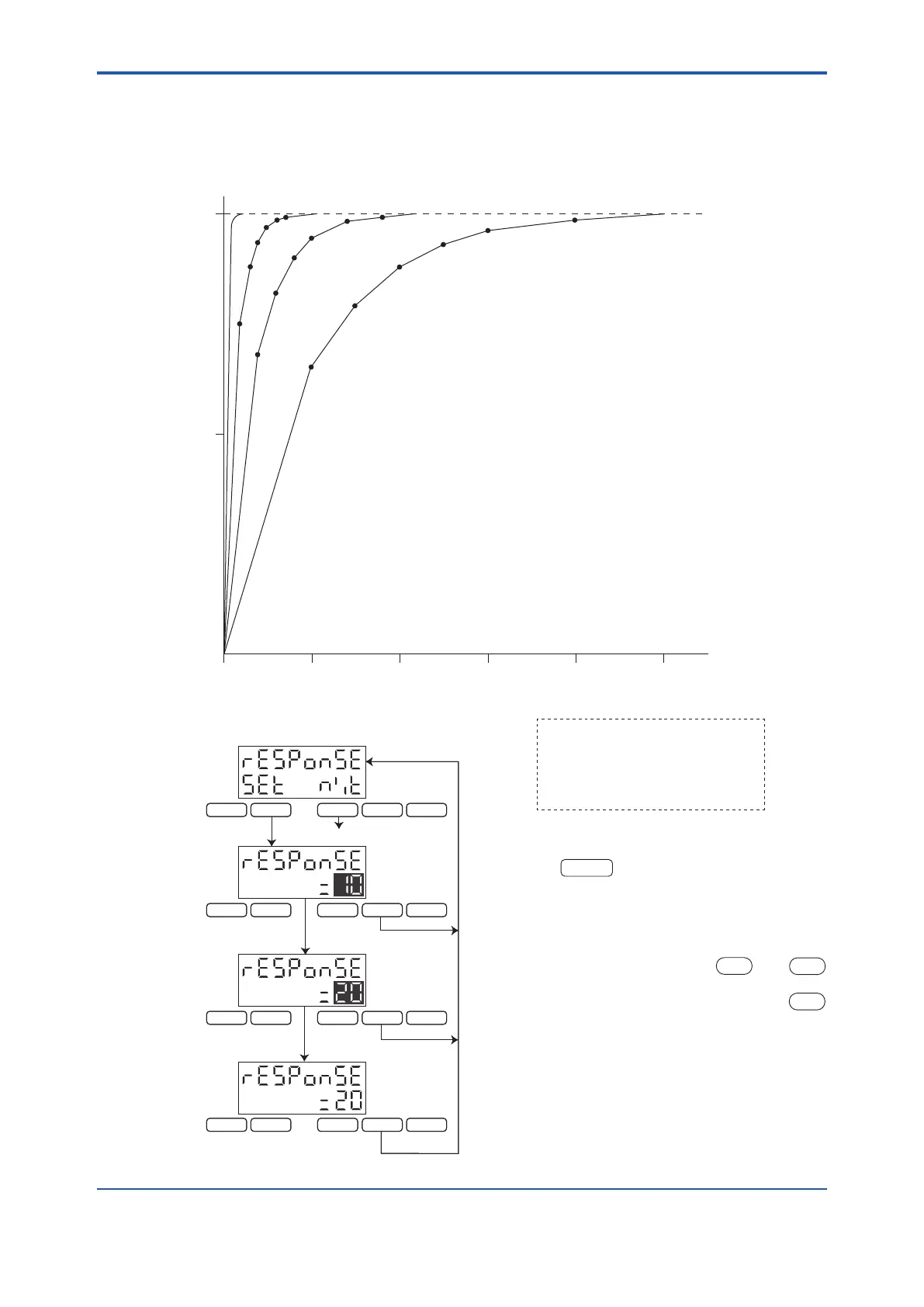

6.2 Response-speed Setting
Determine the response speed according to the performance of the ship. The relationship between
the set value and actual output response is as follows :
100 20 30 40 50
50
100
(%)
(sec)
(1)
(2)
(3)
(4)
Time
Output response
(1) : Set value = 1
(2) : Set value = 2
(3) : Set value = 4
(4) : Set value = 10
Default : 5
Recommended values
For ships at 20 kt or 25 kt. : 5
For ships at 35 kt or 40 kt. : 3
For ships at 50 kt or 65 kt. : 2
Press the
F 1
key at -5-4 to select the re-
sponse speed setting .The display then changes
to that marked a. Here, the previously-set value is
ickering on the display.
The operation ow on the left gives an example of
setting '20'. To do this, rst enter
2
and
0
using the numeric keypad. Conrm that the values
has just been entered, and then press the
ENT
key. This stops the flickering (see the display
marked c), and completes the setting of the new
value (at time constant 20 seconds).
Setting range : 1 to 20
F 1 F 2
DISPL
PREV
MODE
F 1 F 2
DISPL
PREV
MODE
MAINT
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
a.
-5-4
-5-5
-5-41
b.
c.
Previously-set value
Press the ‘ENT’ key
Enter 2 and 0 in this
order from the
numeric keypad.
F 1 F 2
DISPL
PREV
MODE
F 1 F 2
DISPL
PREV
MODE
MAINT
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
a.
-5-4
-5-5
-5-41
b.
c.
Previously-set value
Press the ‘ENT’ key
Enter 2 and 0 in this
order from the
numeric keypad.
