1-1
IM80B80T10E 21th Edition : Jul.1,2007-00
< 1.INTRODUCTION >
1. INTRODUCTION
This chapter briefly describes the minimum information necessary to operate the EML500 Electro-
magnetic Log. You can use this chapter as a quick-reference manual covering the following
items:
(1) Components on the operation / display panel and their functions
(2) Starting and stopping
(3) Summary of functions
For further details, refer to the subsequent chapters.
1.1 Components and Their Functions

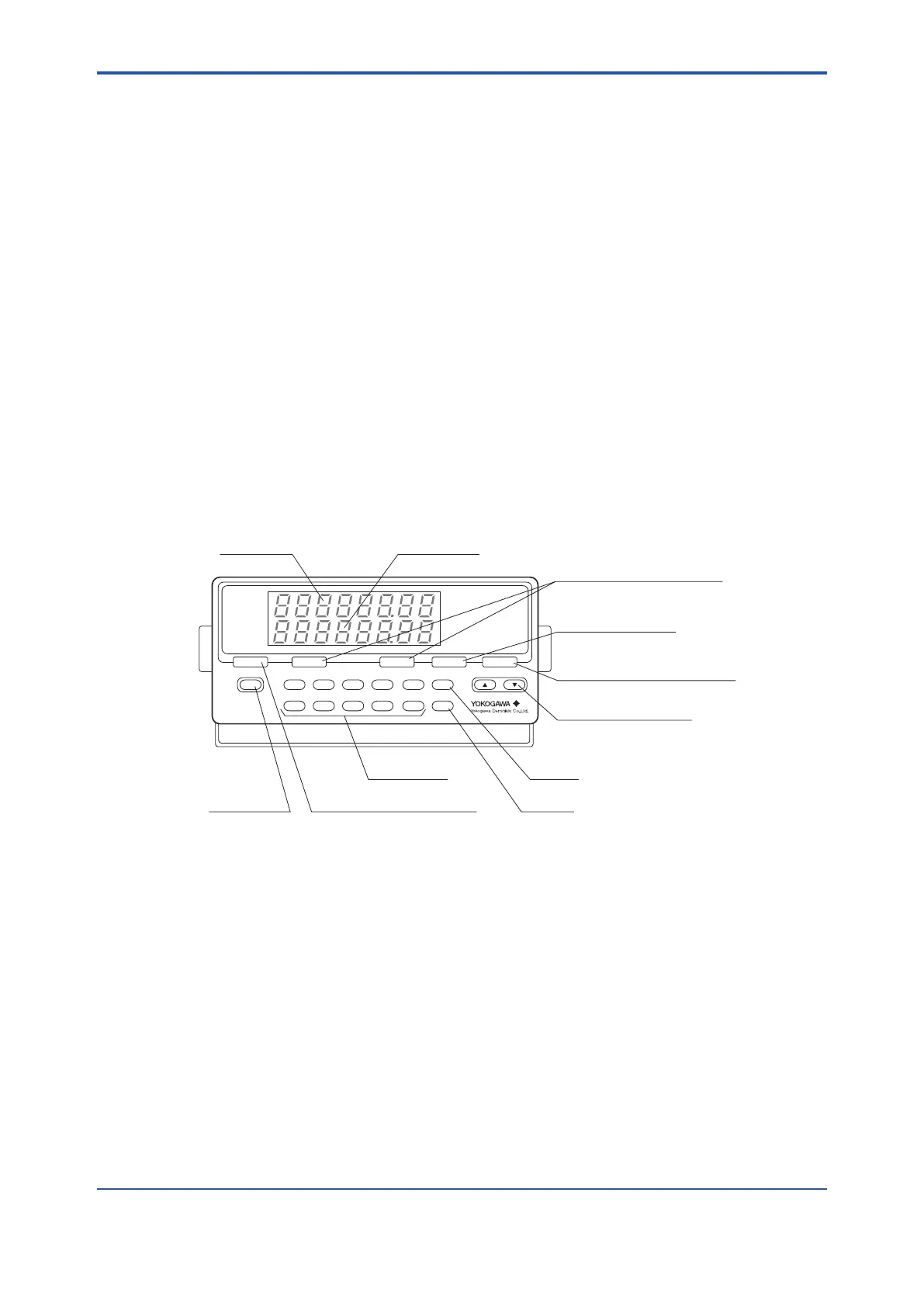

(1) Master indicator
GPS LOG ON OFF
ARARM
LOG/GPS
MAINT
TRIP
TOTAL DIST
TRANS SPD
A R A R M
M O D E
L T 6 7 8 9 0
CLEAR
1 2 3 4 5 ENT
F 1D I S P L F 2 P R E V MO D E
EML 500
kt
nm
kt
nm
Speed display
Distance display
Numeric keypad
Display select key
(for selecting speed or distance data)
Lamp-test key
Clear key
Enter key
(for entering set values)
Previous operation key
Dimmer keys
(for increasing or decreasing
the intensity of the light)
Mode key
(for changing operation or setting items)
Function keys
(pressed according to the indication
on the bottom line of the display)
