6.5.2 Manual milepost Measurement
In the manual milepost mode, no data can be set or entered; only the log speed is displayed without
intermediate error compensation. This mode is used to backup automatic milepost measurement.
If the D-GPS or another speed indicator is available during milepost measurement, the speed ob-
tained by the GPS or the indicator can be used as the real speed, instead of the real speed calcu-
lated based on the distance and time.
Record the log speed displayed in this mode, and also record a reading of the GPS (or another
speed indicator) as the real speed at the same time. Repeat this operation to obtain enough data.
After milepost measurement has been completed, enter these data to improve the milepost meas-
urement ( for data entry, refer to Subsection 6.5.3, "Display / Alteration / Deletion of Milepost Data").
Refer to Subsection 6.5.1 for details on the operation.
6.5.3 Display / Alteration / Deletion of Milepost Data
(Maintenance Mode)
Milepost data can be displayed, altered, added, or deleted as follows:
At -5-6, press the
F 1
key to select the data handling mode. The display then changes to that
marked a. While the display is at a to g. pressing the
F 1
key (NXT) or
F 2
key (BFR)

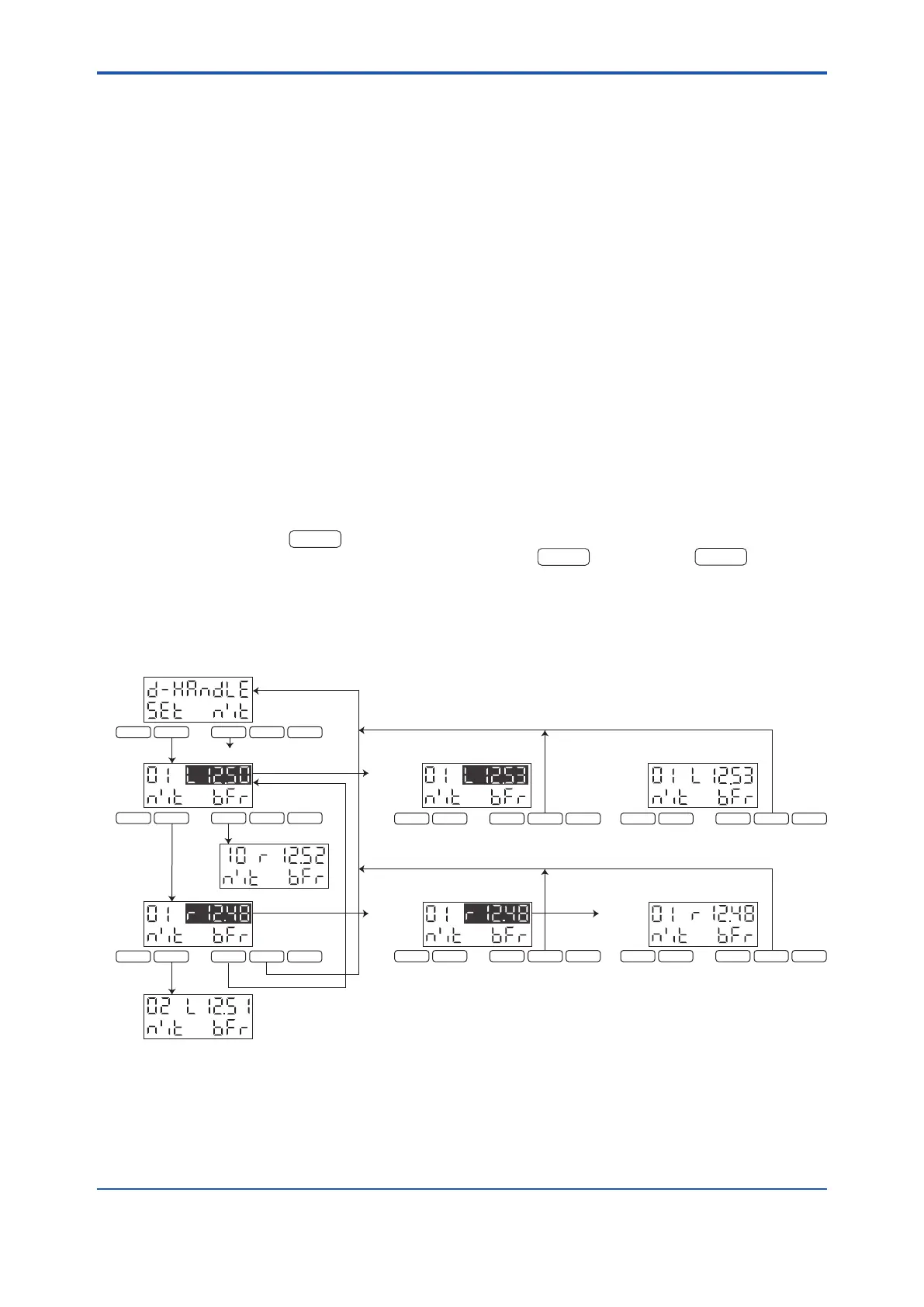

changes the displayed items in the order shown in the following gure. (The number at the begin-
ning of the top line of the display is the data group number. An "L" on the top line means log speed,
and "r" means the real speed.)
F 1 F 2
DISPL
PREV
MODE
F 1 F 2
DISPL
PREV
MODE
MAINT
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
a.

-5-6

-5-7

-5-61
d.
g.
F 1 F 2
DISPL
PREV
MODE
MAINT
b.
e.
F 1 F 2
DISPL
PREV
MODE
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
c.
f.
F 1 F 2
DISPL
PREV
MODE
MAINT
NO.01 :
log speed
NO.01 :
real speed
NO.02 :
log speed
NO.10 :
real speed
Enter 1,2,4,
and 8 in this
order from
the numeric
keypad.
Press the
‘ENT’ key.
Press the
‘ENT’ key.
Enter 1,2,5,
and 3 in this
order from
the numeric
keypad.
Alteration of data
