YOKOGAWA EML500 Series User Manual

6-5
IM80B80T10E 21th Edition : Jul.1,2007-00
< 6.INSTALLATION >

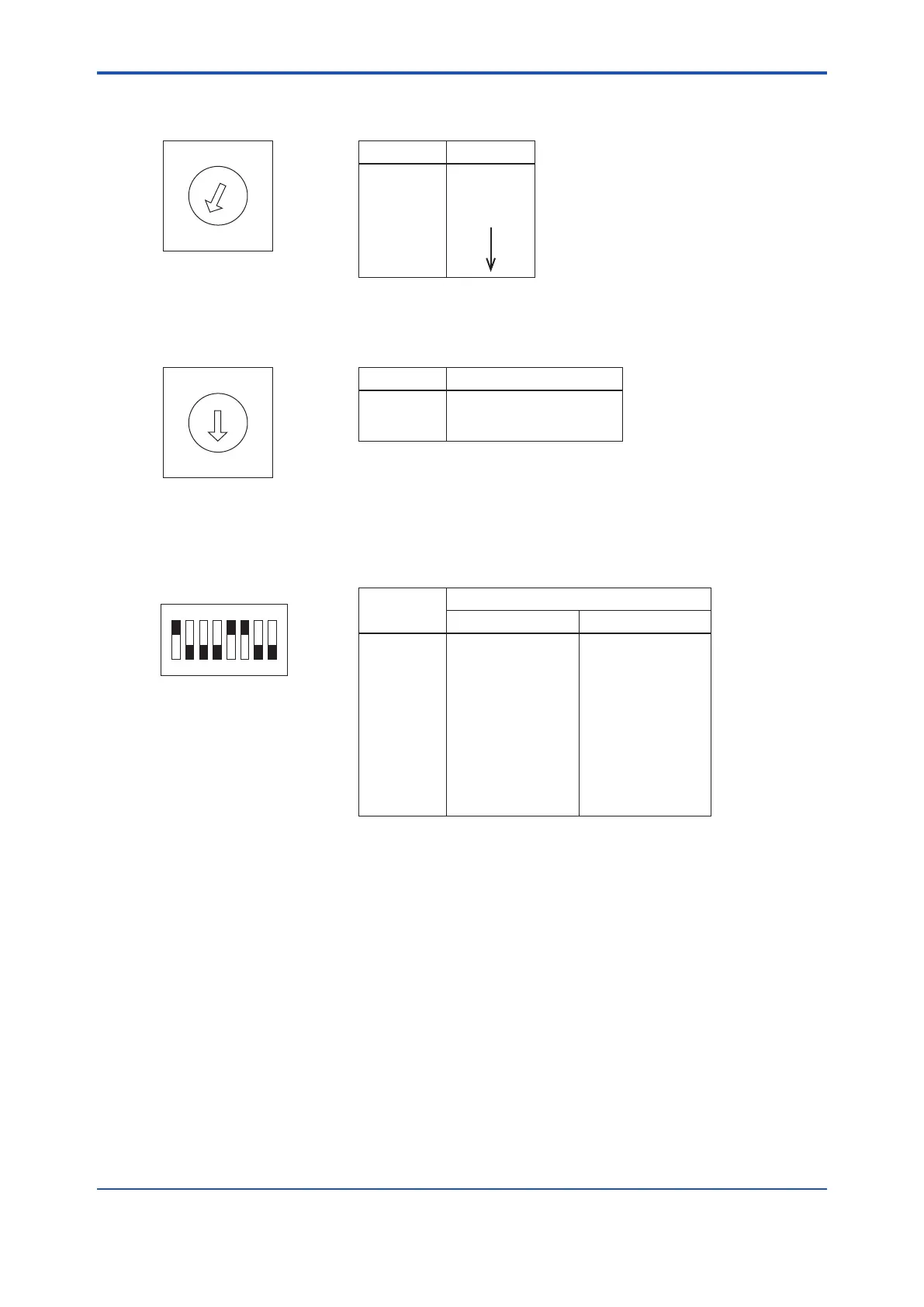

 SW 2 baud rate setting (between the master indicator and speed indicator)
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
SW No. Baud rate
0 9600 bps
1 4800 bps (Factory setting)
2
·
F
 SW4 Analog output setting
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Procedure of selection vide 6.7
SW No. Analog output
0
(a) of 2-3 (7)

1
(b) of 2-3 (7)

 SW11 Output setting of TB1-11,12
ON
1 2 3 4 5 6 7 8
When connection the indicator
LR522, set SW11
SW No.
LR522
NOT CONNECT CONNECT
1 OFF ON
2 ON OFF
3 ON OFF
4 OFF OFF
5 OFF ON
6 OFF ON
7 OFF OFF
8 ON OFF
