YOKOGAWA EML500 Series User Manual

6-17
IM80B80T10E 21th Edition : Jul.1,2007-00
< 6.INSTALLATION >

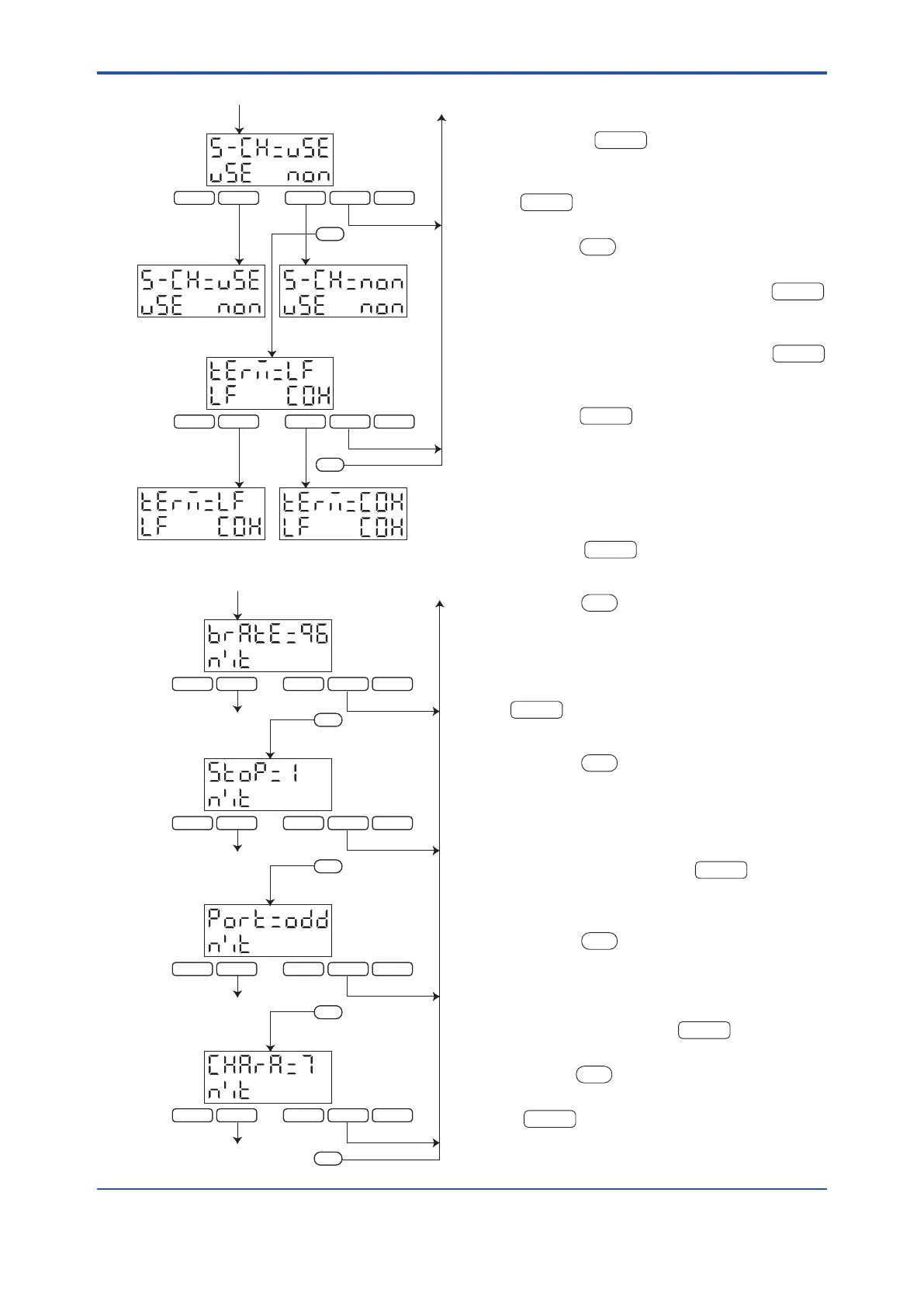

The display marked h asks whether cheksum is used
or not. Press the
F 1
key (USE) to select the use
of checksum. The display them changes to that
marked i.
If the
F 2
key (NON) is pressed, checksum is not
used and the display changes to that marked j.
Pressing the
ENT
key while the display is at h, i,
or j allows the display to advance to k.
To select CR,LF as a terminator, press the
F 1
key (LF) while the display is at k.
The display then changes to that marked l. To se-
lect code C0h as a terminator, press the
F 2
key (C0h) instead. The display then changes to
that marked m.
Pressing the
PREV
key while the display is at b
to m allows the display to return to a.
At n, set the baud rate.
Note 1: the values '96','48',and '24' appear one
after the other in this order (96,48,24,96,48,....)
each time the
F 1
key (NXT) is pressed.
96:9600; 48:4800; 24:2400
Pressing the
ENT
key allows the display to ad-
vance to o.
At o, set the number of stop bits.
Note: 2 The values '1', '15', and '2' appear one after
the other in this order (1,15,2,1,15,.....) each time
the
F 1
key (NXT) is pressed.
15: 1.5 bits
Pressing the
ENT
key allows the display to ad-
vance to p.
At p, set the parity bits.
Note 3: The values 'ODD','EVN,' and 'NON' appear
one after the other in this order (ODD, EVN, NON,
ODD, EVN.....) each time the
F 1
key (NXT)
is pressed.
ODD : odd; EVN : even; NON : none
Pressing the
ENT
key allows the display to ad-
vance to q.
At q, set the character length.
Note 4: The values '7' and '8' appear alternately
(7,8,7,8,.....) each time the
F 1
key (NXT) is
pressed.
Pressing the
ENT
key allows the display to return
to a.
If the
PREV
key is pressed while the display is at
n to q, the display returns to a.
F 1 F 2
DISPL
PREV
MODE
MAINT
i.
k.
h.
j.
F 1 F 2
DISPL
PREV
MODE
MAINT
l. m.
ENT
ENT
From g. To a.
F 1 F 2
DISPL
PREV
MODE
MAINT
i.
k.
h.
j.
F 1 F 2
DISPL
PREV
MODE
MAINT
l. m.
ENT
ENT
From g. To a.
F 1 F 2
DISPL
PREV
MODE
MAINT
o.
p.
q.
n.
F 1 F 2
DISPL
PREV
MODE
MAINT
ENT
ENT
F 1 F 2
DISPL
PREV
MODE
MAINT
ENT
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
ENT
From a.
Note 1
Note 2
Note 3
Note 4
To a.
F 1 F 2
DISPL
PREV
MODE
MAINT
o.
p.
q.
n.
F 1 F 2
DISPL
PREV
MODE
MAINT
ENT
ENT
F 1 F 2
DISPL
PREV
MODE
MAINT
ENT
MAINT
F 1 F 2
DISPL
PREV
MODE
MAINT
ENT
From a.
Note 1
Note 2
Note 3
Note 4
To a.
