JOHNSON CONTROLS

105

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

FORM 102.20-N1

ISSUE DATE: 7/06/2016

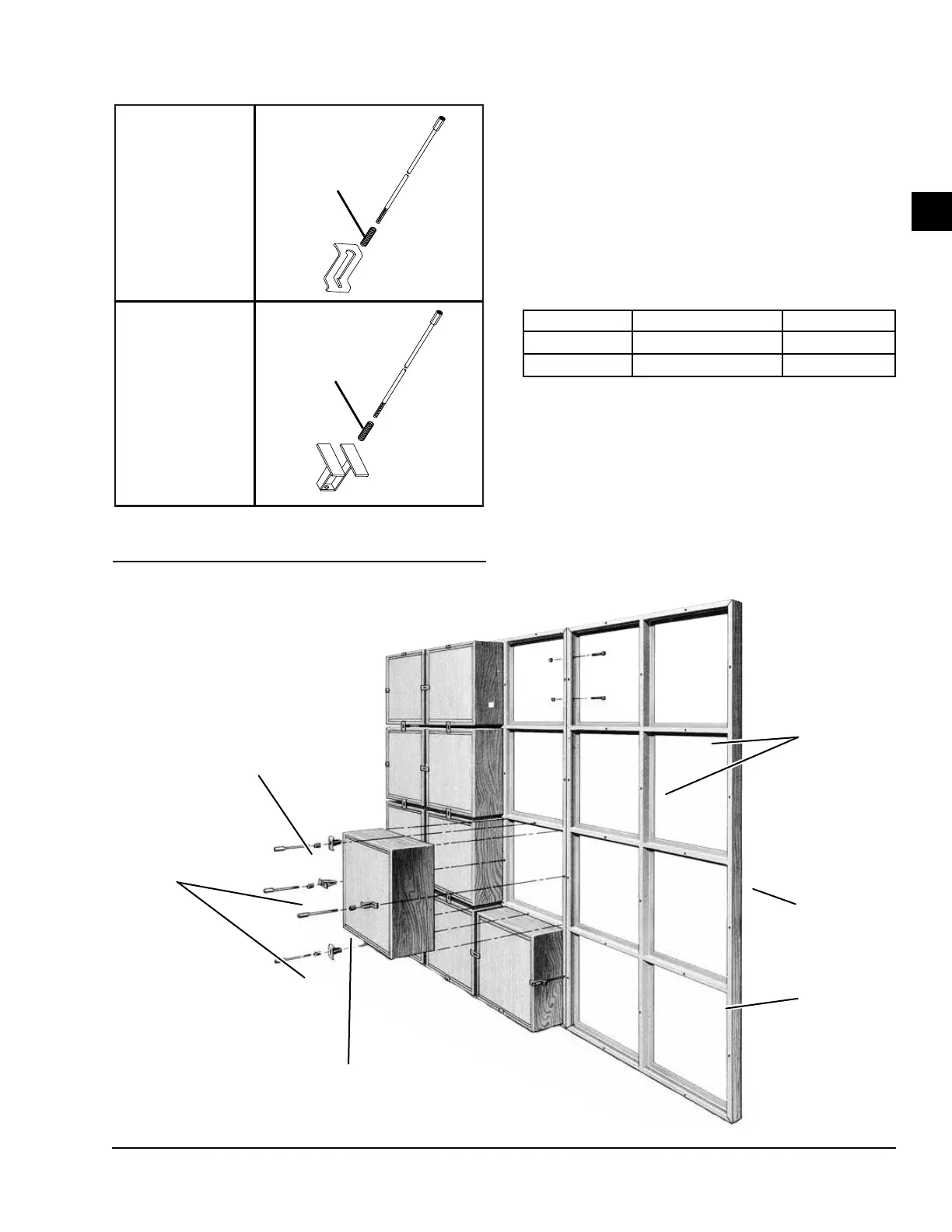

FIGURE 168 - VISUAL CONTROL FILTER CLAMPS

LD06678

11-1/2 in Astrocel HCX

Single Filter

Clamps

(Perimeter)

Double Filter

Clamps

(T. Section)

Red

Silver

TABLE 8 - VISUAL CONTROL FILTER CLAMPS

FOR HEPA FILTERS

PART NUMBER LATCH MODEL NUMBER LENGTH (L)

029-22081-000 Latch, HEPA Single 11-1/2 in

029-22082-000 Latch, HEPA Double 11-1/2 in

DOUBLE FILTER

CLAMPS

DOUBLE

FILTER

CLAMPS

FIGURE 169 - INSTALLING HEPA FILTER

LD09657

T-SECTIONS

SINGLE FILTER

CLAMP

PERIMETER

SECTION

T-SECTION
