York SOLUTION XTI Series - FIGURE 23 - Bottom Raceway Shipping Split Fastener Pack (P;N 386-03418-000); FIGURE 24 - Base Rail Shipping Split Fastener Pack (P;N 386-03417-000); FIGURE 25 - Top Raceway Bracket Assembled (P;N 386-04747-000); FIGURE 26 - Neoprene Gasket - 1;4 In. X 2 In. X 25 Ft (P;N 028-11883-010)

JOHNSON CONTROLS
31
SECTION 3 - HANDLING, STORAGE, AND INSTALLATION
FORM 102.20-N1
ISSUE DATE: 7/06/2016
3
Raceway Lifting Lug at
Shipping Split Before
Assembly
Assembled Raceway
Lifting Lugs
3/8 x 1-1/2 in. Bolt
3/8 in. Nut
3/8 in. Flat
Washer
3/8 in. Lock
Washer

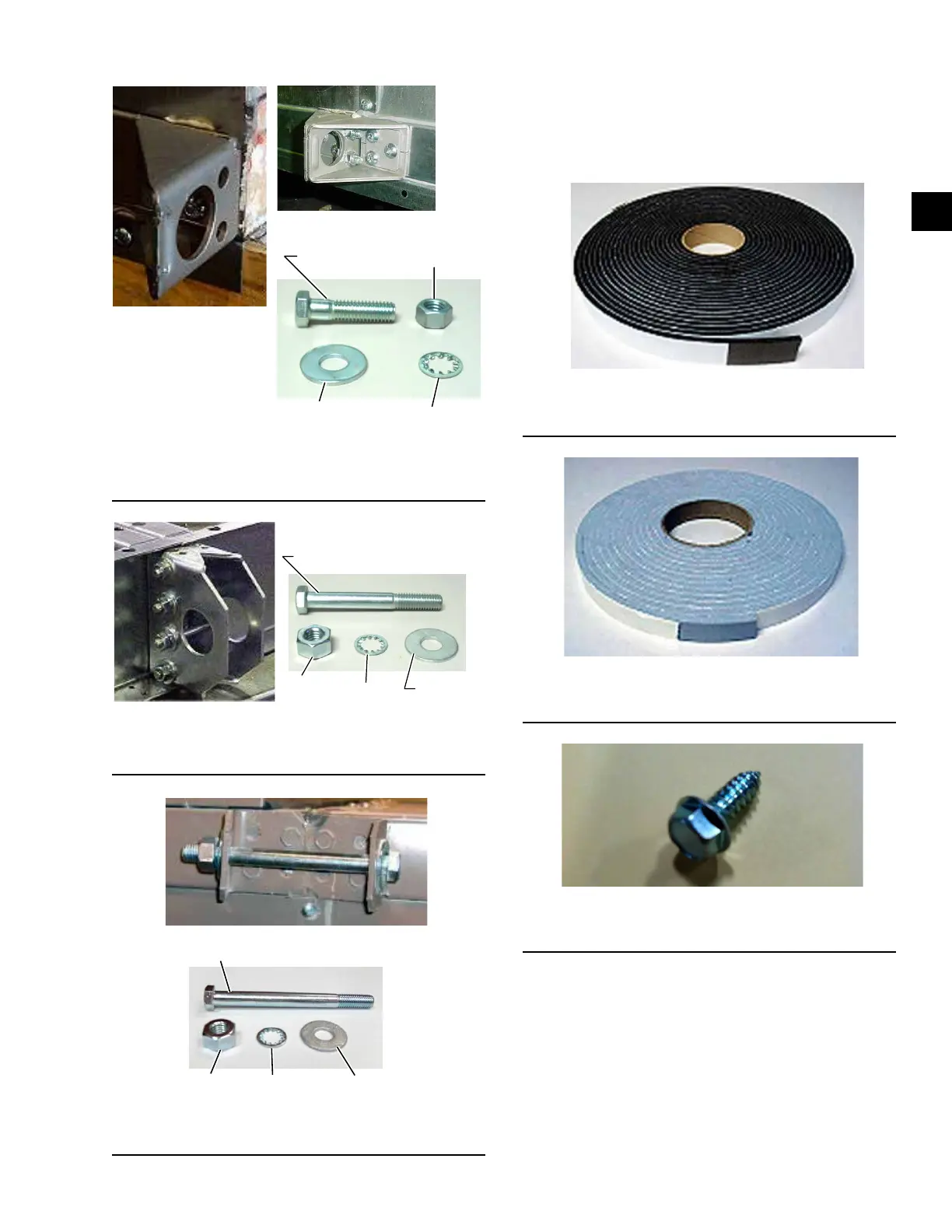

FIGURE 23 - BOTTOM RACEWAY SHIPPING SPLIT
FASTENER PACK (P/N 386-03418-000)
LD11030a
Baserail Lifting Lugs Assembled
1/2 in. Flat
Washer
1/2 in. Lock
Washer
1/2 x 5-1/2 in. Bolt
1/2 in. Nut
FIGURE 24 - BASE RAIL SHIPPING SPLIT
FASTENER PACK (P/N 386-03417-000)
LD11032a
1/2 x 5-1/2 in. Hex Cap Screw (2)
0.56 in. ID x 1.38 in. OD
Flat Washer (2)
Lock Washer (2)
1/2 in. Hex Nut
Raceway Lifting Lugs Assembled
FIGURE 25 - TOP RACEWAY BRACKET
ASSEMBLED (P/N 386-04747-000)
LD13349
Pipe Chase, Hoods and Seam Caps
Use the following parts to install the seam cap(s), pipe
chase(s), and hood(s) as shown in Figure 32 on page
32 through Figure 34 on page 33.
FIGURE 26 - NEOPRENE GASKET - 1/4 IN. X 2 IN.
X 25 FT (P/N 028-11883-010)
LD116508
FIGURE 27 - NEOPRENE GRAY GASKET - 1/4 IN X
3/4 IN X 35 FT (P/N 028-11873-010) FOR DOOR
LD116510
FIGURE 28 - PHILLIPS HEX HEAD SCREW
(P/N 021-32268-011) FOR INDOOR UNIT SEAM CAP
LD116510
