York SOLUTION XTI Series - FIGURE 81 - UV Control Panel Wiring (Greater than 8 Amps)

York SOLUTION XTI Series

108 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

JOHNSON CONTROLS

54

FORM 102.20-N1

ISSUE DATE: 7/06/2016

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

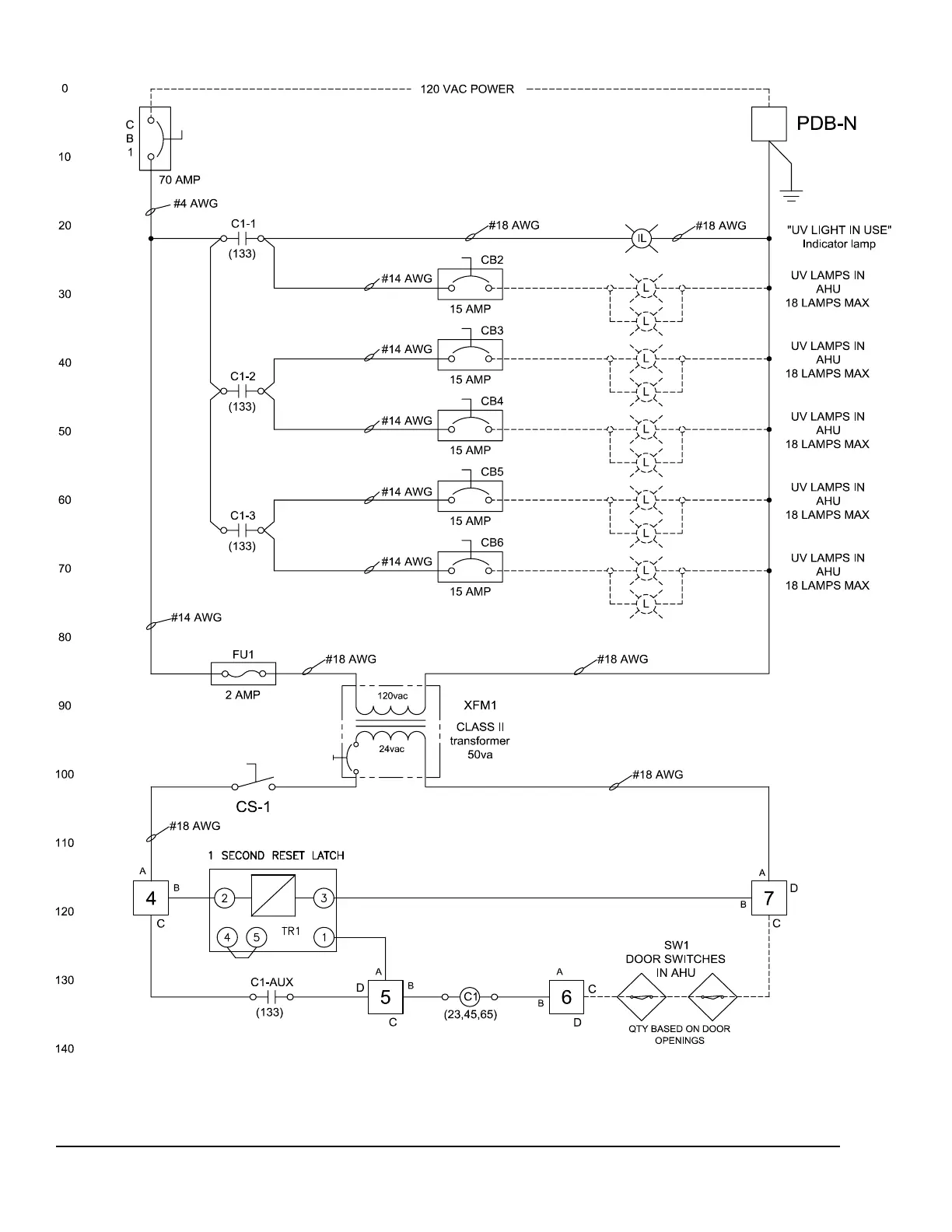

FIGURE 81 - UV CONTROL PANEL WIRING (GREATER THAN 8 AMPS)
