York SOLUTION XTI Series - FIGURE 55 - Assembly of End Channel Shipping Split with a Solution XT Expanded Cabinet

JOHNSON CONTROLS
40
FORM 102.20-N1
ISSUE DATE: 7/06/2016
SECTION 3 - HANDLING, STORAGE, AND INSTALLATION
FASTENER
PACK (P/N 386-
03419-000)
SHIPPING
BRACKETS
HEAT WHEEL
SEGMENT

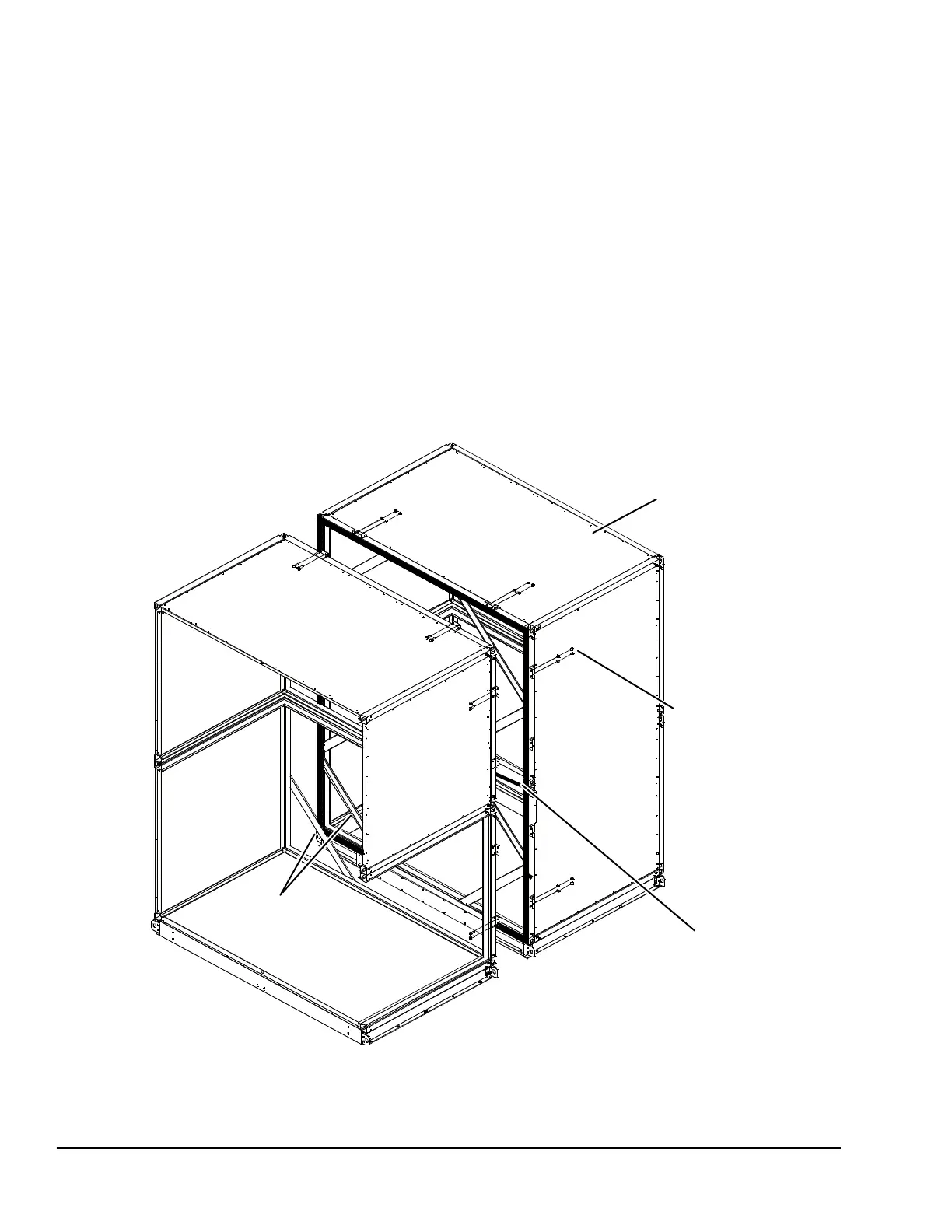

FIGURE 55 - ASSEMBLY OF END CHANNEL SHIPPING SPLIT WITH A SOLUTION XT EXPANDED CABINET
LD14262a
INTERMEDIATE
RACEWAY
3. Apply the neoprene gasket to all raceway mating
surfaces of one mating section. On large AHUs,
install two gaskets side by side on intermediate
raceway surfaces.
4. Make sure that the sections are not racked and will
line up properly.
5. Attach the sections as follows:
a. Make sure assembly surface is clean and lev-
el to allow the sections to slide freely. If the
surface is irregular, use as many metal shims
under sections as necessary to align mating
surfaces.
b. Pull the sections together, using a come-a-
long.
c. Attach the sides of the sections. Beginning
at the bottom of the sections, secure the end
channel assembly brackets together using
fastener pack (P/N 386-03419-000) at each
bracket. Continue securing the end channel
assembly brackets together, working from
bottom to top, pulling the sections tight.
d. After the sides are secured, secure the brack-
ets on top of the AHU with the same brackets
mentioned in Step 3.
