York SOLUTION XTI Series - FIGURE 119 - Hot Water Piping with 2-Way Valve Example (Not for Construction); FIGURE 120 - Hot Water Piping with Diverting Valve Example (Not for Construction)

To Next Page

To Previous Page

JOHNSON CONTROLS

FORM 102.20-N1

ISSUE DATE: 7/06/2016

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

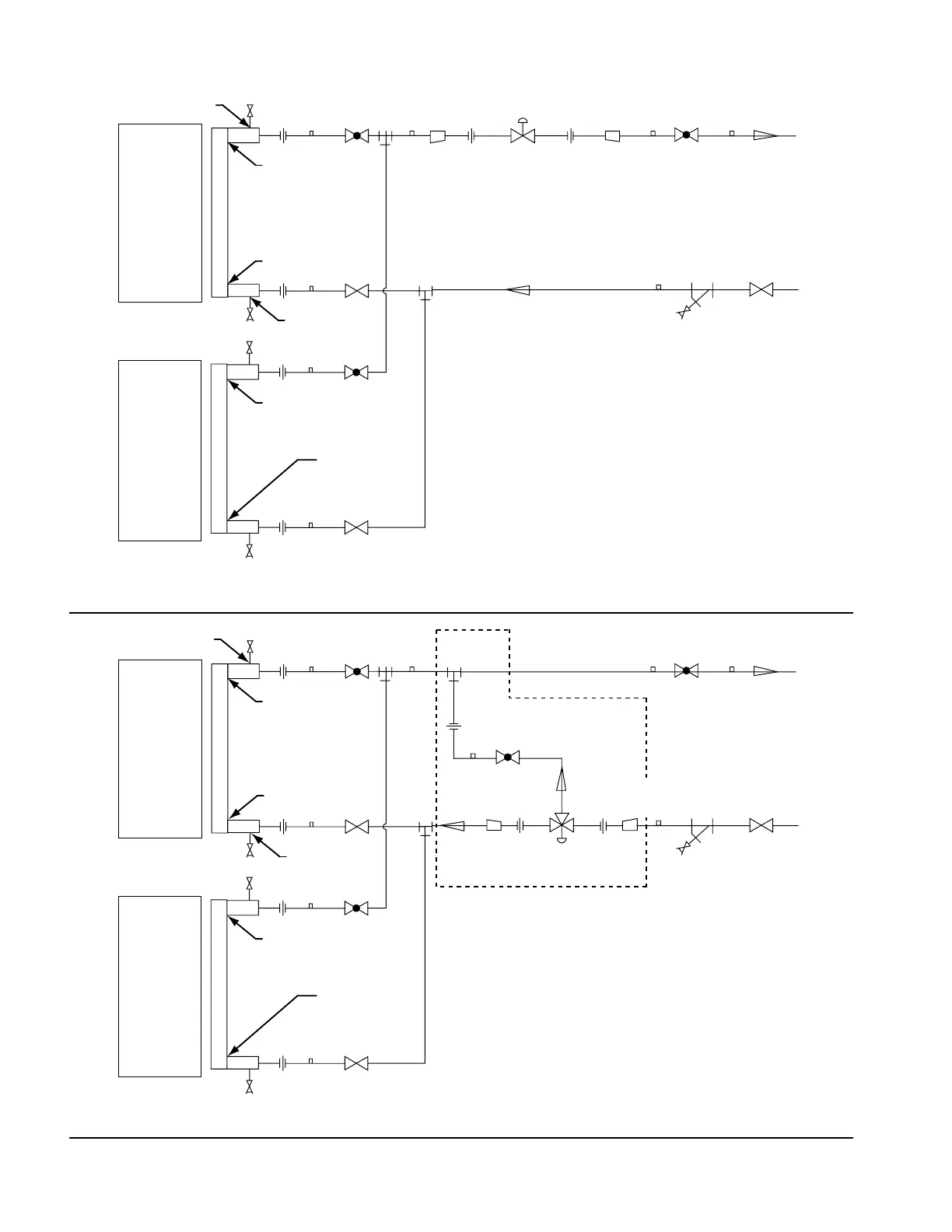

FIGURE 119 - HOT WATER PIPING WITH 2-WAY VALVE EXAMPLE (NOT FOR CONSTRUCTION)

LD13791

VENT

RETURN

SUPPLY

COIL

PLUG

DRAIN

UNION

GLOBE

VALVE

GATE

VALVE

PLUG

GATE VALVE W/

HOSE BIB

GLOBE

VALVE

HOT

WATER

SUPPLY

HOT

WATER

RETURN

2 WAY CONTROL VALVE

ECCENTRIC

REDUCER

STRAINER

SUPPLY

VENT

RETURN

SUPPLY

COIL

PLUG

DRAIN

UNION

GLOBE

VALVE

GATE

VALVE

PLUG

GATE VALVE W/

HOSE BIB

GLOBE

VALVE

HOT

WATER

SUPPLY

HOT

WATER

RETURN

3 WAY CONTROL

DIVERTING VALVE

1 Inlet, 2 Outlets

ECCENTRIC

REDUCER

STRAINER

SUPPLY

FIGURE 120 - HOT WATER PIPING WITH DIVERTING VALVE EXAMPLE (NOT FOR CONSTRUCTION)

LD13792

UNION

REDUCING

TEE
