York SOLUTION XTI Series - FIGURE 125 - Hot Water Piping for IFB

York SOLUTION XTI Series

108 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

JOHNSON CONTROLS

81

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

FORM 102.20-N1

ISSUE DATE: 7/06/2016

3

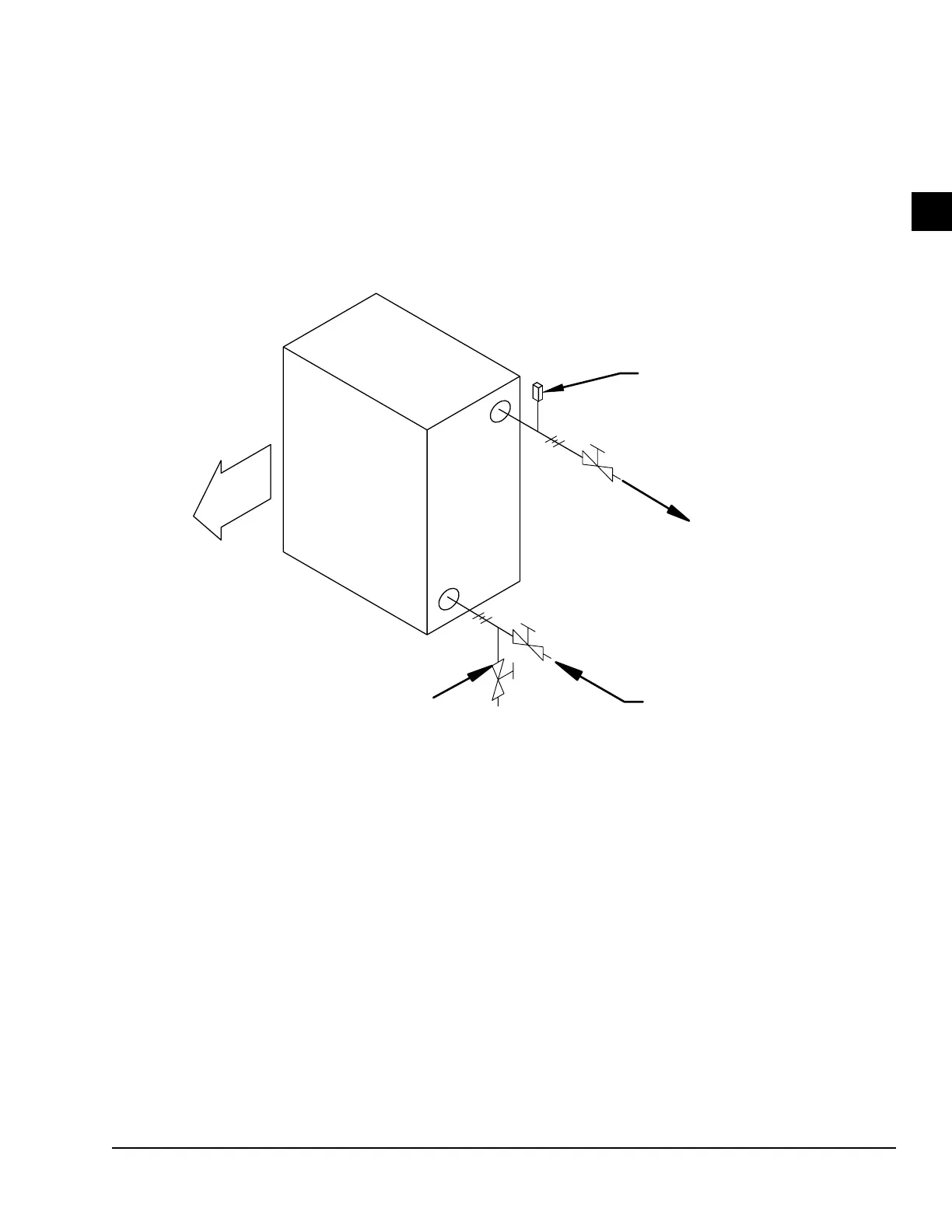

FIGURE 125 - HOT WATER PIPING FOR IFB

LD09633

3/4 in (19.1 mm)

AUTOMATIC

AIR VENT IN

TOP HEADER

HOT WATER

RETURN

HOT WATER

SUPPLY

DRAIN

AIR

FLOW
