SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

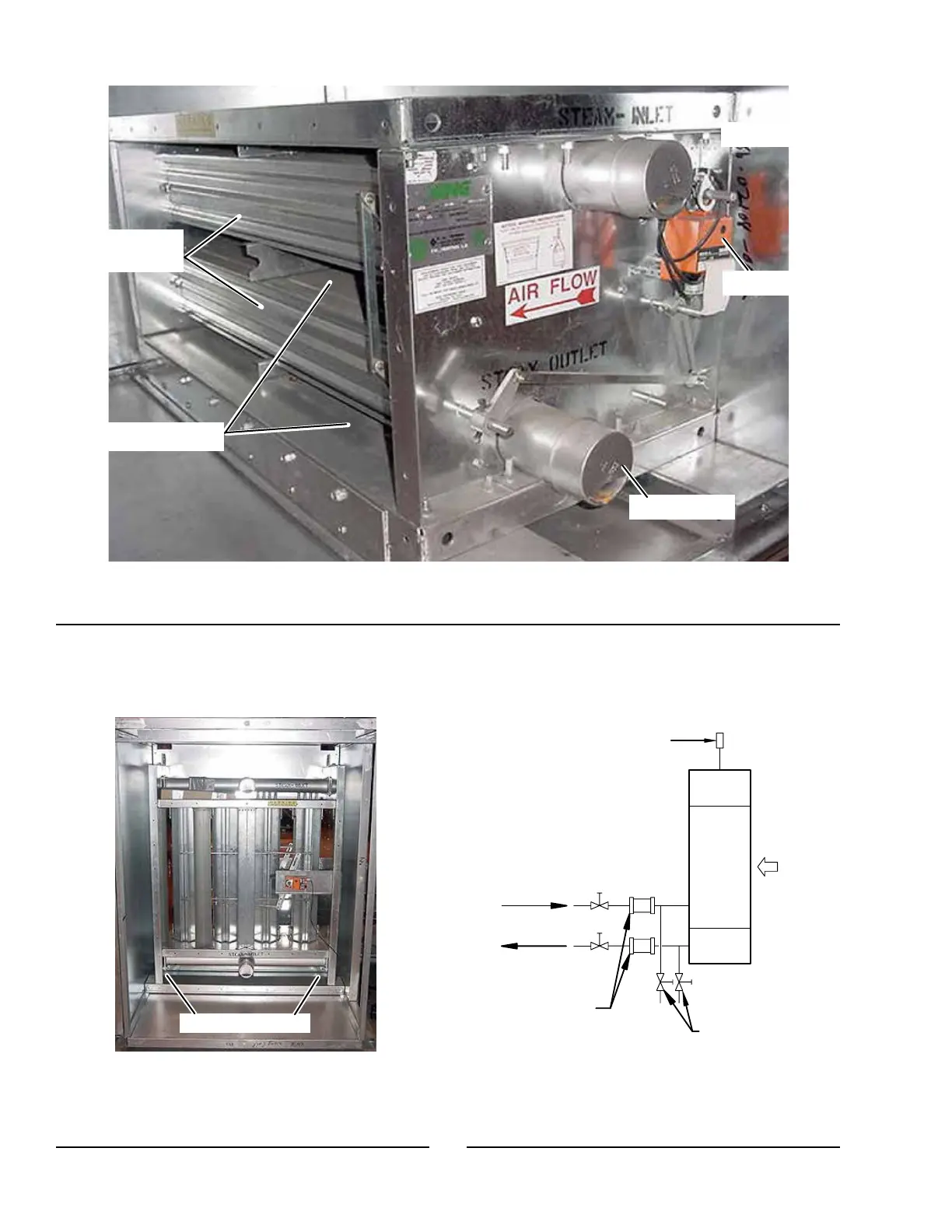

FIGURE 122 - IFB COIL (HORIZONTAL TUBES AVAILABLE WITH STEAM AND HOT WATER)

LD09630

FACE DAMPERS

CLOSED

BYPASS OPEN

STEAM IN

STEAM OUT

ACTUATOR

FIGURE 123 - VIFB COIL (FACE-MOUNTED

ACTUATOR SHOWN)

LD09631

SHIPPING BOLTS

FIGURE 124 - HOT WATER PIPING SCHEMATIC

FOR 2-ROW COIL VIFB

LD09632

HOT WATER

SUPPLY

HOT WATER

RETURN

FLEXIBLE

CONNECTOR

DRAINS

AIR

FLOW

VIFB

COIL

3/4 in (19.1 mm)

AUTOMATIC

AIR VENT IN

TOP HEADER
