Zebra DS2208 Product Reference Guide

6 - 18 DS2208 Digital Scanner Product Reference Guide
TGCS (IBM) USB Specification Version
Select IBM Specification Level Version 0 (Original) to send the following code types as Unknown:
• Data Matrix
• GS1 Data Matrix
• QR Code
• GS1 QR
• MicroQR Code
• Aztec
Select IBM Specification Level Version 2.2 to send the code types with the appropriate IBM identifiers.
ASCII Character Sets for USB
See Appendix I, ASCII Character Sets for the following:
• ASCII Character Set (Table I-1 on page I-1)
• ALT Key Character Set (Table I-2 on page I-6)
• GUI Key Character Set (Table I-3 on page I-7)
• F Key Character Set (Table I-5 on page I-10).

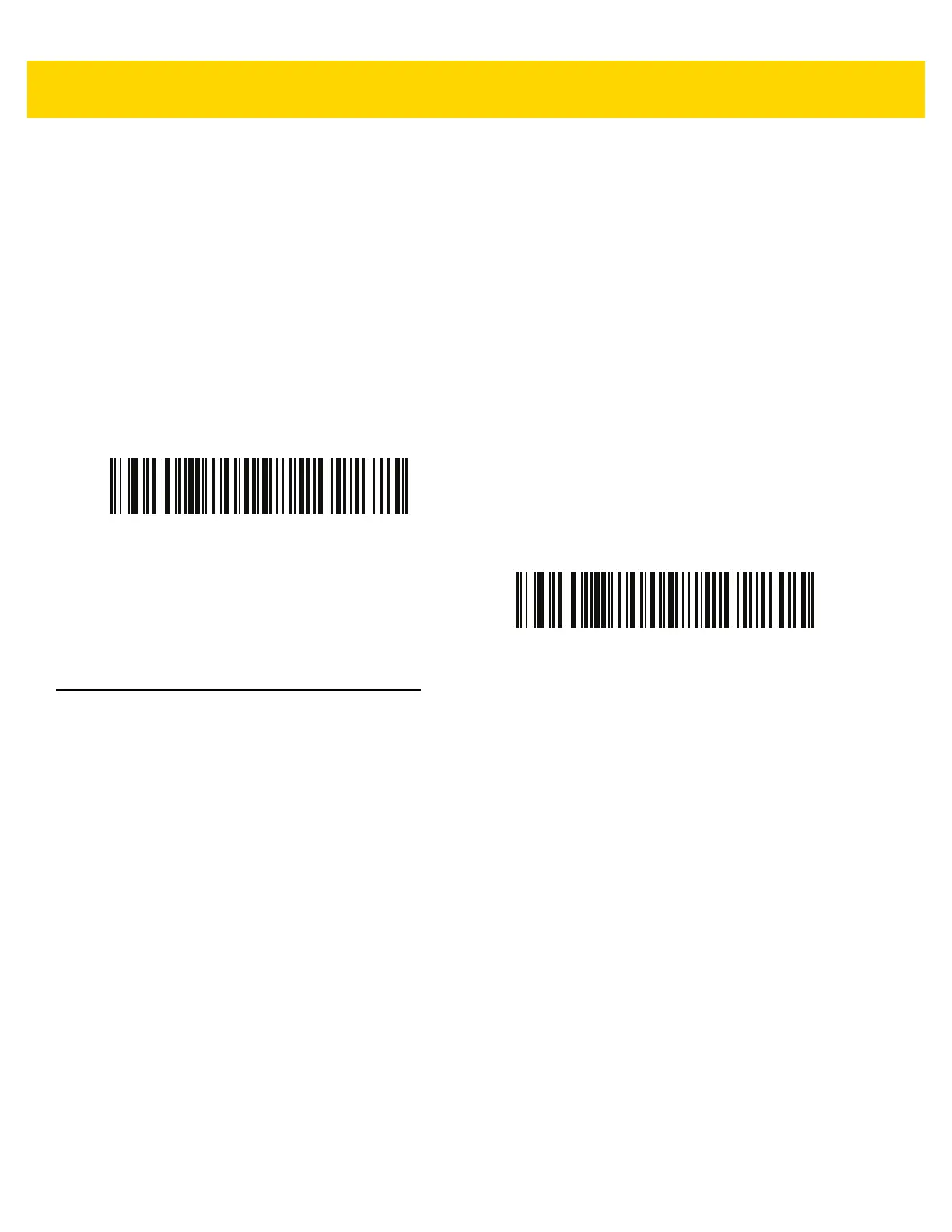

IBM Specification Level Version 0 (Original)
*IBM Specification Level Version 2.2

Zebra DS2208 Specifications

General

Type	Handheld bar code reader
Wavelength	645 nm
Sensor type	LED
Scanner type	1D/2D
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	13
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
Optical sensor resolution (W x H)	640 x 480 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Connectivity technology	Wired
Certification	EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Product color	Black
LED indicators	Yes
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS
Cables included	Micro-USB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery life	100 h
Battery capacity	2400 mAh
Power consumption	250 mA
Power source type	DC
AC adapter output voltage	5 V
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	99 mm
Width	66 mm
Height	165 mm
Weight	161.6 g
