Zebra DS2208 Product Reference Guide

xviii DS2208 Digital Scanner Product Reference Guide
• bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
• Throughout the programming bar code menus, asterisks (*) are used to denote default parameter settings.
Related Documents
• DS2208 Series Quick Start Guide, p/n MN-002873-xx - provides general information for getting started with
the DS2208 digital scanner, and includes basic set up and operation instructions.
• Advanced Data Formatting Programmer Guide, p/n 72E-69680-xx - provides information on ADF, a means of
customizing data before transmission to a host.
• Attribute Data Dictionary, p/n 72E-149786-xx defines attribute numbers (device configuration parameters,
monitored data, and born-on information) and describes management of various attribute domains for bar
code scanners and OEM engines.
• ToshibaTEC Programmer’s Guide, p/n MN-002707-xx - provides information on programming the Toshiba
TEC USB device type.
For the latest version of this guide and all guides, go to: www.zebra.com/support
.
Service Information
If you have a problem using the equipment, contact your facility's technical or systems support. If there is a
problem with the equipment, they will contact the Zebra Support & Downloads website at: www.zebra.com/support
.
When contacting support, please have the following information available:
• Serial number of the unit
• Model number or product name
• Software type and version number
Zebra responds to calls by e-mail, telephone or fax within the time limits set forth in service agreements.
If your problem cannot be solved by support, you may need to return your equipment for servicing and will be given
specific directions. Zebra is not responsible for any damages incurred during shipment if the approved shipping
container is not used. Shipping the units improperly can possibly void the warranty.
If you purchased your business product from a Zebra business partner, please contact that business partner for
support.

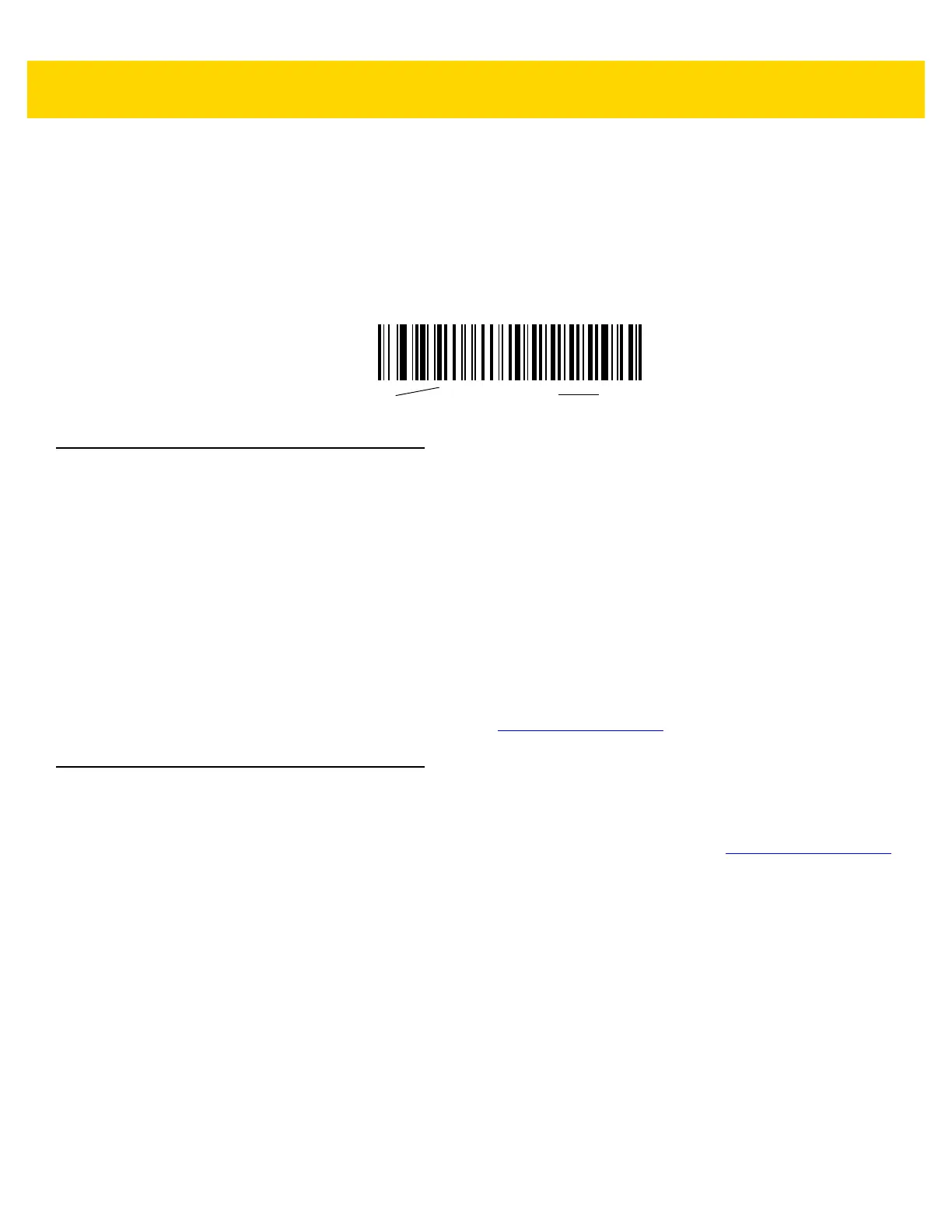

*Baud Rate 9600
Feature/Option
* Indicates Default

Zebra DS2208 Specifications

General

Type	Handheld bar code reader
Wavelength	645 nm
Sensor type	LED
Scanner type	1D/2D
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	13
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
Optical sensor resolution (W x H)	640 x 480 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Connectivity technology	Wired
Certification	EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Product color	Black
LED indicators	Yes
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS
Cables included	Micro-USB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery life	100 h
Battery capacity	2400 mAh
Power consumption	250 mA
Power source type	DC
AC adapter output voltage	5 V
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	99 mm
Width	66 mm
Height	165 mm
Weight	161.6 g
