11 - 96 DS2208 Digital Scanner Product Reference Guide

Japan Postal

Parameter # 290

SSI # F0h, 22h

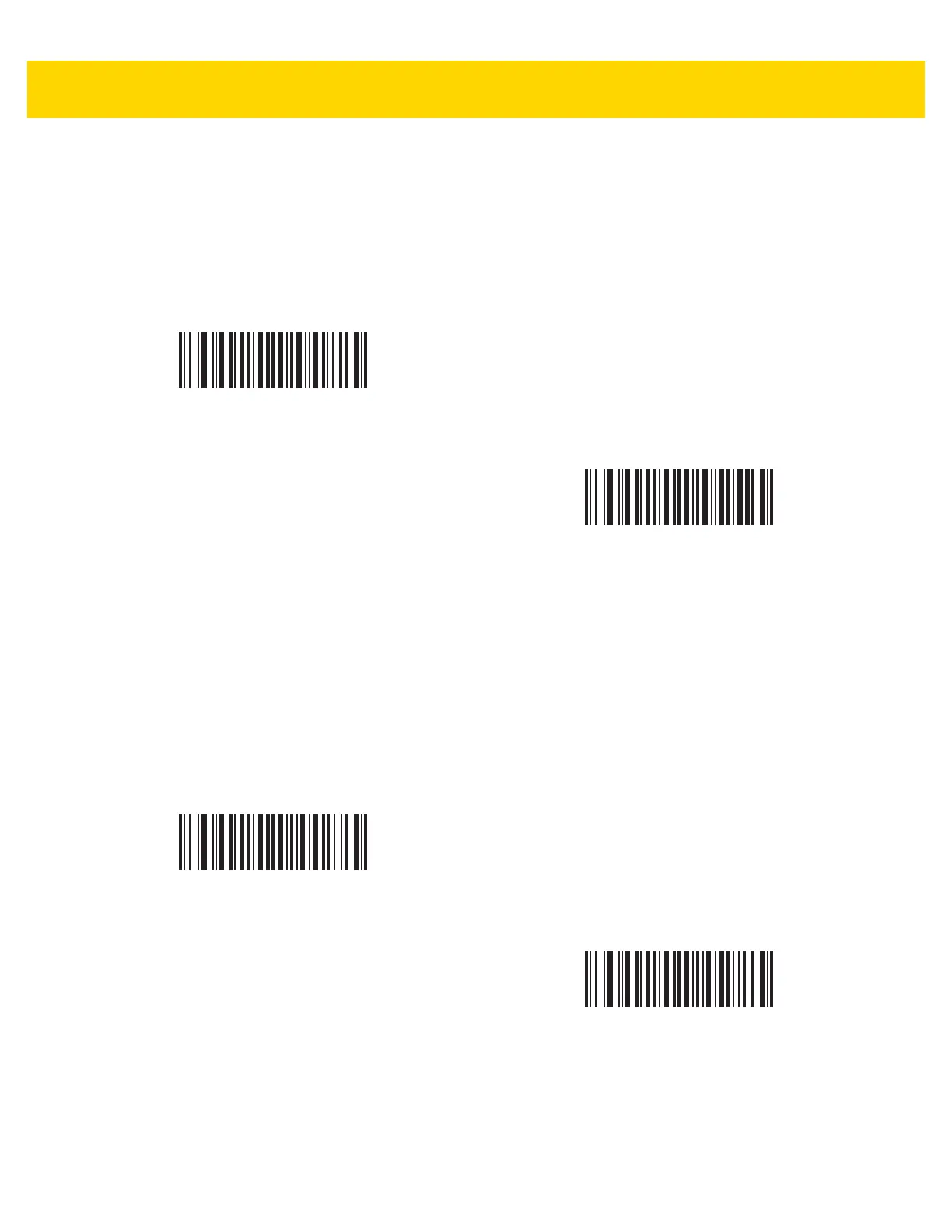

Scan one of the following bar codes to enable or disable Japan Postal.

Australia Post

Parameter # 291

SSI # F0h, 23h

Scan one of the following bar codes to enable or disable Australia Post.

Enable Japan Postal

(1)

*Disable Japan Postal

(0)

Enable Australia Post

(1)

*Disable Australia Post

(0)
