To install the EA3600 on a flat surface:
1. Unscrew the screws in the clips on either side of the EA3600. Remove the clips.

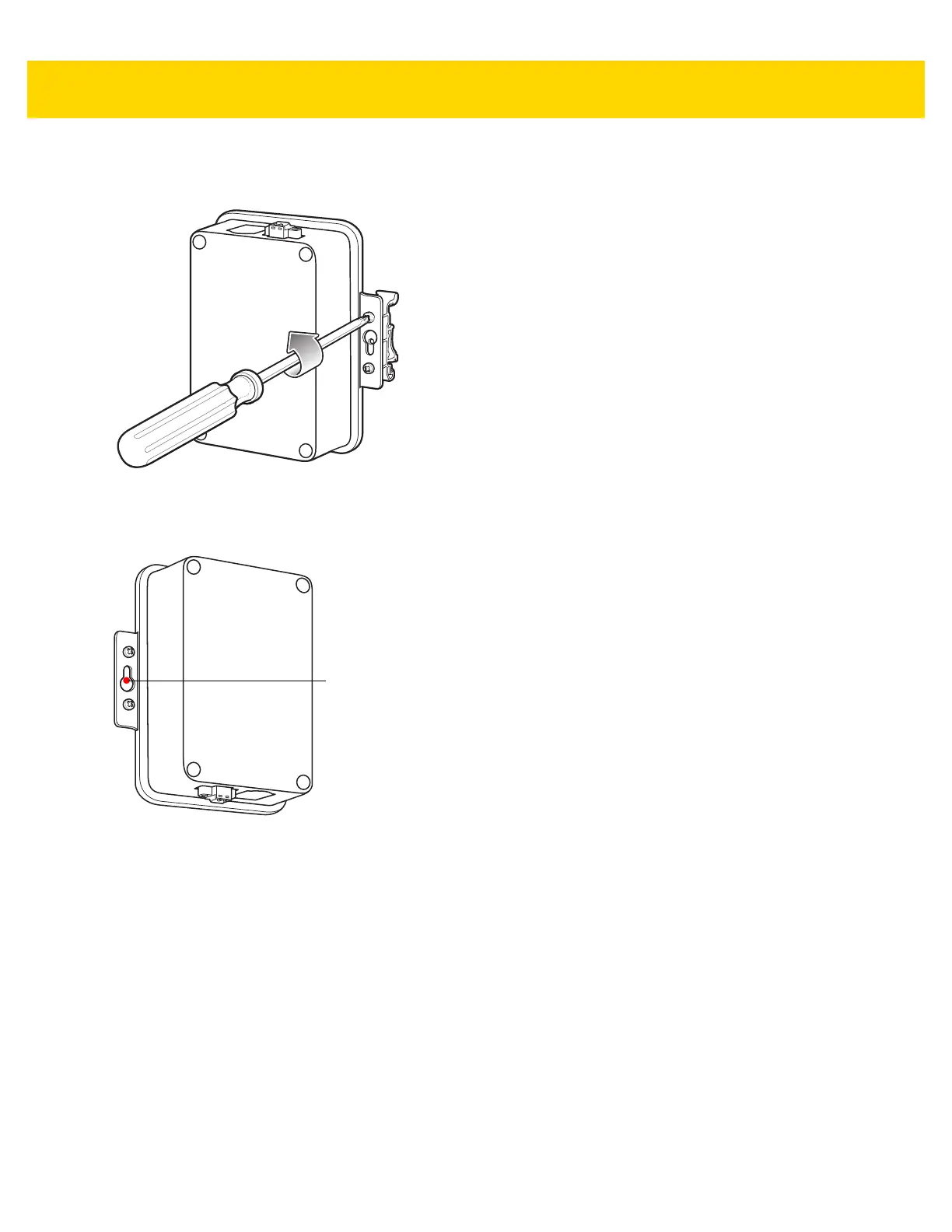

Figure 1-11 Unscrew the DIN Rail Clips
2. Find a mounting location, turn the EA3600 upside down so that the keyhole is in the mounting position, and
mark the surface as shown in Figure 1-12.
Figure 1-12 Keyhole Mounting Position
3. Drive the mounting screws into the marks.
