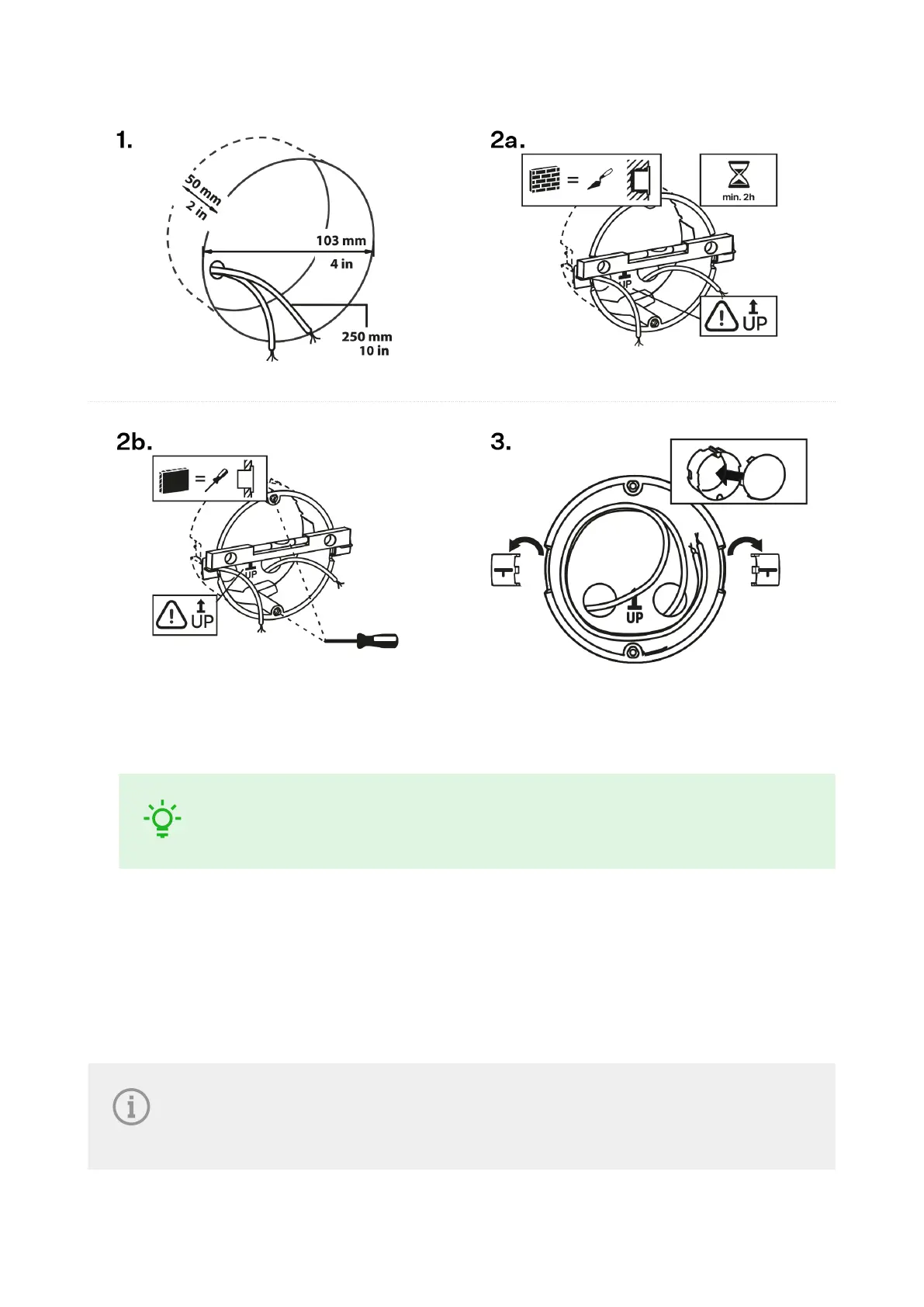

1. Cut a circular hole in the wall of the diameter of 103 mm and depth of 50 mm before installation. It is
assumed that all necessary cables of the maximum length of 25 cm will lead to the hole.
TIP
Download the Drilling template from 2N.com .
2. Put the flush mounting box in the hole to make sure that the hole is deep enough.
3. If the hole complies with the box size, wall in the box and level the box using a water level on the holding
clips.
4. When the mortar hardens, break off the clips and cap the box with the cover provided. Use anchoring
elements to fix the device into plasterboard.
To install 2N Indoor Compact into a flush mounting box, get a 2.5 mm hexagon key wrench, which is
included in the package.
NOTE
When installing 2N Indoor Compact into a wall, take the local standards related to installa-
tion of electrical devices on flammable material into consideration.
