2N Indoor Compact - Page 16

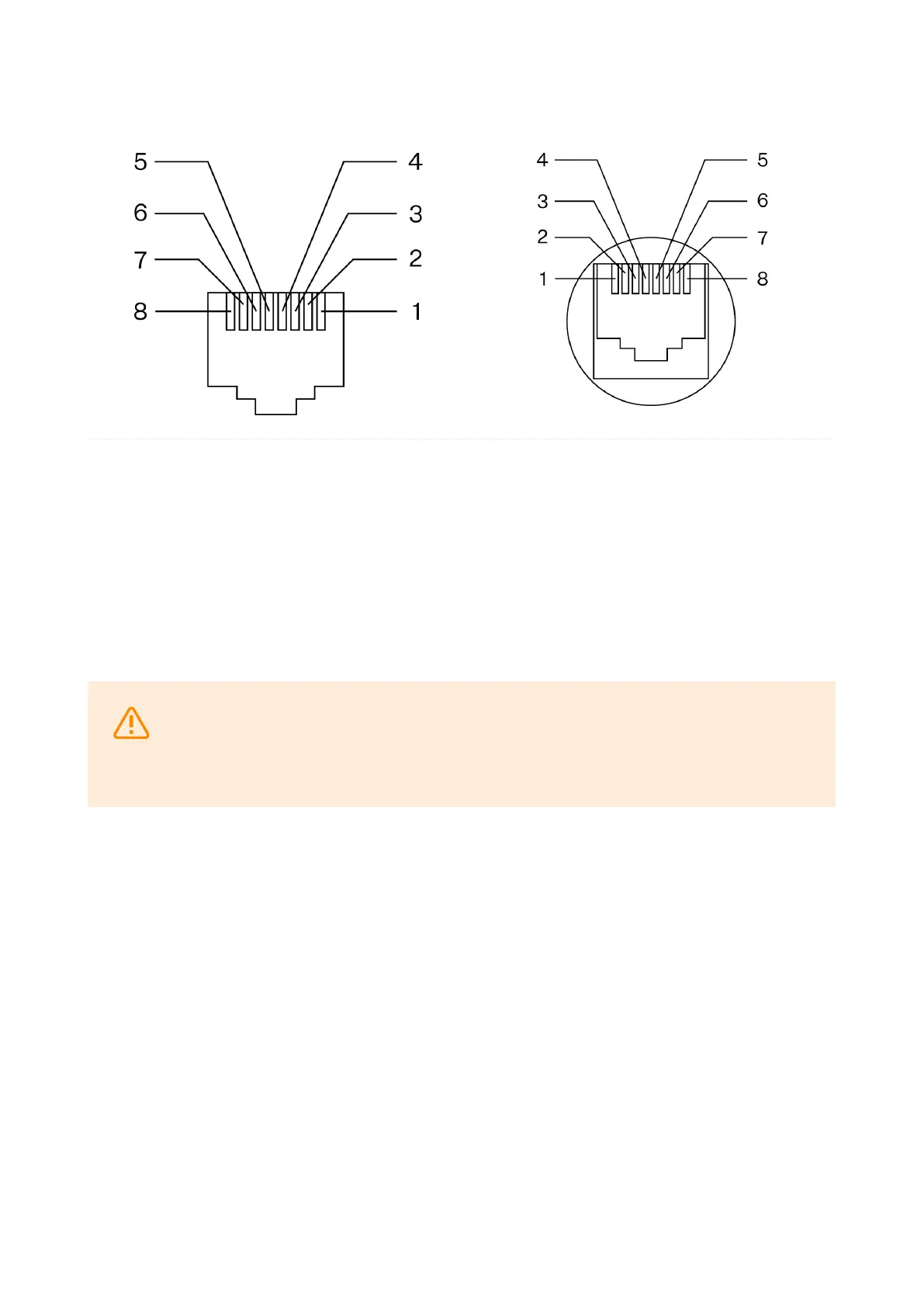

Figure 1. Ethernet cable connector Figure 2. Ethernet socket
1. Tx
2. Tx
3. Rx
4. unused
5. unused
6. Rx
7. unused
8. unused
WARNING
This device cannot be connected directly to telecom lines (or public wireless networks)
of any telecom service providers (i.e. mobile providers, landline providers or Internet provid-
ers). A router has to be used for the device Internet connection.
