Pannoramic SCAN II 2.2.0 User’s Guide 5.6.2 Service
• – Barcode settings
By predefining barcode type, foreground color ( black or white – the color of the barcode),
and other settings, you enable the Read Barcode option when using the control software.
To display an image of the barcode area, click . You can redefine the barcode
reading area by dragging the edges of the blue square. To check whether the barcode reading
settings are correct, display the barcode digits in the Barcode field by clicking . If the
label area is not correctly illuminated, adjust Barcode LED intensity value. Click to
check that barcode settings are correctly set. Click Reset barcode exposition time to load
default exposition time used for barcode reading.

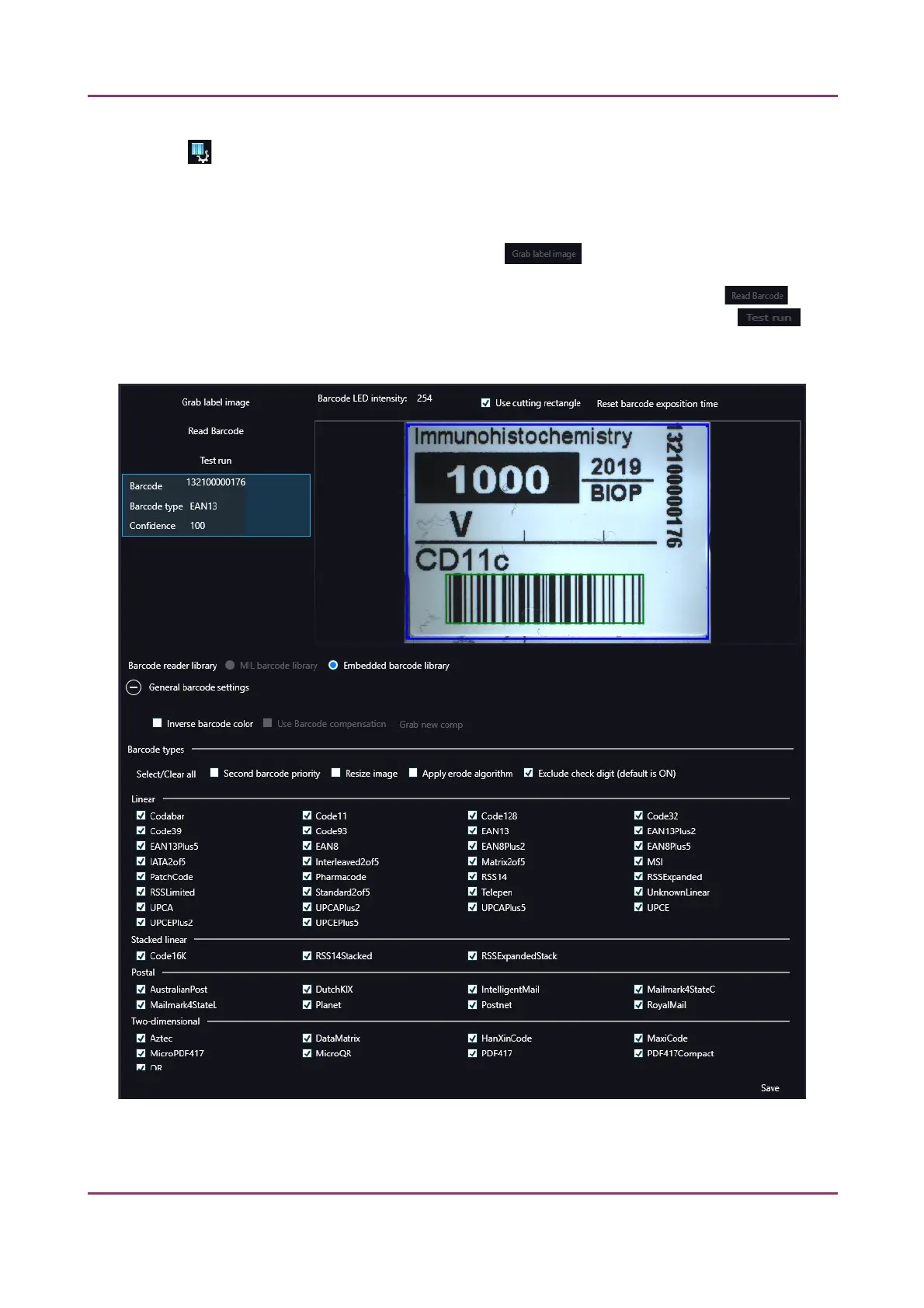

Figure 80 – Barcode settings
January 24, 2020 - Rev. 2 3DHISTECH Ltd. 127(156)
