Pannoramic SCAN II 2.2.0 User’s Guide 4.2 Main window functions

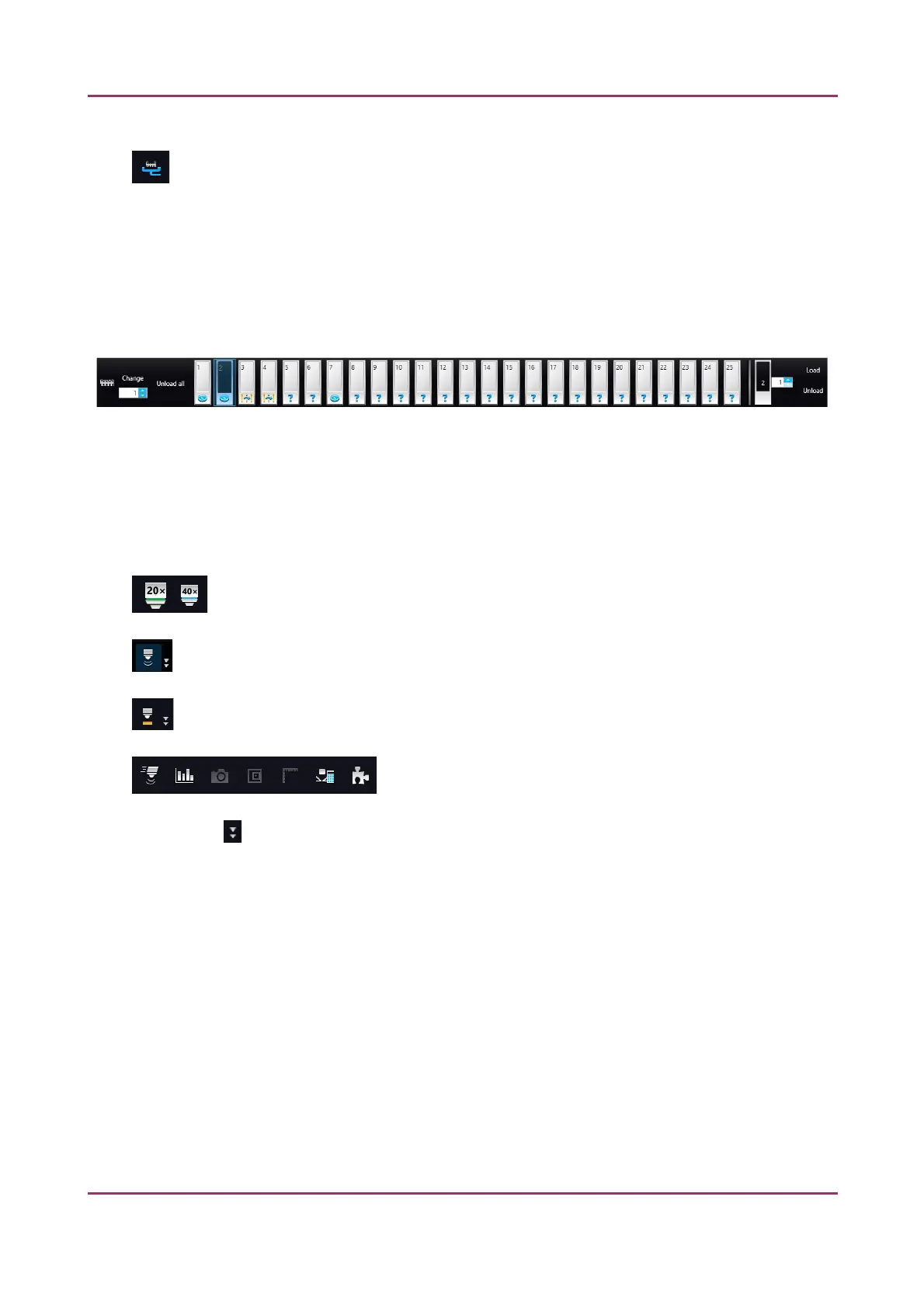

Slide/magazine control
Upon clicking the slide icon or entering slide position number at the right side and clicking
Load, the slide can be loaded.
Unload the slide by clicking Unload next to slide image, and unload the magazine by clicking
Unload all next to the rack image.
Set magazine number in the value box at the left of the control bar, then click Change to load
another magazine in the feeder.
If there is a lens marking at the bottom of the position preview in the magazine image, the
preview image of that slide has already been created, and if a question mark is displayed the
slide was not yet loaded. A slide that is loaded at the moment is highlighted with a blue
background and outer line.
Microscope objectives
Live view is on
Live view is on with the shutter closed
Toolbar for live images
Click to display the toolbar for Live view. These functions are only available for the
displayed live image (i. e. Live view is ON), but not available for camera images during
digitization.
When in Normal live mode, images are taken with the user-specified exposure time.
◦ One pixel on the monitor corresponds to one pixel on the camera
◦ The live image completely fills the display area
◦ Displays or hides the vertical and horizontal scale bars
◦ Displays the magnifier window
◦ Activates red marking on overexposed pixels
◦ Saves the current image as BMP or JPEG file
The following functions are available for you to select from the toolbar:
January 24, 2020 - Rev. 2 3DHISTECH Ltd. 37(156)
