48 78-8130-6150-0-F
6. TheoperatormayselectUser Editinorderto
‘type’themodification,orDelete Rowtoremove
theentirerowfromthetemplate,orselectShow
Alltodisplayalistofcommoncompressed
terms.
Note: Using a common compressed term requires
less memory in the marker.
7. Selectanoptionfromthelistbypressingtheup/
downarrows[SK].PressLocate/OK[5].

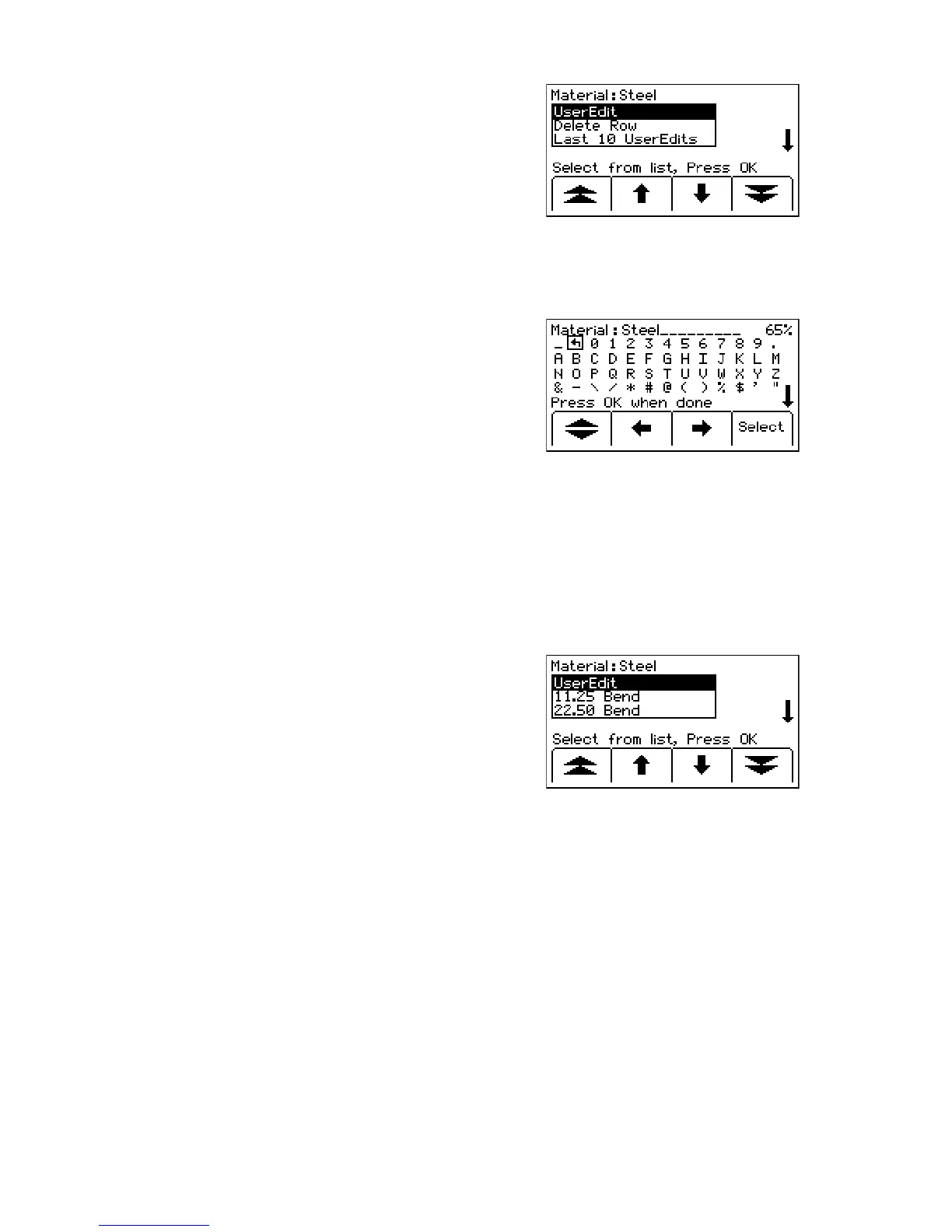

8. IfUser Editisselected,thefollowingdisplay
willappear.
9. Movetheboxedcursortothe‘backarrow’
andpressSelect[SK]todeletetheentrytobe
modified.
10. Movetheboxedcursorbypressingtheleft/right
arrows[SK],ortheUp/DownArrow[SK],to
movethecursortothenextrow.
11. PressSelect[SK]toenterthealphanumeric
character.
Entrywillappearatthetopofthedisplay.
12. PressLocate/OK [5]whenentryiscomplete.
13. IfShow Allisselected,thefollowingdisplay
willappear.
14. Selectacommoncompressedtermfromthelist
bypressingtheup/downarrows[SK].
15. PressLocate/OK [5].Themodificationwill
automaticallypopulatethemarkertemplate.
16. Reading iD Markers
TheoperatorcanretrievethedatafromtheiDmarkerbypressingRead[SK]onthe
MarkerLocatedisplay.
Thereceivertipshouldbeloweredtothegroundtoreachmaximumreaddepth.
Ifmorethanone3M
iDMarkerofthesameutilityisdetected,thereceiverwillread
thefirstmarkeranddisplaythedatafromthemarker.
