3M Dynatel 2250M User Manual

78-8130-6150-0-F 45

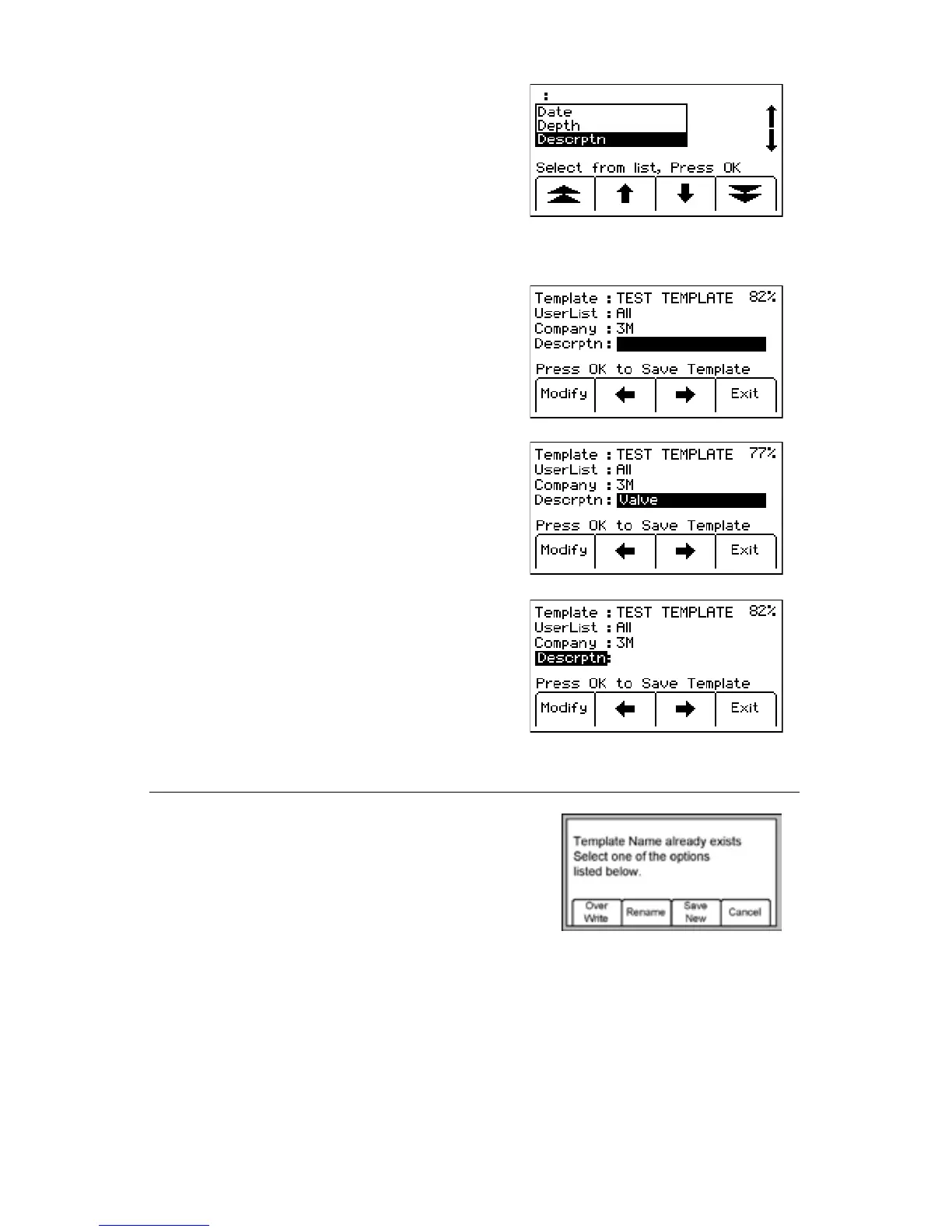

15. Populateasmanyfieldsaspossiblefrom
thedrop-downlistofcommon(compressed)
termsavailabletoconservemarkermemory
space,orchooseUserEdit ifatermisnot
foundtomeettheuser'srequirements.
Selecttermbypressingtheup/downarrows
[SK]andpressLocate/OK [5].
16. Navigatetothenextfieldbypressingthe
left/rightarrow[SK].
17. PressModify[SK]topopulatethe
highlightedfield.
18. Populateadditionalfields,asneeded,
usingtheaboveproceduresteps16and17.
TemplatesarelimitedtosixLabelandsix
Descriptionfields(256bitsofdatatotal).
19. Whenthetemplateiscomplete,savethe
templatebypressingLocate/OK [5].
B. Editing Templates
Theoperatorcanselectanexistingtemplateand
makechangestoitinthesamemannerdescribedin
Creating Templates.Thefollowingsavescreenwill
bedisplayed.
Over Write: Savesallmodificationsthathavebeenmadetotheoriginaltemplate.
Rename: Overwritestheoldtemplatewiththenewnameandallmodifications.Display
willreturntothetemplatenamefield.Modifythenameofthetemplateandpress
Locate/OK [5]tosave.
Save New: Createsanewtemplatecontainingallinformation.Originaltemplateremains
unchanged.Displaywillreturntothetemplatenamefield.Modifythenameofthe
templateandpressLocate/OK [5]tosave.
