Attaching the drive module to the LCL filter module
See Step-by-step drawings for an installation example of standard drive configuration in
Rittal VX25 800 mm wide enclosure (page 233).
Attaching the drive module and the LCL filter module to
the enclosure base
See Step-by-step drawings for an installation example of standard drive configuration in
Rittal VX25 800 mm wide enclosure (page 233).
Grounding the drive module and the LCL filter module

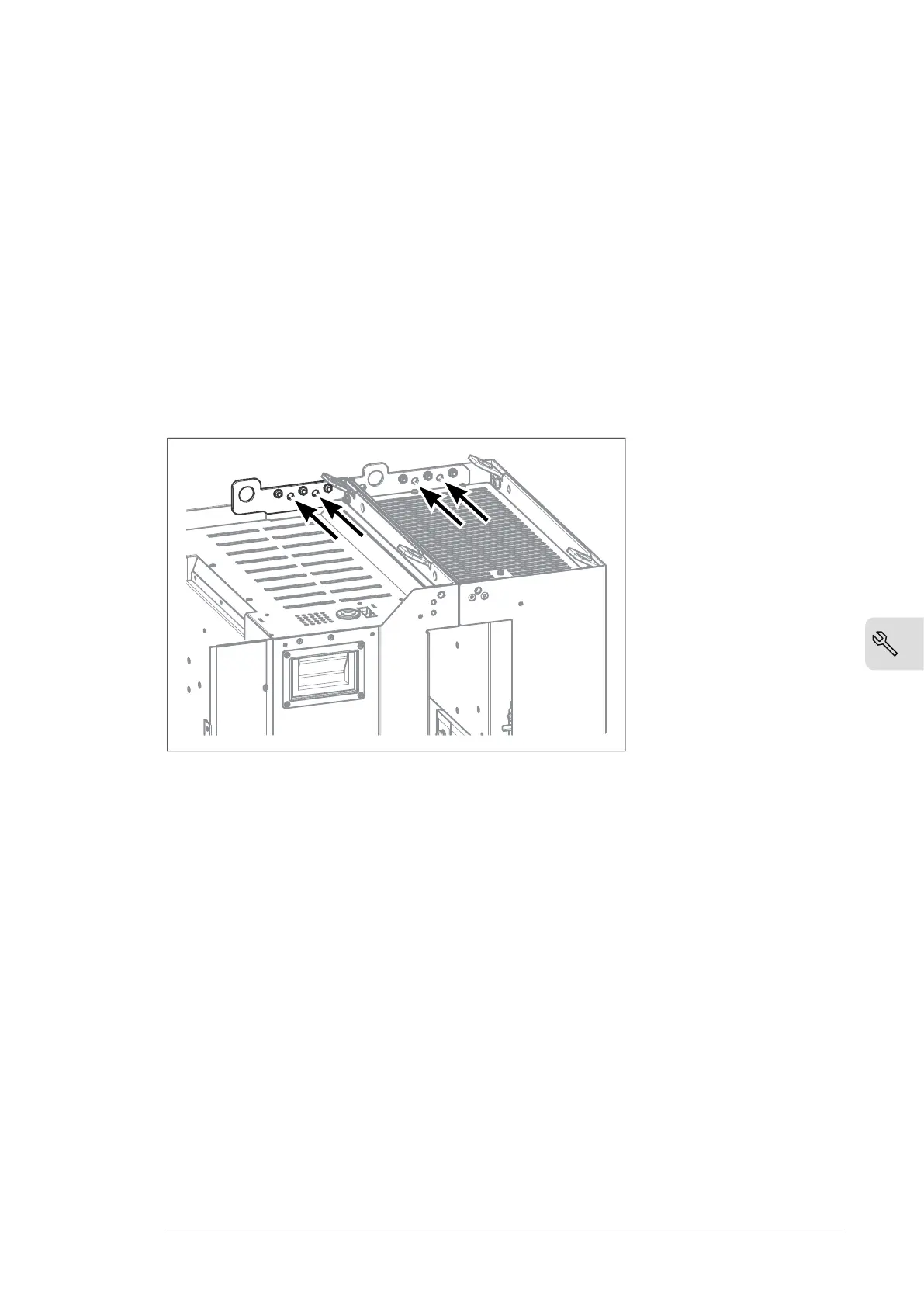

Ground the drive module and the LCL filter module from the fastening points:
Installing the drive in Rittal VX25 enclosure
For an installation example on how to install the drive module into a Rittal VX25 enclosure,
see Installation example of the standard drive module configuration in Rittal VX25
enclosure (page 131) and Step-by-step drawings for an installation example of standard drive
configuration in Rittal VX25 800 mm wide enclosure (page 233).
Mechanical installation 73
