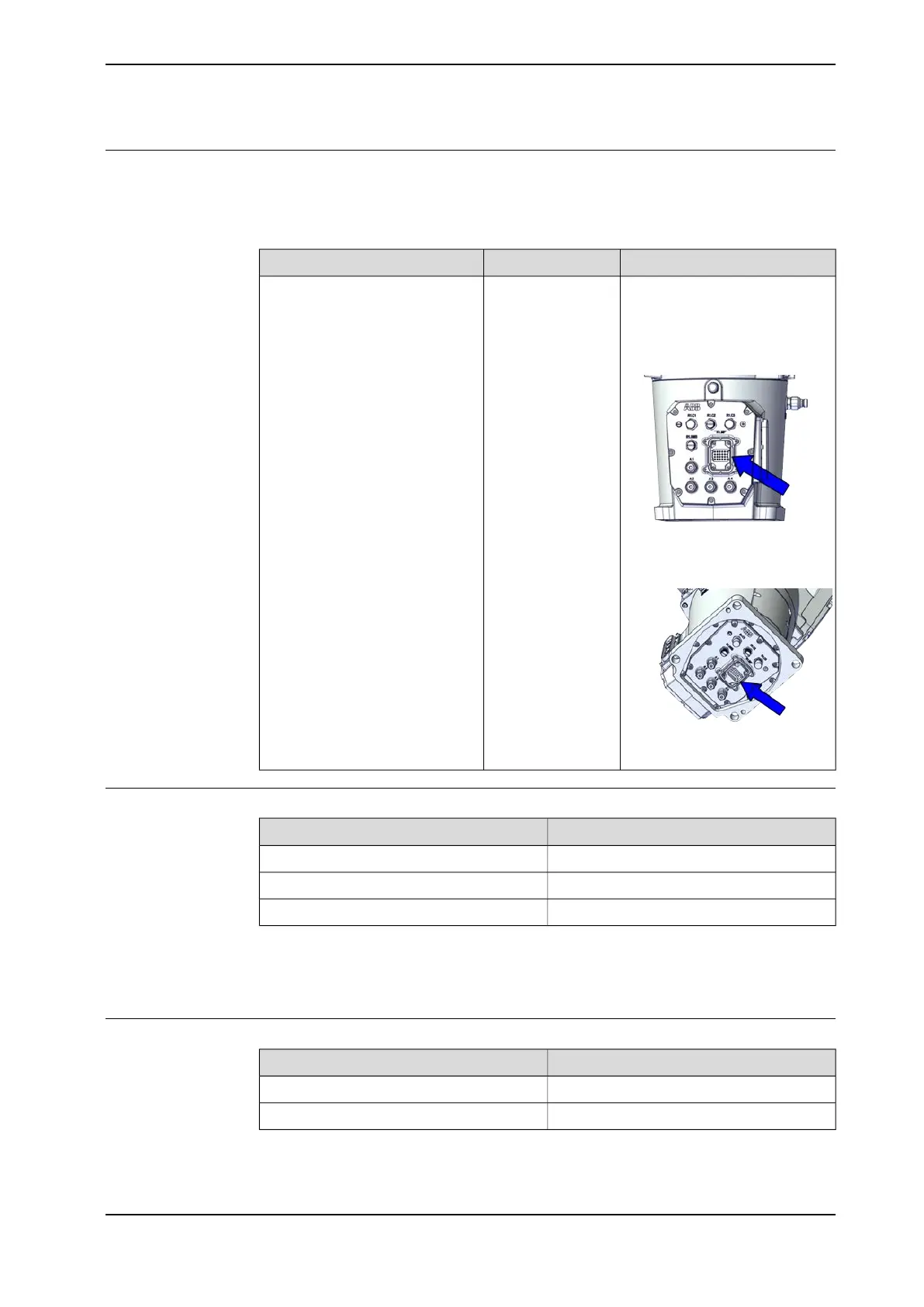

Installation of extra O-rings
For robots with protection class IP67 (option 3350-670)
An extra O-ring is delivered together with the robot and must be fitted to the robot
during installation.
NoteArticle numberEquipment
Used with protection class IP67.3HAB3772-19O-ring
Used to seal between the main
power cable and connector.
Robots with manipulator cables
routed from the rear of the base:
xx2000002338
Robots with manipulator cables
routed from below (3309-1):
xx2000002339
Customer cables - CP/CS cable
Article numberCP/CS cable length
i
3HAC078069-0013 m, with lamp unit cabling
3HAC078069-0027 m, with lamp unit cabling
3HAC078069-00315 m, with lamp unit cabling
i
CP/CS cable for CRB 1300 also includes lamp unit cabling used for communication with the lamp
unit on the process hub. The cable is also designed with free ends for more I/O connections and
shall always be used properly in applications. It is recommended to shield the free ends not in use.
Do not use other types of CP/CS cables or use in an improper way; otherwise, the lamp unit will
not work and other unknown faulty may be raised.
Customer cables - Ethernet floor cable
Article numberEthernet floor cable length
3HAC067447-0027 m
3HAC067447-00315 m
Product manual - CRB 1300 101
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
3 Installation and commissioning
3.5.1 Robot cabling and connection points
Continued
