5.7.3 Replacing the axis-3 gearbox
Location of the axis-3 gearbox

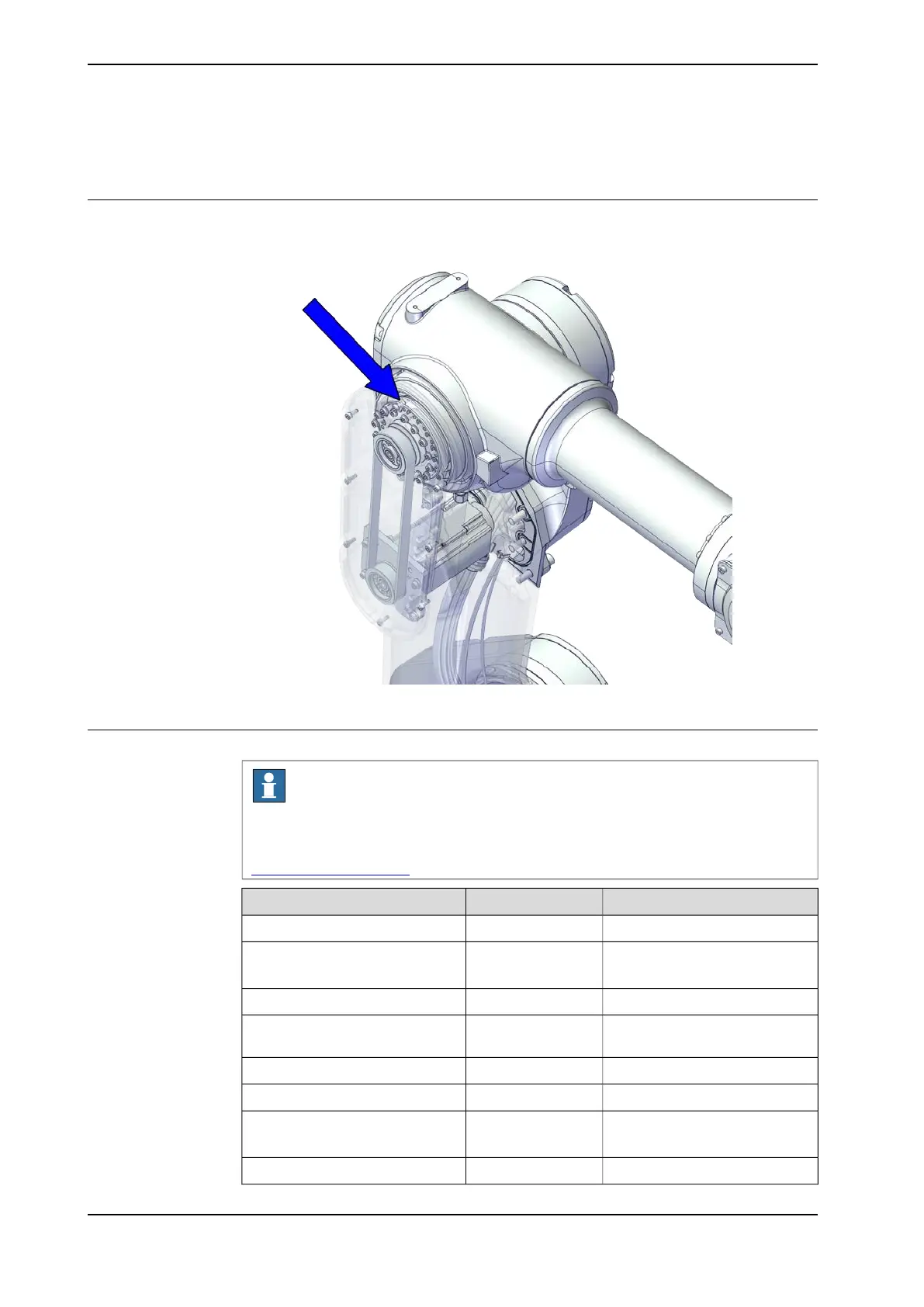

The axis-3 gearbox is located as shown in the figure.
xx2000001488
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the CRB 1300 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
3HAC073080-001Gear unit, axis 3
Used with protection class IP67.
Replace if damaged.
3HAC061327-016O-ring on circular spline side, axis
3
3HAC067040-001Timing belt, axis 3
3HAC085071-001Process hub with lamp unit (CP/CS
and air hose, with Ethernet)
3HAC081993-004Multi-color lamp unit (16 mm)
3HAC082320-001Lamp unit cover
Used with protection class IP67.
Replace if damaged.
3HAC082935-001Gasket for lamp unit cover
3HAC064693-001Plastic cable protector, axis 3
Continues on next page
602 Product manual - CRB 1300
3HAC083111-001 Revision: B
