5.4.3 Replacing the axis-1 mechanical stops
Location of the mechanical stops

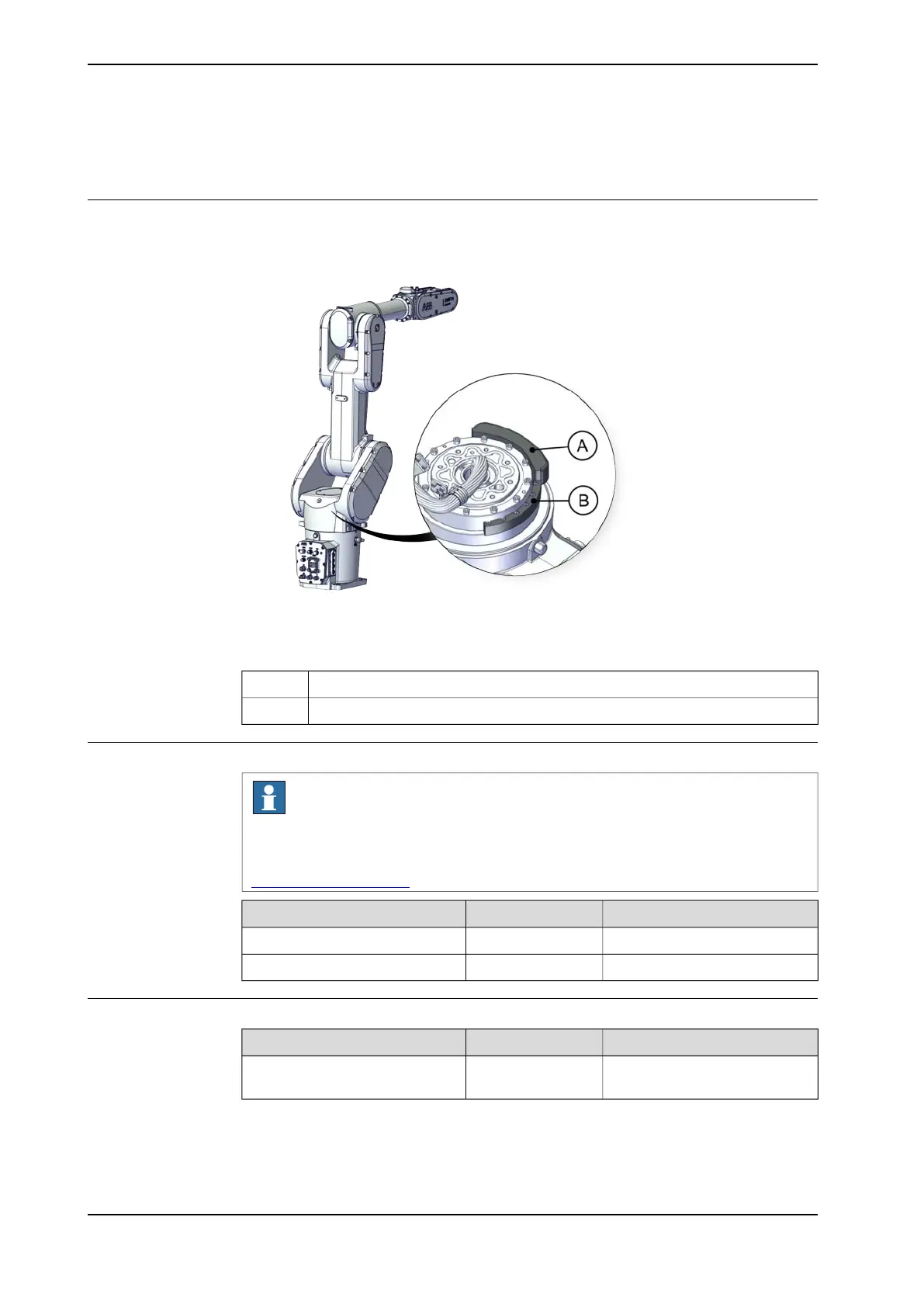

The mechanical stops are located as shown in the figure.
xx2200001134
Mechanical stop, axis 1, sliderA
Mechanical stop, axis 1, fixed blockB
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the CRB 1300 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
Replace if damaged.3HAC064478-001Mechanical stop, axis 1, fixed block
Replace if damaged.3HAC065755-001Mechanical stop, axis 1, slider
Required tools and equipment
NoteArticle numberEquipment
Content is defined in section
Standard toolkit on page 716.
-Standard toolkit
Continues on next page
322 Product manual - CRB 1300
3HAC083111-001 Revision: B
