ABB CRB 1300 - Replacing the Swing

5.4.2 Replacing the swing

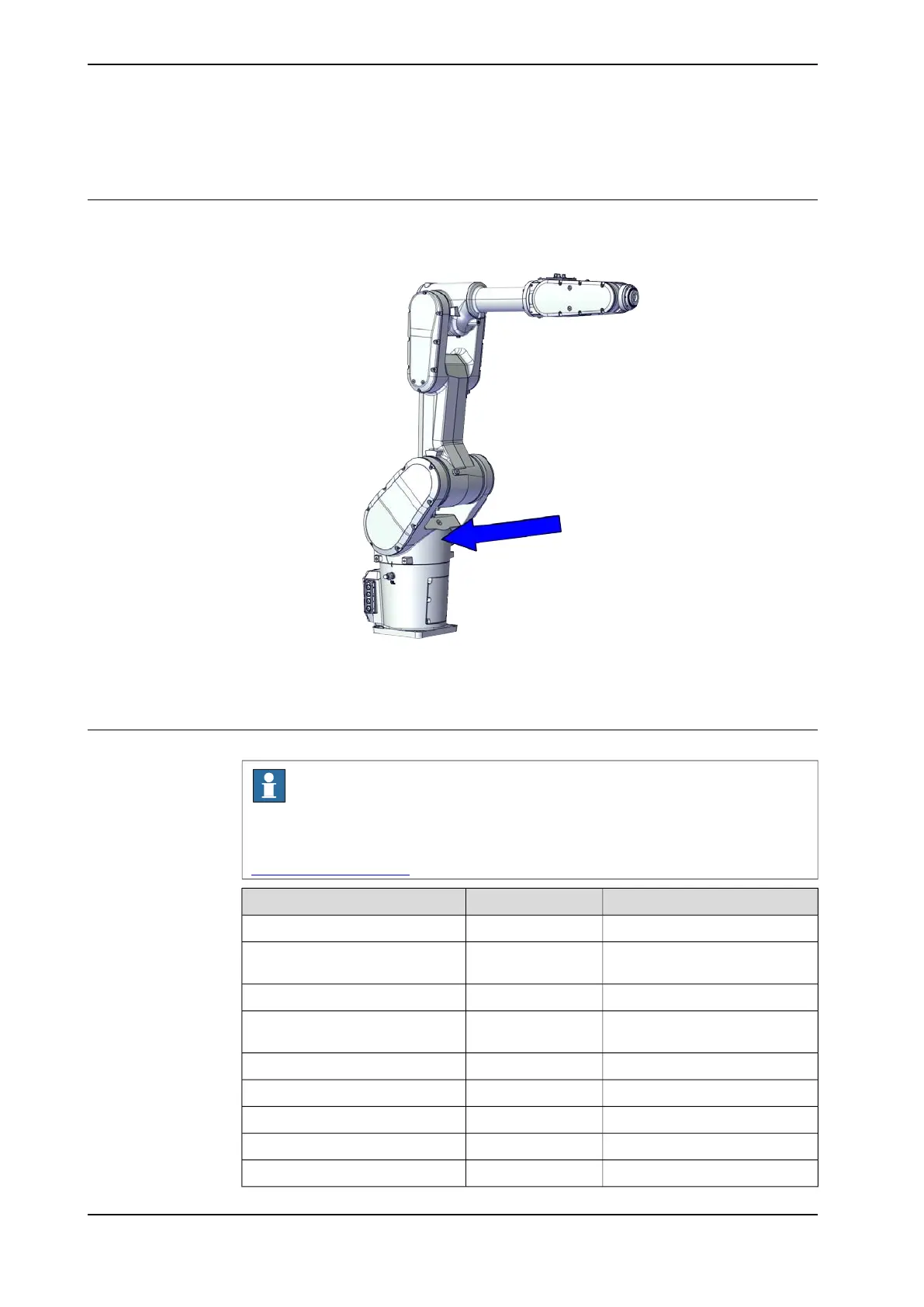

Location of the swing
The swing is located as shown in the figure.
xx2000001474
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the CRB 1300 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
Used for CRB 1300-11/0.9.3HAC073040-001Swing, short
Used for CRB 1300-10/1.15 and
CRB 1300-7/1.4.
3HAC073047-001Swing, long
Used for CRB 1300-11/0.9.3HAC073041-001Swing support, short
Used for CRB 1300-10/1.15 and
CRB 1300-7/1.4.
3HAC073052-001Swing support, long
3HAC073078-001Motor unit, axis 2
3HAC061327-037O-ring on motor unit
3HAC065676-001Sealing ring, swing support side
3HAC061327-036O-ring on swing
Replace if damaged.3HAC065651-001Mechanical stop, block A
Continues on next page
280 Product manual - CRB 1300
3HAC083111-001 Revision: B
