4.7.3 Changing oil, axis-2 gearbox
Location of oil plugs

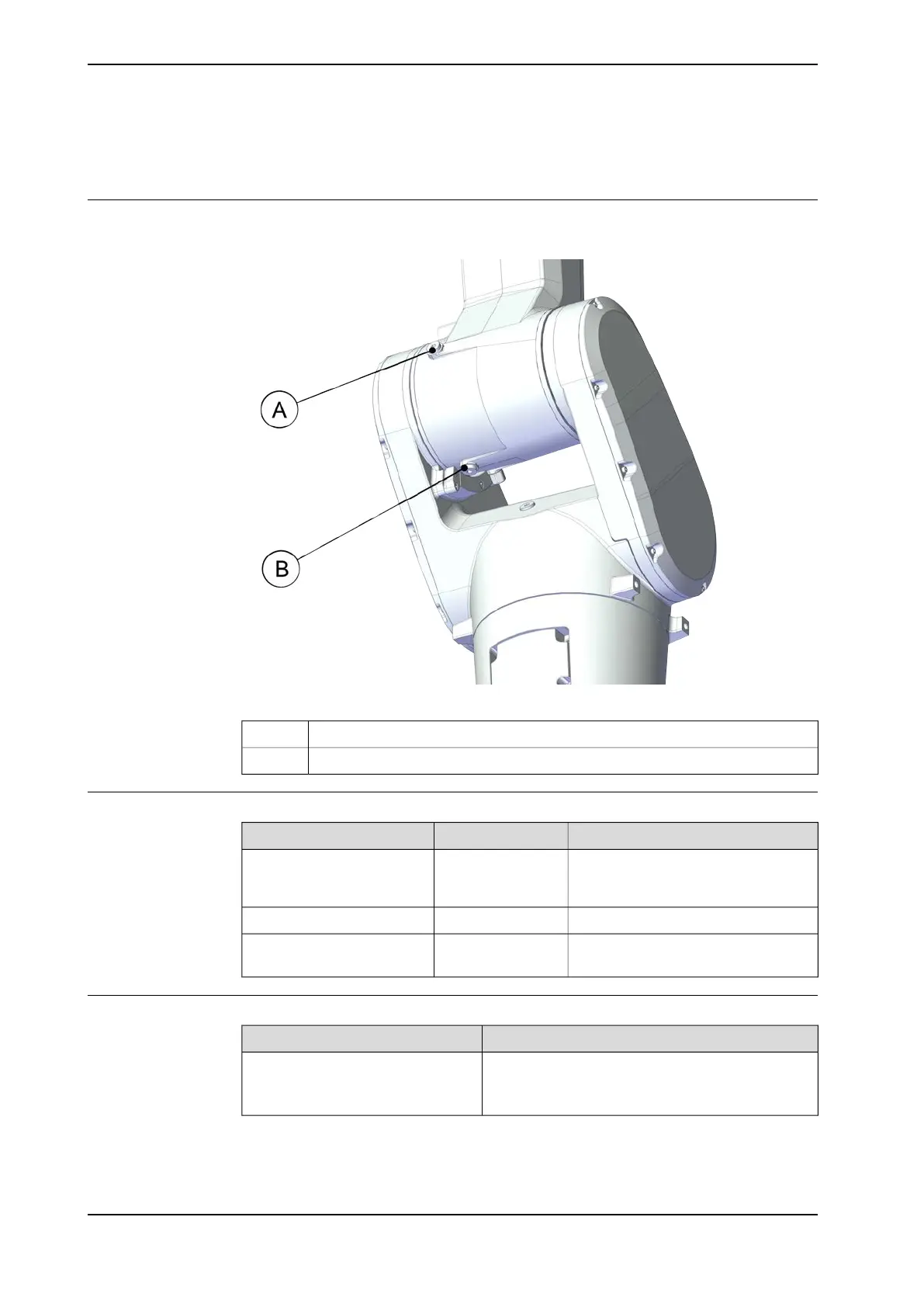

The oil plugs of the gearbox are located as shown in the figure.
xx2000001512
Oil plug, filling and ventingA
Oil plug, filling, draining and ventingB
Required tools and equipment
NoteArticle numberEquipment, etc.
The capacity of the vessel must be
sufficient to take the complete amount
of oil.
-Oil collecting vessel
Includes pump with outlet pipe.-Oil dispenser
Content is defined in section Standard
toolkit on page 716.
-Standard toolkit
Consumable
NoteMaterial
Information about the oil is found in Technical refer-
ence manual - Lubrication in gearboxes.
Lubricating oil
See Type and amount of oil in gearboxes on page 194.
Continues on next page
200 Product manual - CRB 1300
3HAC083111-001 Revision: B
