NoteAction
Note
Draining is time-consuming.
Elapsed time varies depending on the
temperature of the oil.
Drain the gearbox oil.8
Remove and clean the pipe after the oil is
drained.
Note
There will be some oil left in the gearbox
after draining.
9
Tightening torque: 10 NmRefit oil plugs.10
Filling oil into the axis-2 gearbox
Use this procedure to refill the gearbox with oil.
Refilling oil to axis-2 gearbox
NoteAction
WARNING
Handling gearbox oil involves several
safety risks, see Gearbox lubricants (oil or
grease) on page 29.
1
CAUTION
The gearbox can contain an excess of
pressure that can be hazardous. Open the
oil plug carefully in order to let the excess
pressure out.
2

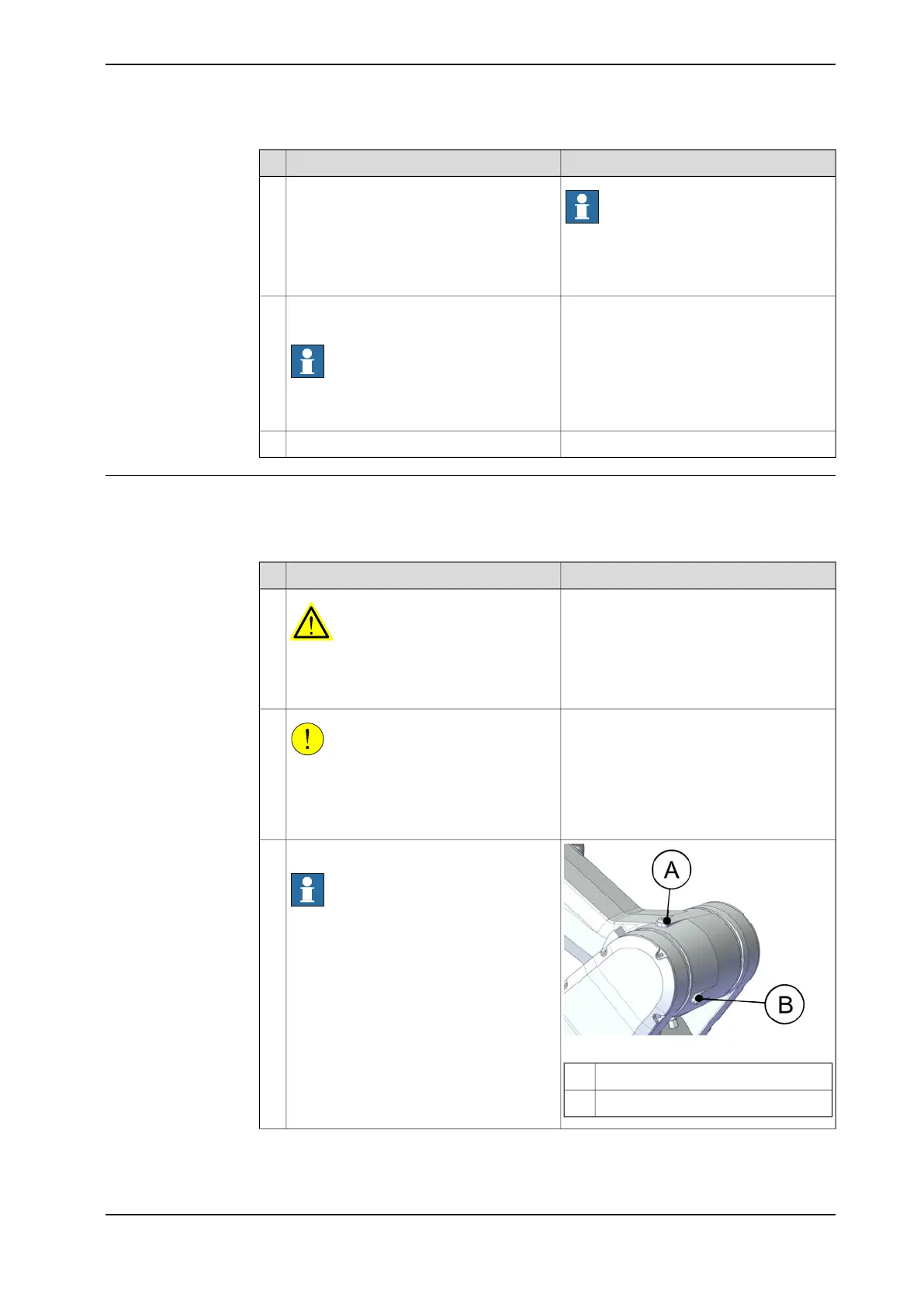

xx2000001518
Oil plug, openedA
Oil plug, closedB
Open the upper oil plug.
Note
The lower oil plug has to be closed; other-
wise, the oil may leak before required oil
amount is filled.
3
Continues on next page
Product manual - CRB 1300 203
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
4 Maintenance
4.7.3 Changing oil, axis-2 gearbox
Continued
