NoteAction
Screw: M4x10 12.9 Lafre
2C2B/FC6.9 (8 pcs)

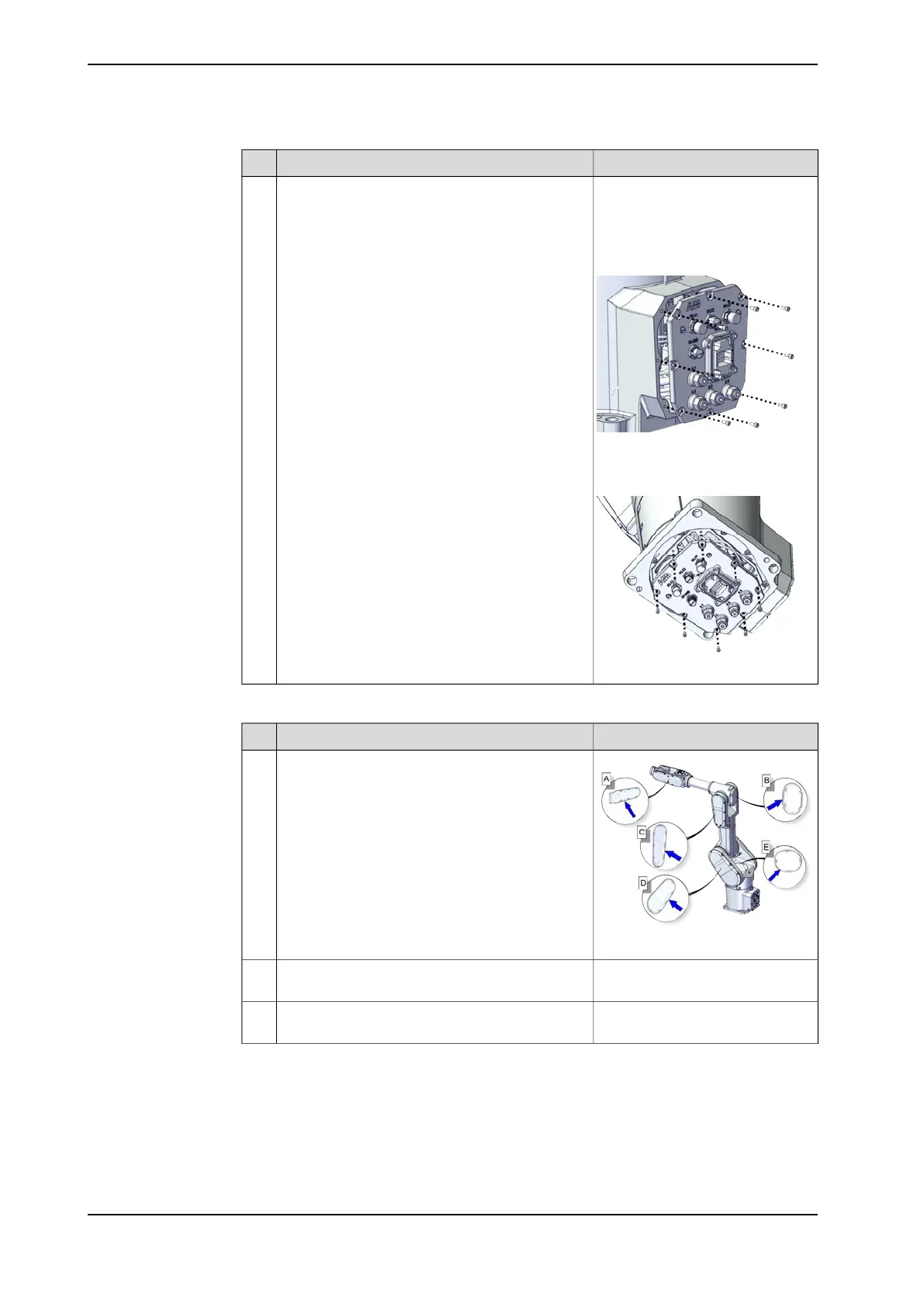

Refit the connector interface plate to the base.4
Tightening torque: 2.6 Nm
Valid for cabling with rear inter-
face
xx2000001558
Valid for cabling with bottom inter-
face (option 3309-1)
xx2000001575
Refitting the covers
NoteAction
xx2000002497
For robots with protection class IP67 (option
3350-670)
Check the gaskets.
• Tubular support cover (A)
• Housing cover (B)
• Lower arm support cover (C)
• Swing support cover (D)
• Swing top cover (E)
Replace if damaged.
1
Grease: 3HAC029132-001Apply grease to the cable package, cover all
moving area of the package.
2
Grease: 3HAC029132-001Apply grease to the covers that have contacting
area with the cable package.
3
Continues on next page
246 Product manual - CRB 1300
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
5 Repair
5.3.1 Replacing the cable package
Continued
