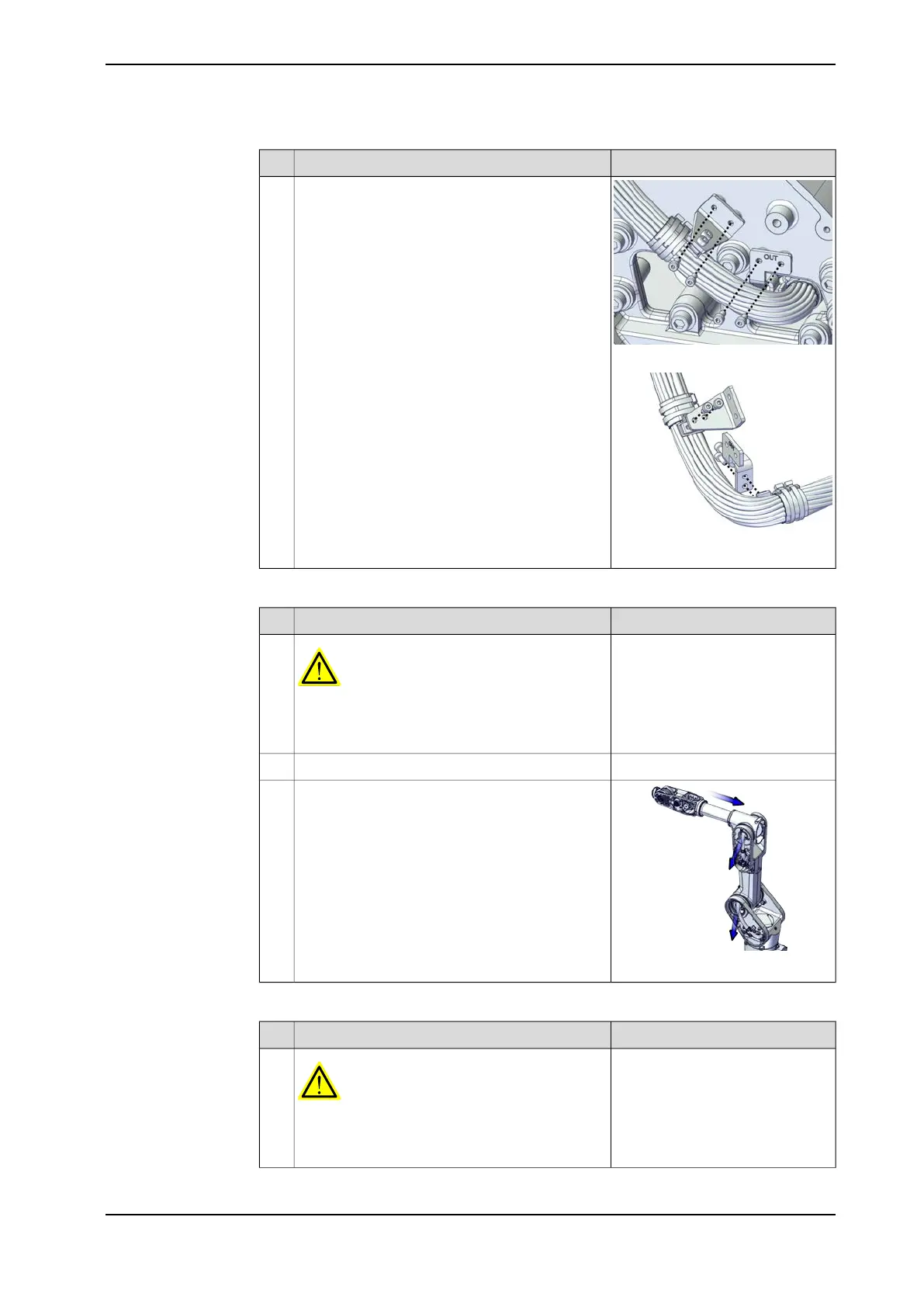

ABB CRB 1300 - Page 341

NoteAction
xx2000001557
Remove the cable brackets from the swing first
and then from the cable package.
3
xx2100001466
Pulling out the cable package
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
Wrap the connectors with the masking tape.2
xx2000001683
Pull the cable package out to the swing support.3
Removing the axis-3 timing belt
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
Continues on next page
Product manual - CRB 1300 341
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
5 Repair
5.5.1 Replacing the lower arm
Continued
