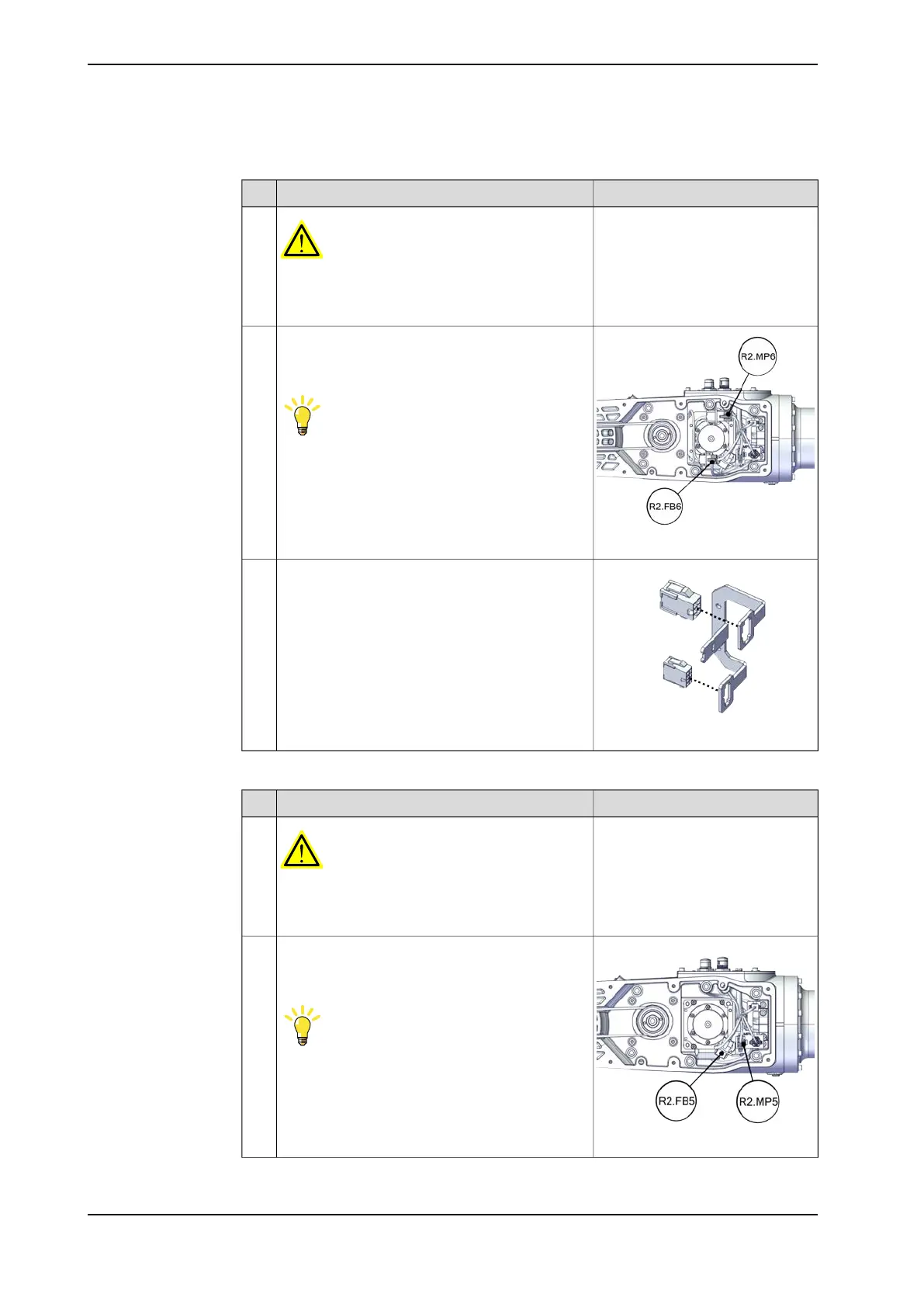

Disconnecting the axis-6 motor connectors
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
xx2000001532
Disconnect the connectors.
• MP6
• FB6
Tip
Take photos of the connector and cable position
before disconnecting them, to have as a reference
when reconnecting.
2
xx2000001533
Snap loose and remove the male head of the
connectors from the connector plate.
3
Disconnecting the axis-5 motor connectors
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
xx2000001534
Disconnect the connectors.
• MP5
• FB5
Tip
Take photos of the connector and cable position
before disconnecting them, to have as a reference
when reconnecting.
2
Continues on next page
532 Product manual - CRB 1300
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
5 Repair
5.6.5 Replacing the axis-5 motor
Continued
