ABB CRB 1300 - Page 535

NoteAction
xx2000001596

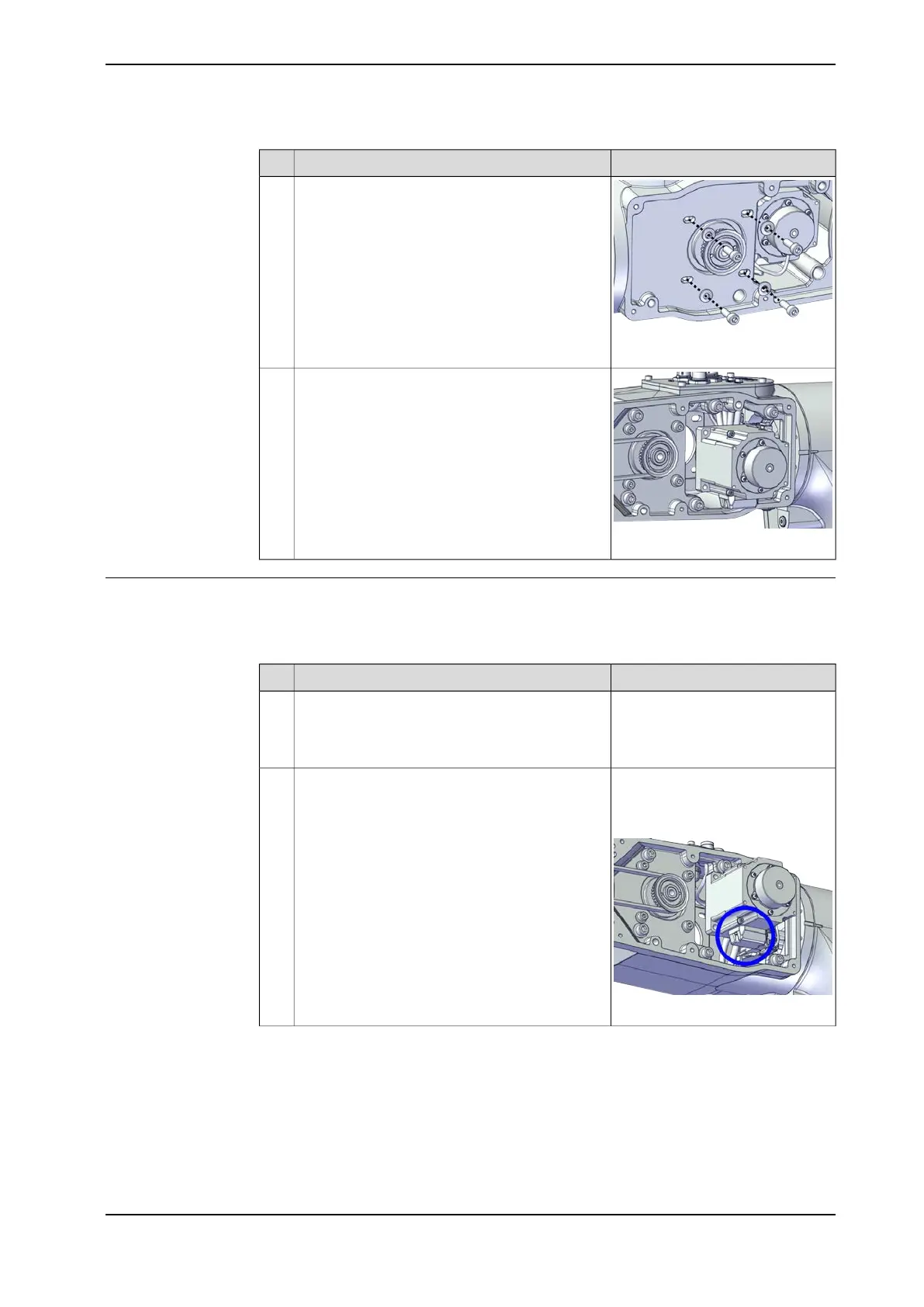

Remove the screws and washers.3
xx2000001597
Carefully lift out the motor.4
Refitting the motor
Use these procedures to refit the axis-5 motor.
Refitting the axis-5 motor
NoteAction
Check that:
• all assembly surfaces are clean and without
damages
• the motor is clean and undamaged.
1
Motor orientation: orient the motor
according to the figure below, in
regard to the encircled motor con-
nector.
Orient the motor correctly and fit it into the tubular.2
xx2000001598
Continues on next page
Product manual - CRB 1300 535
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
5 Repair
5.6.5 Replacing the axis-5 motor
Continued
