ABB CRB 1300 - Page 96

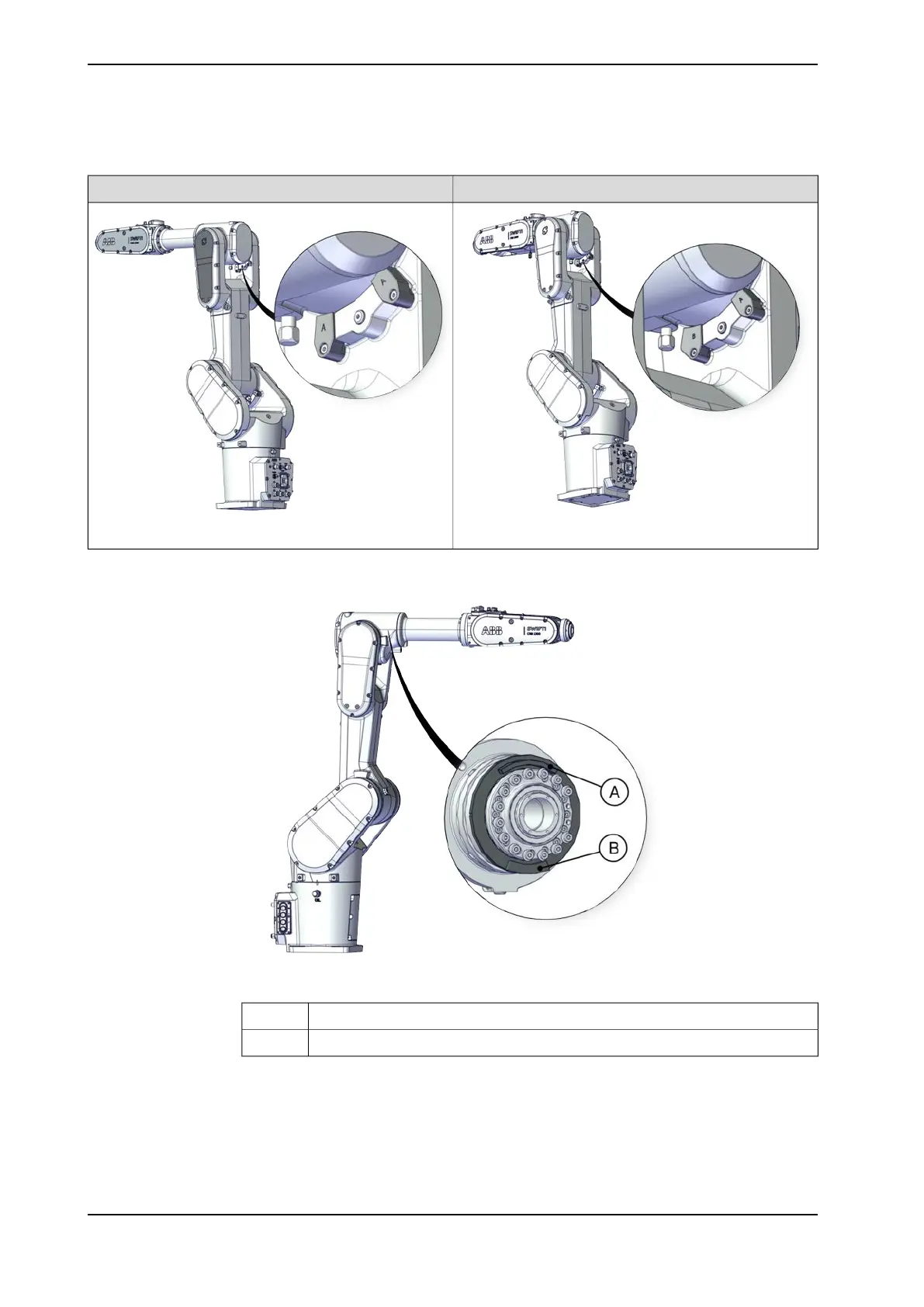

Axis 3
CRB 1300-10/1.15CRB 1300-11/0.9, CRB 1300-7/1.4
xx2200001139xx2200001136
Axis 4
xx2200001137
Mechanical stop, axis 4, flangeA
Mechanical stop, axis 4, sliderB
Continues on next page
96 Product manual - CRB 1300
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
3 Installation and commissioning
3.4.2 Mechanically restricting the working range
Continued
