94 Safety functions

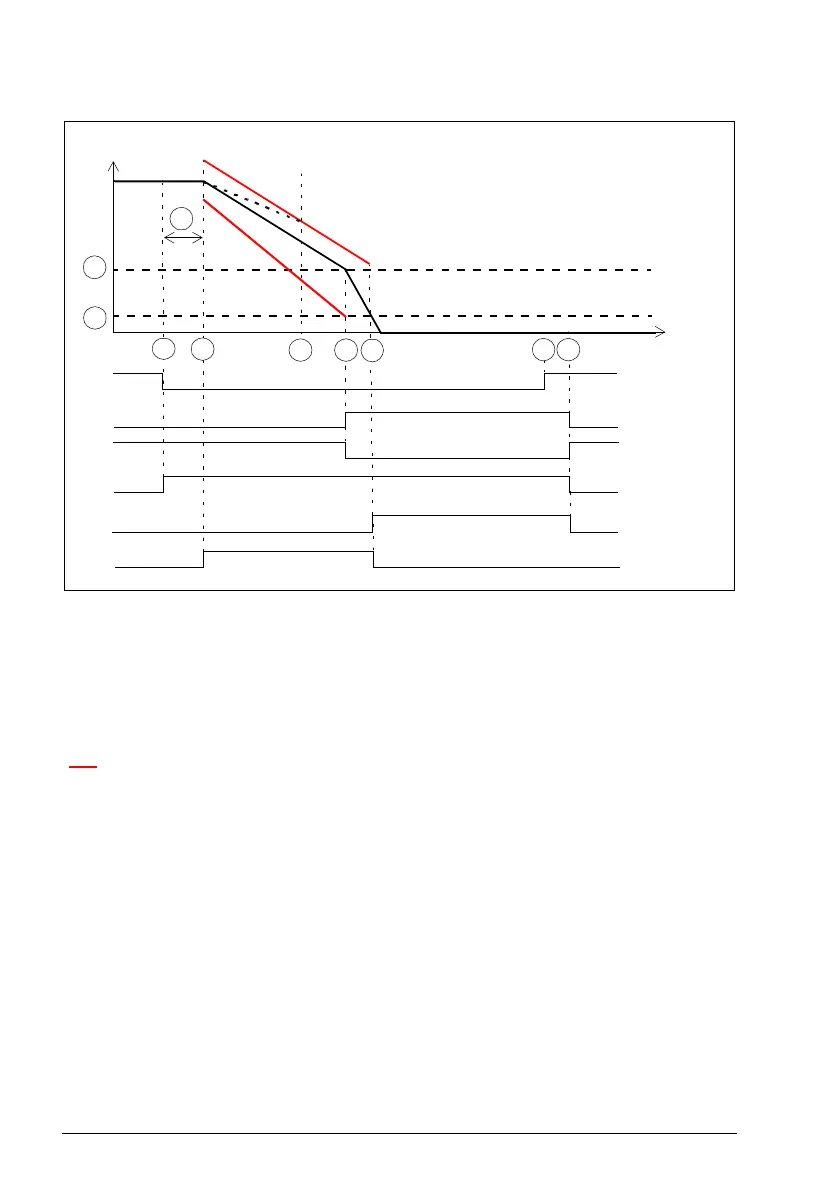

With an encoder
A SBC speed (parameter SBC.15): Speed limit below which FSO activates the SBC
(brake) and drive STO functions while ramping.
B Zero speed with encoder (parameter FSOGEN.52): Speed limit to define the motor as
stopped. The safety function is completed, the ramp monitoring is stopped and the SS1
completed indication (parameter SS1.22) goes on. The acknowledgment becomes
allowed.
C Response time (depends on system configuration, see page 532)
Ramp monitoring limits
Drive STO state
& indication
SS1 request
Motor speed
Time
SS1 state &
indication
1
6
2
5
SBC output
3
A
C
SS1 completed
indication
SAR1
monitoring
B
3b 4
- -> Safe torque off (STO)
