Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
8 Dismantling and fitting, general / 8.2 Disassembly and assembly
concepts
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
Optional spanner holder

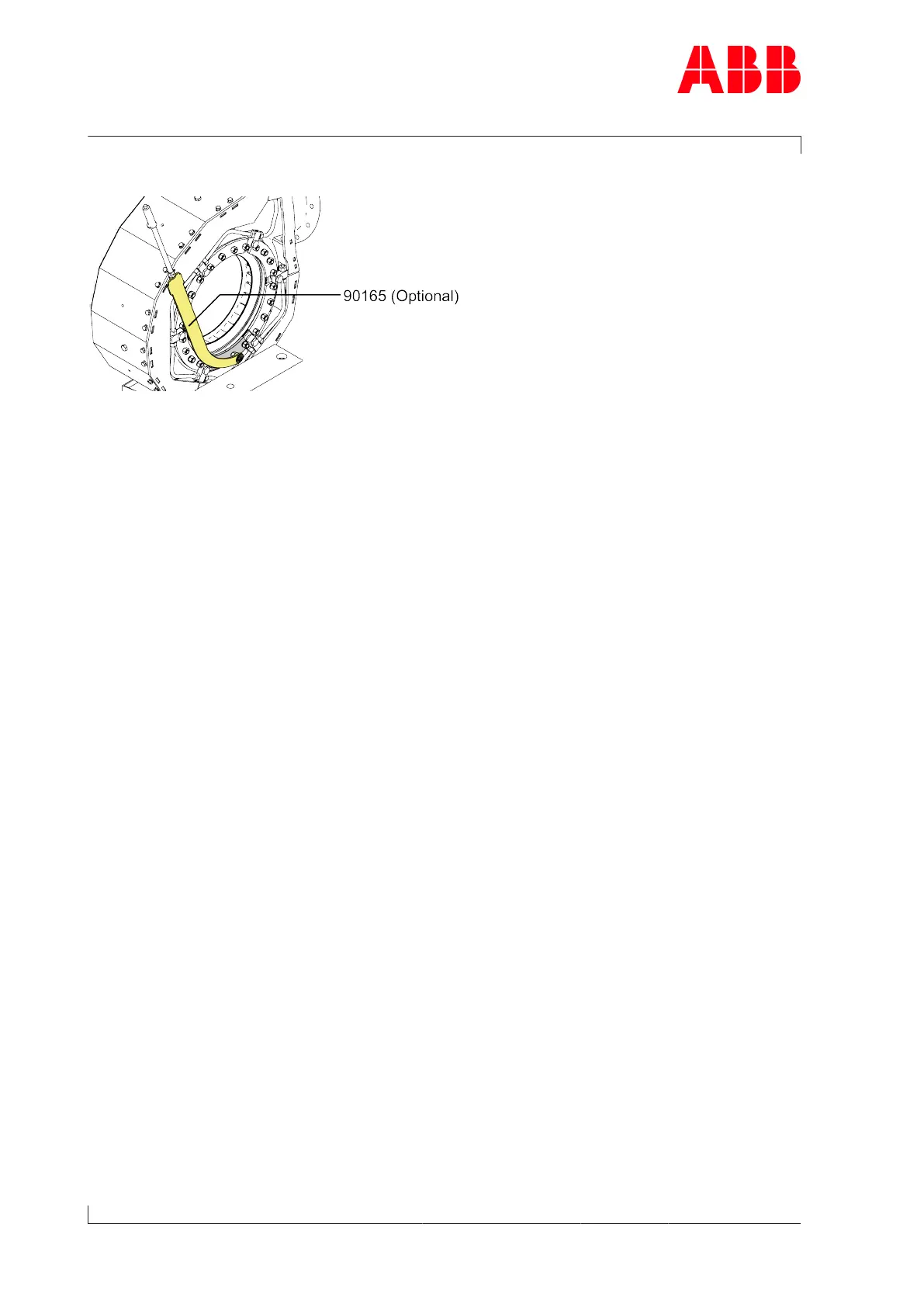

Fig.31: Optional spanner holder
ABB Turbo Systems offers an optional spanner holder (90165) (see Dismantling and fitting,
special tools for fastening strips →126) which, in the event of limited accessibility, can be
used to facilitate the loosening of nuts and the application of tightening torques for the
strip connection between the cartridge group and the turbine casing.
The spanner holder (90165) should only be used for loosening the nuts and applying tighten-
ing torques for the nuts at the position shown.
Other screws or nuts on the turbocharger should not be tightened with this tool.
