Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
12 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 12.1 Disassembly
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
12 Removing and installing 6-nozzle
turbine cleaning component (optional)
12.1 Disassembly
The following illustration shows the initial situation before the 6-nozzle turbine cleaning
component is dismantled.

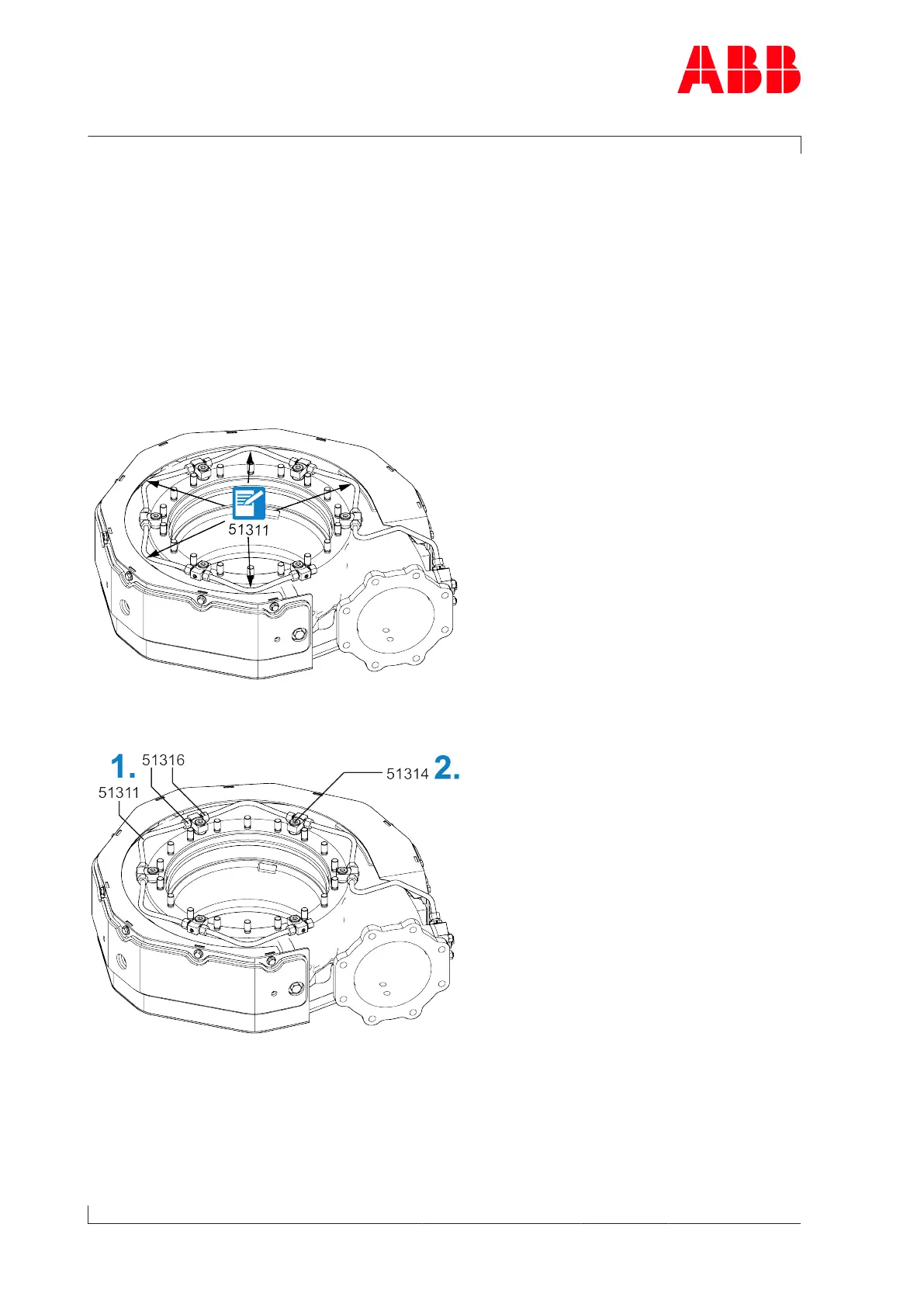

Fig.103: Initial situation
u Before disassembly, mark the positions of the elbows (51311).
Fig.104: Disassembly of the elbows
1. Just loosen the union nuts (51316) of the elbows (51311). Do not remove them yet.
2. Just loosen the screws (51314). Do not remove them yet.
Page 136 / 161
