ABB HT580635 - Fig. 50: Installing the Cartridge Group on the Service Support; Installing the Cartridge Group on the Service Support

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.7 In-
stalling the cartridge group on the service support
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
9.7 Installing the cartridge group on the service
support

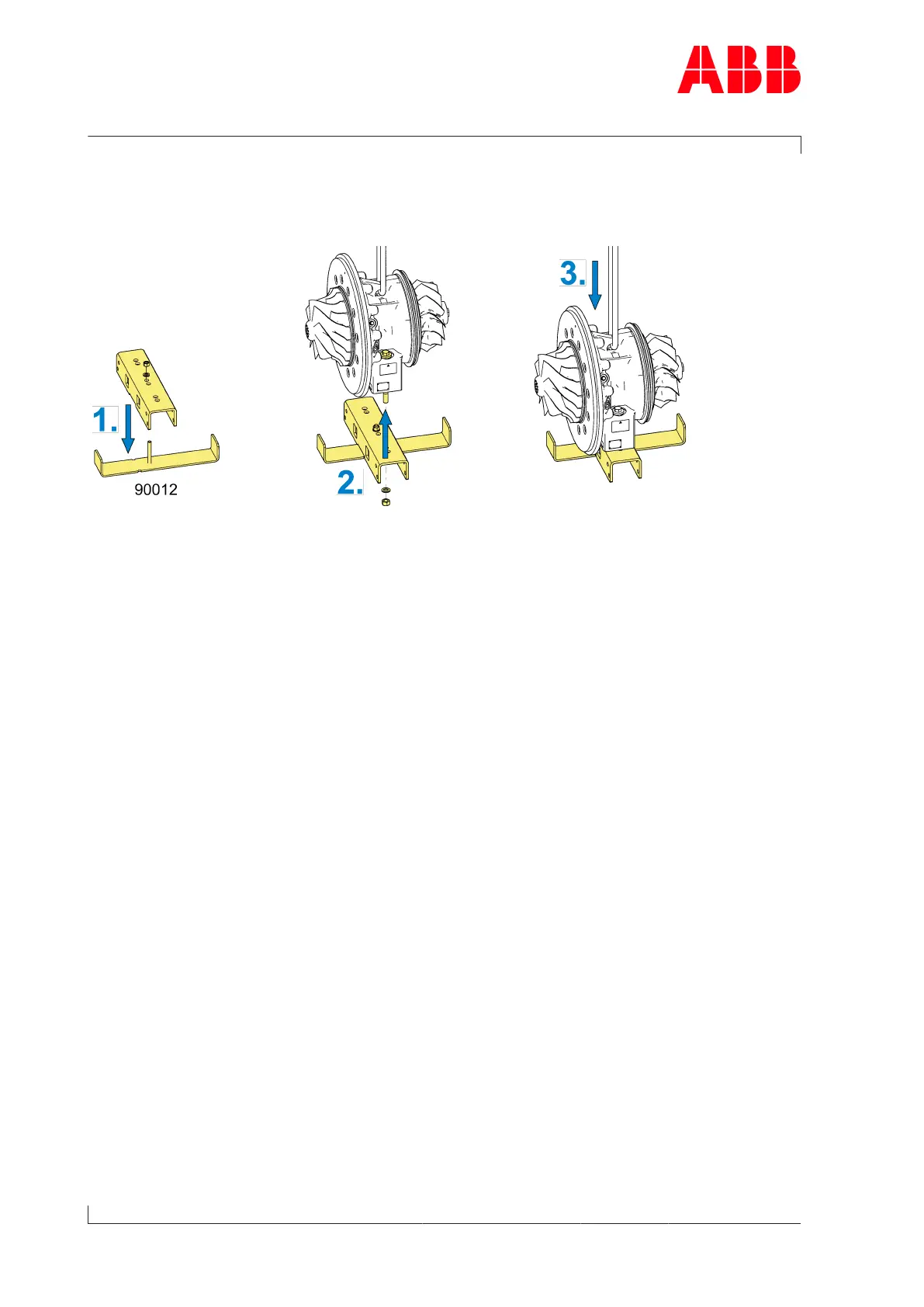

Fig.50: Installing the cartridge group on the service support
1. Assemble the service support (90012) with longitudinal and cross-pieces.
2. Fit service support to cartridge group.
3. Put down cartridge group.
