ABB HT580635 - Fig. 14: Tightening Pressure Screws; Table 4: Pressure Screw Tightening Torques

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
2 Removing and Installing / 2.3 Installing the turbocharger
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
Tightening pressure screws

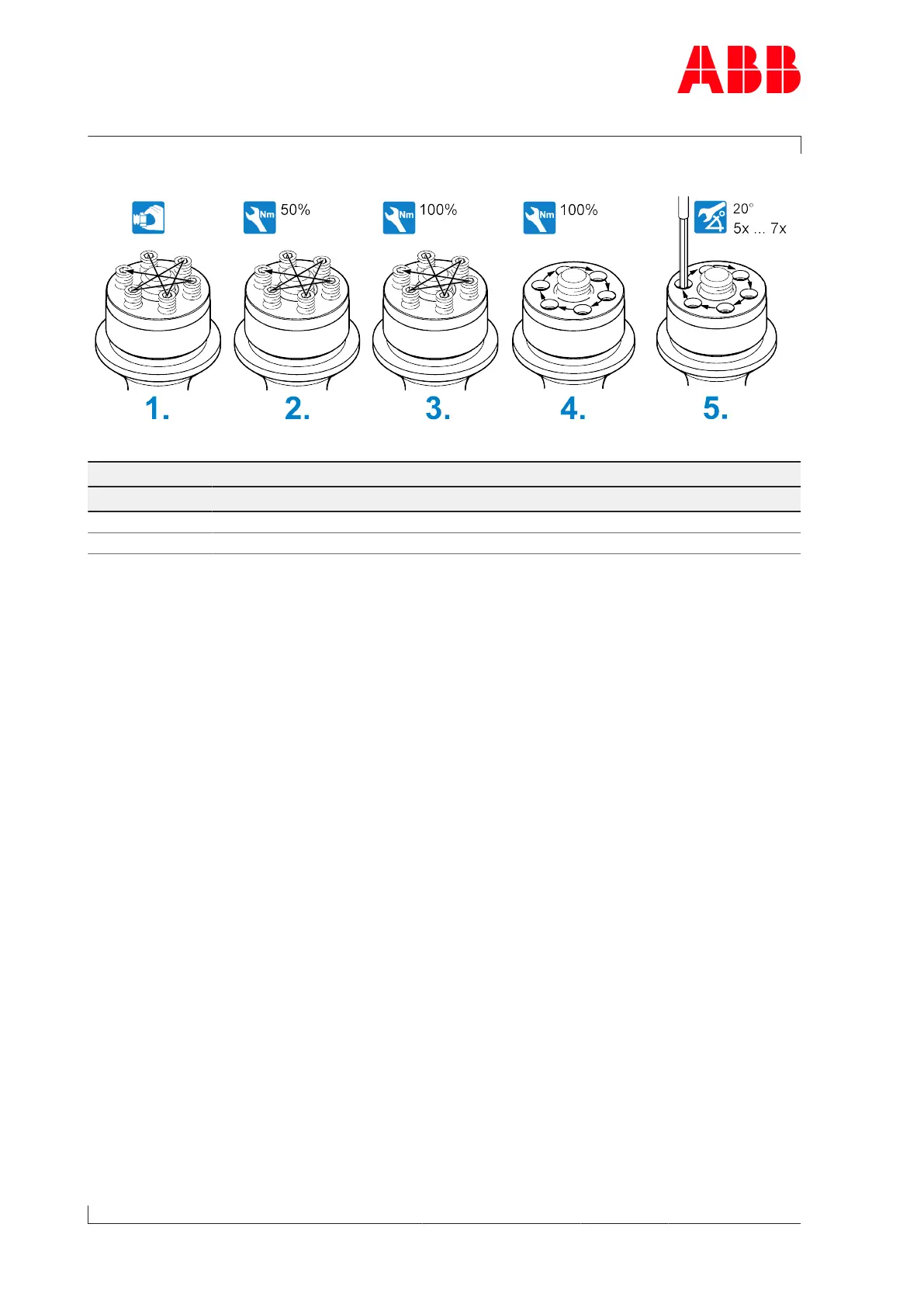

Fig.14: Tightening pressure screws
Torque-controlled tightening
Product Fixing screw [mm] Tightening torques [Nm]
A150 M30 45
A155 M36 85
Table4: Pressure screw tightening torques
Page 18 / 161
