ABB HT580635 - Fig. 111: Pipe Assembly; Fig. 112: Assembly of Elbows 1

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
12 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 12.2 Assembly
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

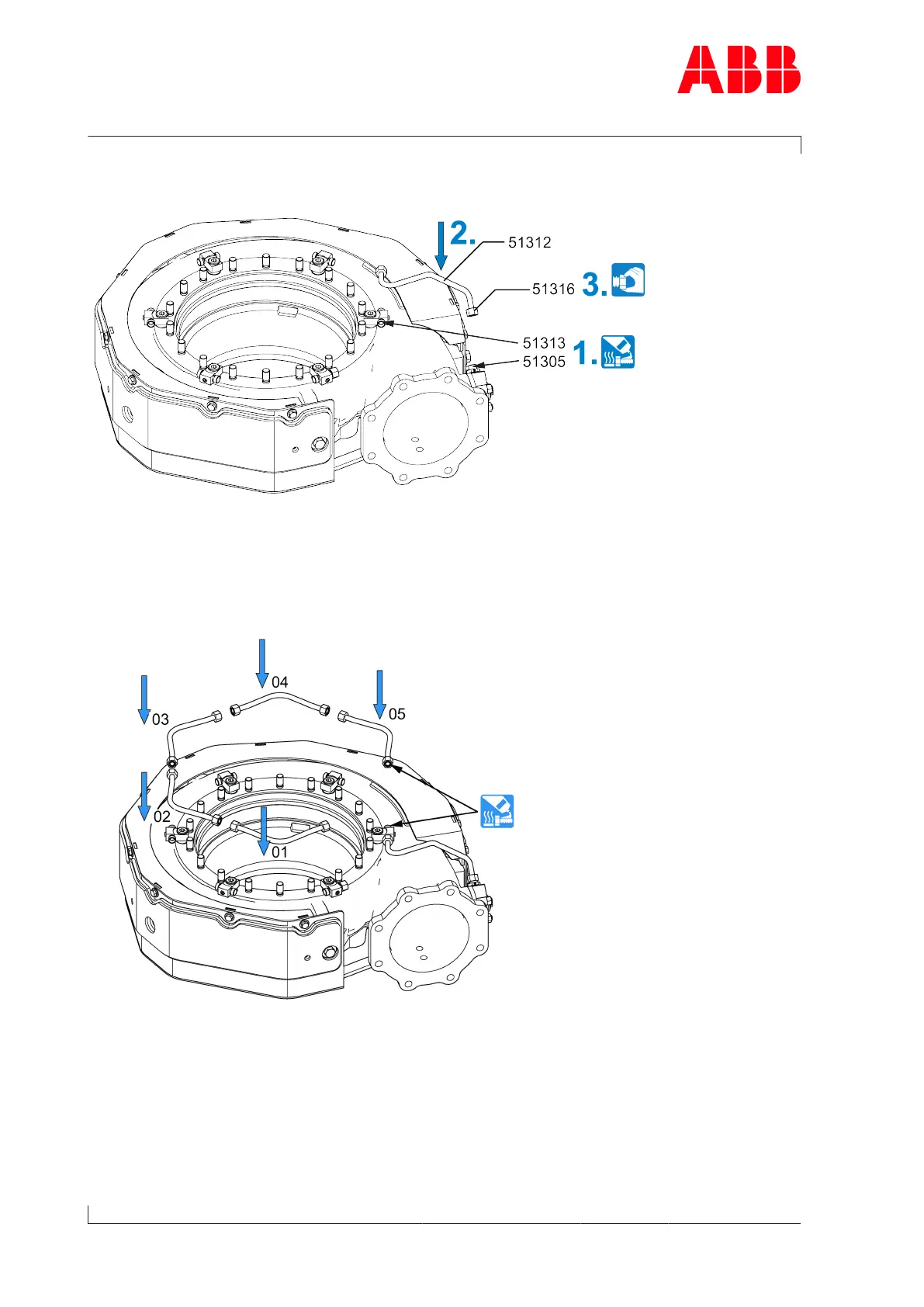

Fig.111: Pipe assembly
1. Coat thread and contact surfaces of cutting ring with high-temperature grease.
2. Position pipe (51312).
3. Position union nuts (51316) of pipe on connecting piece (51313) and screw-in fitting
(51305) and tighten by hand only.
Fig.112: Assembly of elbows 1
u Coat thread and contact surfaces of cutting ring with high-temperature grease.
u Screw the union nuts (51316) of the elbows (51311) onto the connecting pieces (51313) in
the specified order (01, 02, 03, 04, 05).
Page 140 / 161
