11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

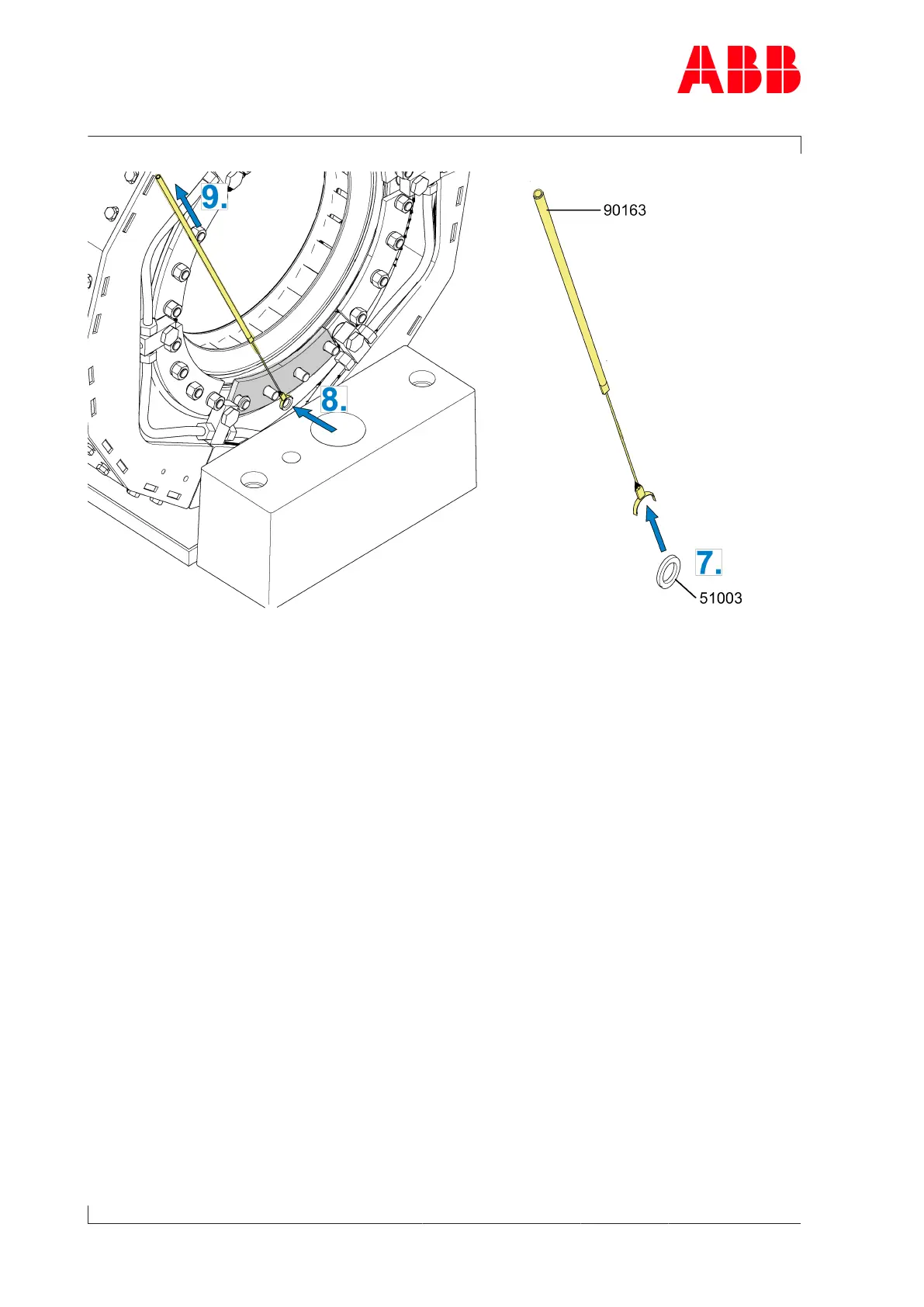

Fig.101: Clamping device
7. Fix the washer (51003) with clamping device (90163) and check to ensure it is properly
seated.
8. Position the washer (51003) on the set screw.
9. Remove the clamping device.
