ABB HT580635 - Fig. 33: Overview of Tightening Torques; Table 37: Tightening Torques; Table of Tightening Torques

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
8 Dismantling and fitting, general / 8.4 Table of tightening torques
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
8.4 Table of tightening torques

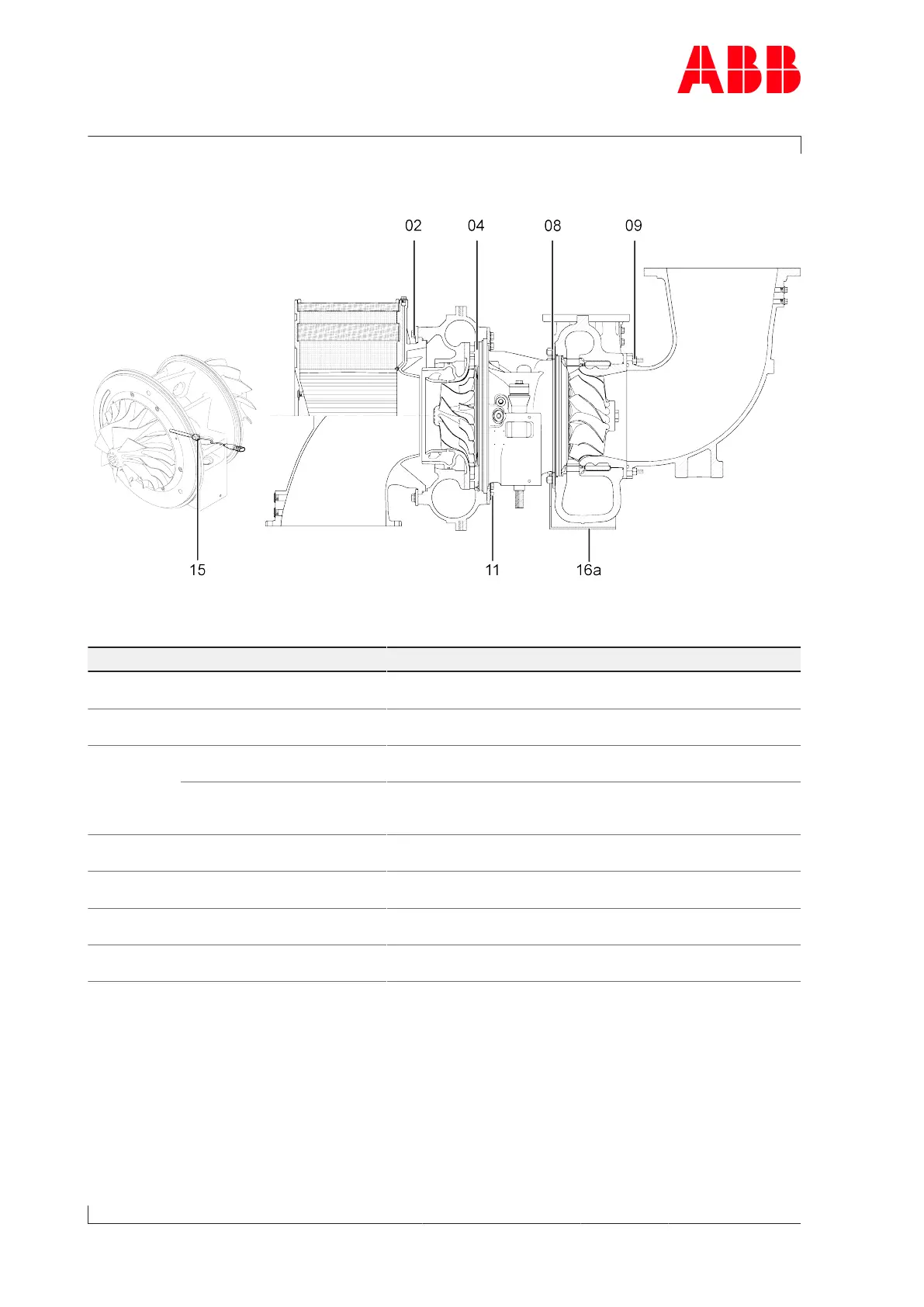

Fig.33: Overview of tightening torques
The following tightening torques must be observed for the designated screw fittings:
Position Part number A150 A155
02 72051 M16
275Nm
M16
275Nm
04 79041 M6
8Nm
M6
8Nm
08 51007 M16
175Nm
M16
175Nm
51007
with spanner holder
(90165)
M16
85 Nm
M16
70Nm
09 51009 M16
200Nm
M16
200Nm
11 72011 M16
275Nm
M18
370Nm
15 86505 M12 x 1.5
15Nm
M12 x 1.5
15Nm
16a - - M16
200Nm
M16
200Nm
Table37: Tightening torques
Page 72 / 161
