10.9 Installing the compressor casing
Fitting the wall insert and the diffuser

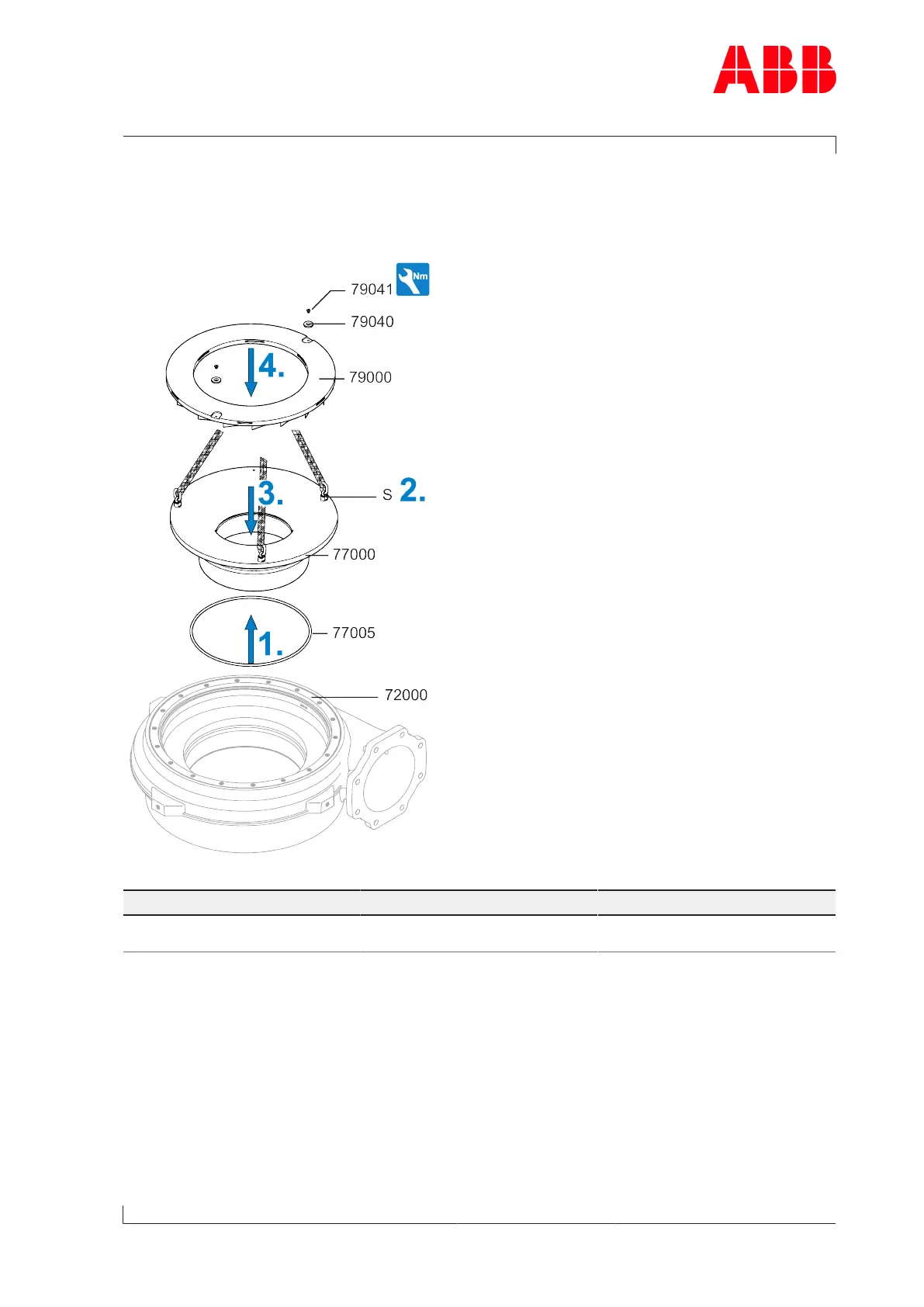

Fig.85: Fitting the wall insert and the diffuser
Part number A150 A155
79041 M6
8Nm
M6
8Nm
Table57: Tightening torque (79041)
1. Fit a new O-ring (77005).
2. Fit the swivel lifting eyes(S) to the wall insert(77000). Secure lifting gear to the swivel
lifting eye.
3. Install the wall insert (77000) into the compressor casing and, when doing so, pay atten-
tion to the positioning pin in the compressor casing.
4. Fit the diffuser(79000) with fixing discs (79040) and screws (79041). Observe the tight-
ening torque.
