ABB HT580635 - Fig. 113: Assembly of Elbows 2; Table 71: Tightening Torque (51314, 51316)

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
12 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 12.2 Assembly
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

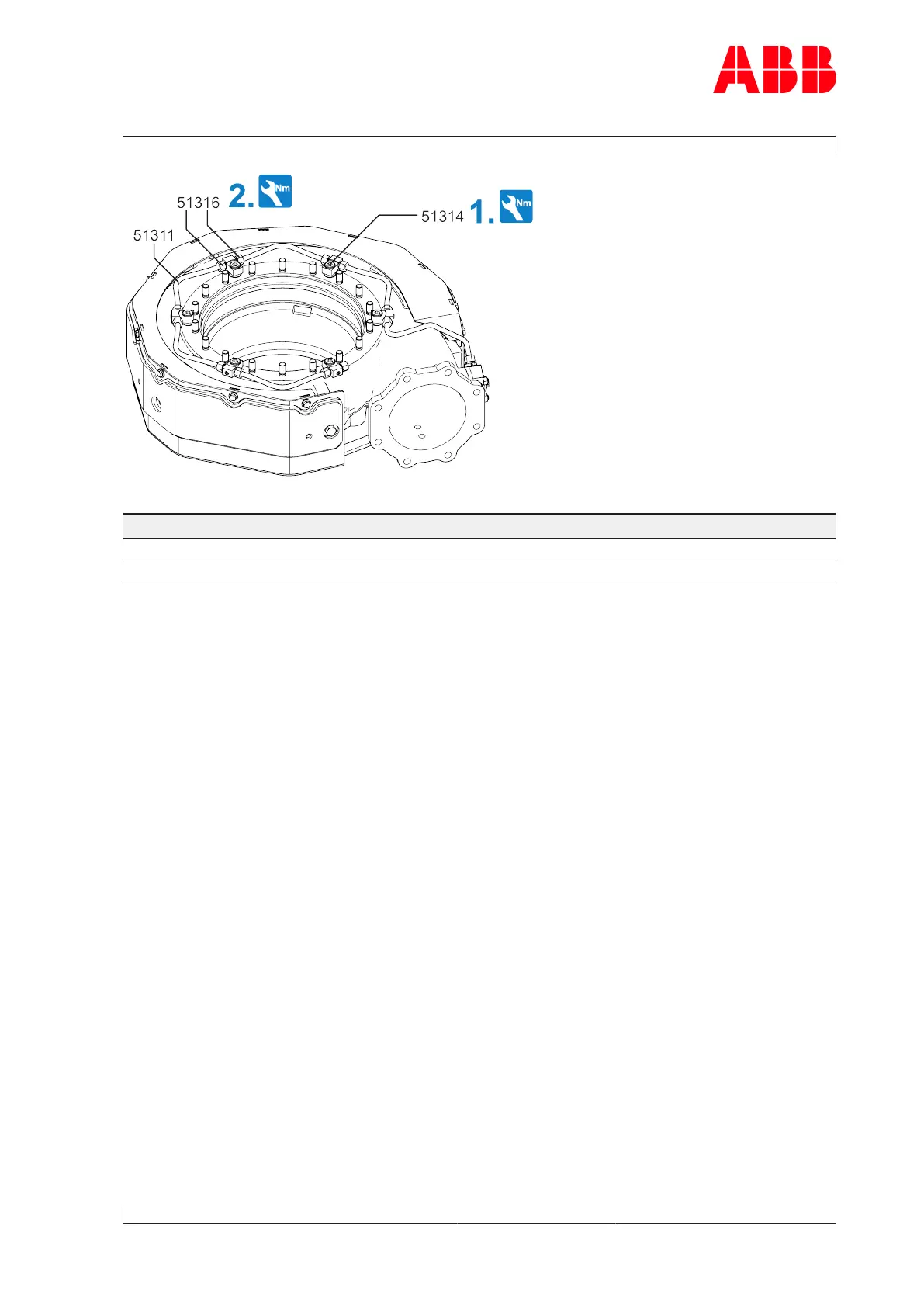

Fig.113: Assembly of elbows 2
Part number A150-M A155-M
51314 80 Nm 100 Nm
51316 70 Nm 90 Nm
Table71: Tightening torque (51314, 51316)
1. Tighten hexagon-head screws(51314) to tightening torque.
2. Tighten union nuts(51316) of elbows(51311) to tightening torque.
Page 141 / 161
