2.2.2 Positioning the turbocharger for storage
WARNING
Risk of tipping
If the turbocharger is not positioned stably, it may tip over. This can result in
serious personal injury.
u Place the turbocharger on a clean, level support.
u Secure the turbocharger to prevent it from tipping over by using wooden
beams and wedges and by taking the centre of gravity into account.

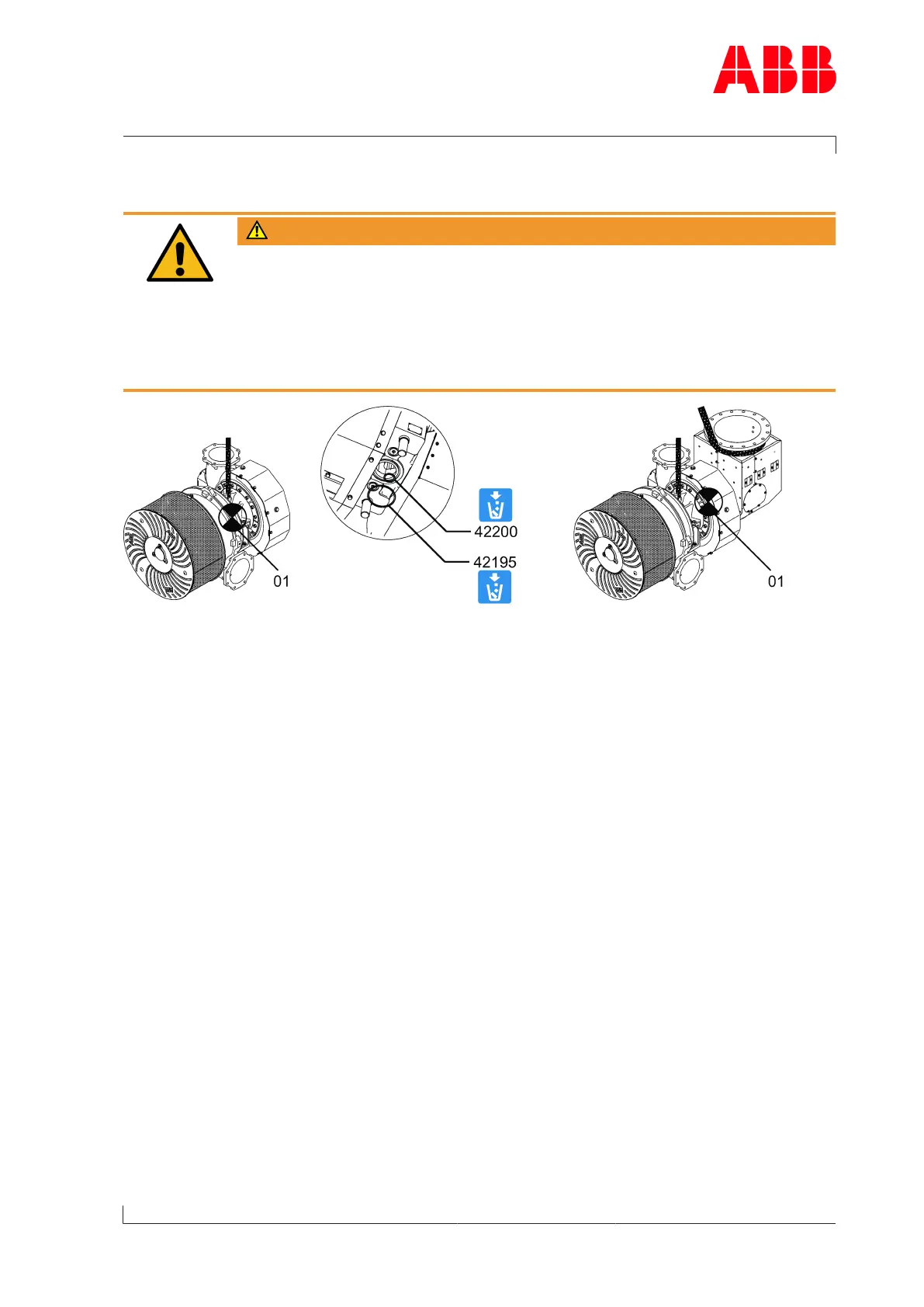

Fig.9: Turbocharger centre of gravity
01 Centre of gravity
u Remove the turbocharger from the engine support.
u Remove and dispose of the O-rings (42195, 42200).
u Set down and secure the turbocharger properly at a suitable location.
u Close or cover the openings of the turbocharger and support.
