9.20 Installing air inlets

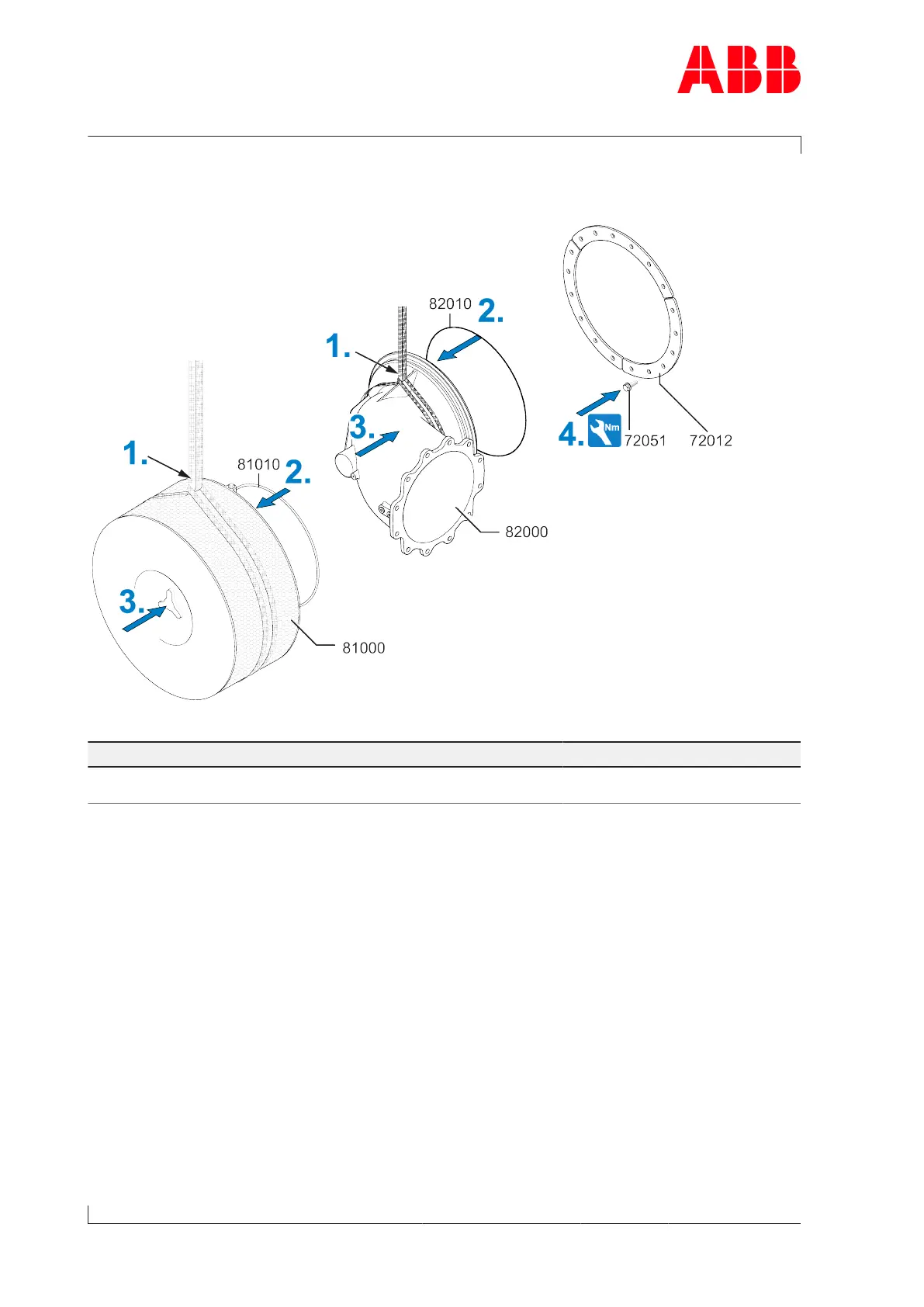

Fig.69: Installing the air inlets
Part number A150 A155
72051 M16
275 Nm
M16
275 Nm
Table51: Tightening torque (72051)
1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).
2. Fit a new O-ring(81010) to the filter silencer(81000) or a new O-ring(82010) to the air
suction branch(82000).
3. Install the filter silencer(81000) or air suction branch(82000).
4. Fit the fastening strips(72012) with hexagon-head screws(72051). Observe the tighten-
ing torque.
