ABB HT580635 - Fig. 102: Attach Nut; Table 68: Tightening Torque (51007) with Spanner Holder

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
Fig.102: Attach nut
Part number A155-M
51007 with spanner holder M16
70 Nm
Table68: Tightening torque (51007) with spanner holder

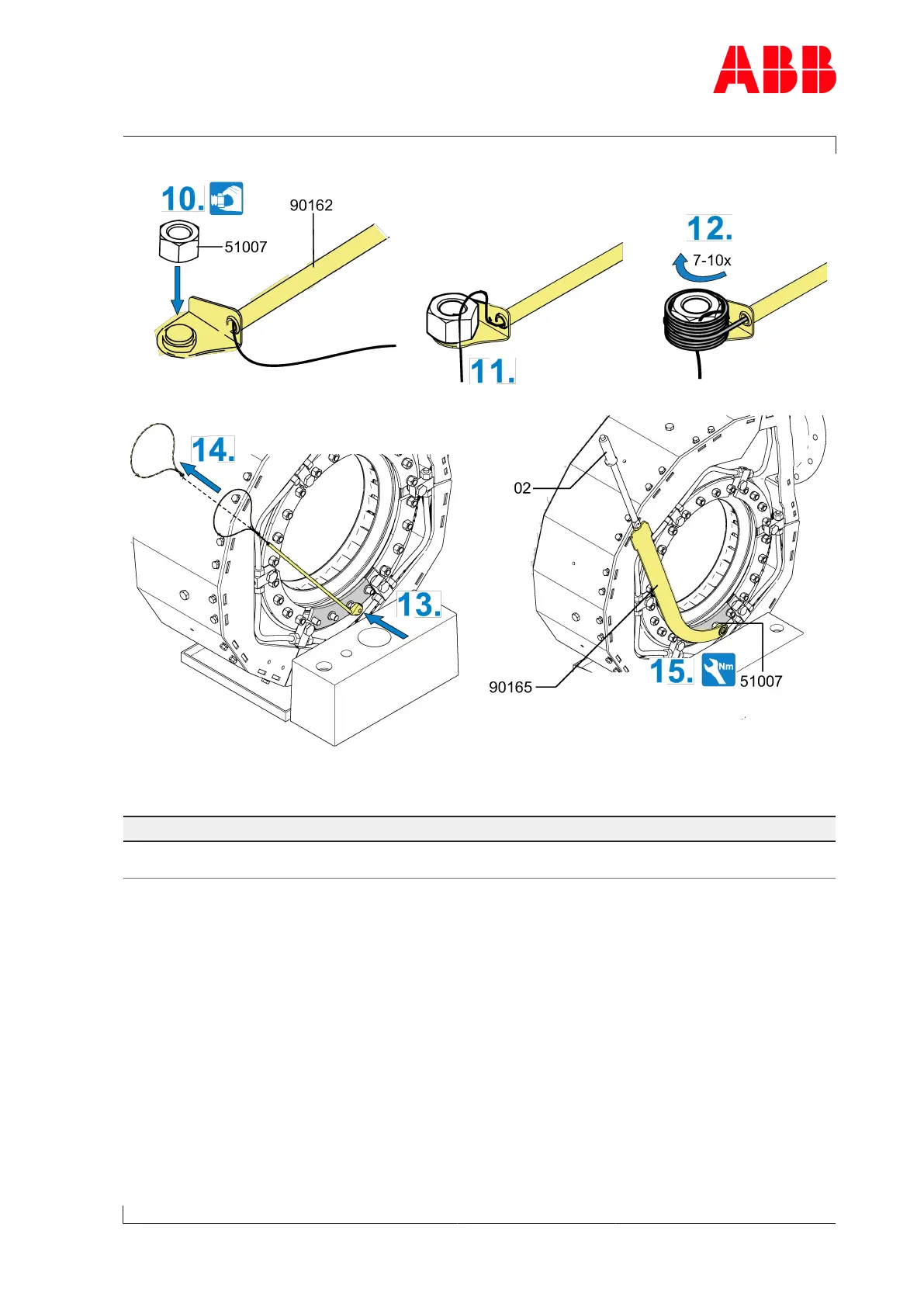

10. Screw the nut (51007) loosely onto the locking device (90162).
11. First position the cord end in the direction of the axis before winding up.
12. Wind up the cord 7-10 times around the nut and over the cord end.
13. Position the locking device (90162) with attached nut (51007) exactly onto the threaded
stud and press on.
14. Fit the nut (51007) onto the set screw by pulling the cord.
15. Fit the nuts (51007) with spanner holder (90165) and attached torque spanner (02). Ob-
serve the tightening torque.
