Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
10 Dismantling and fitting, cartridge concept / 10.3 Removing the
cartridge group
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

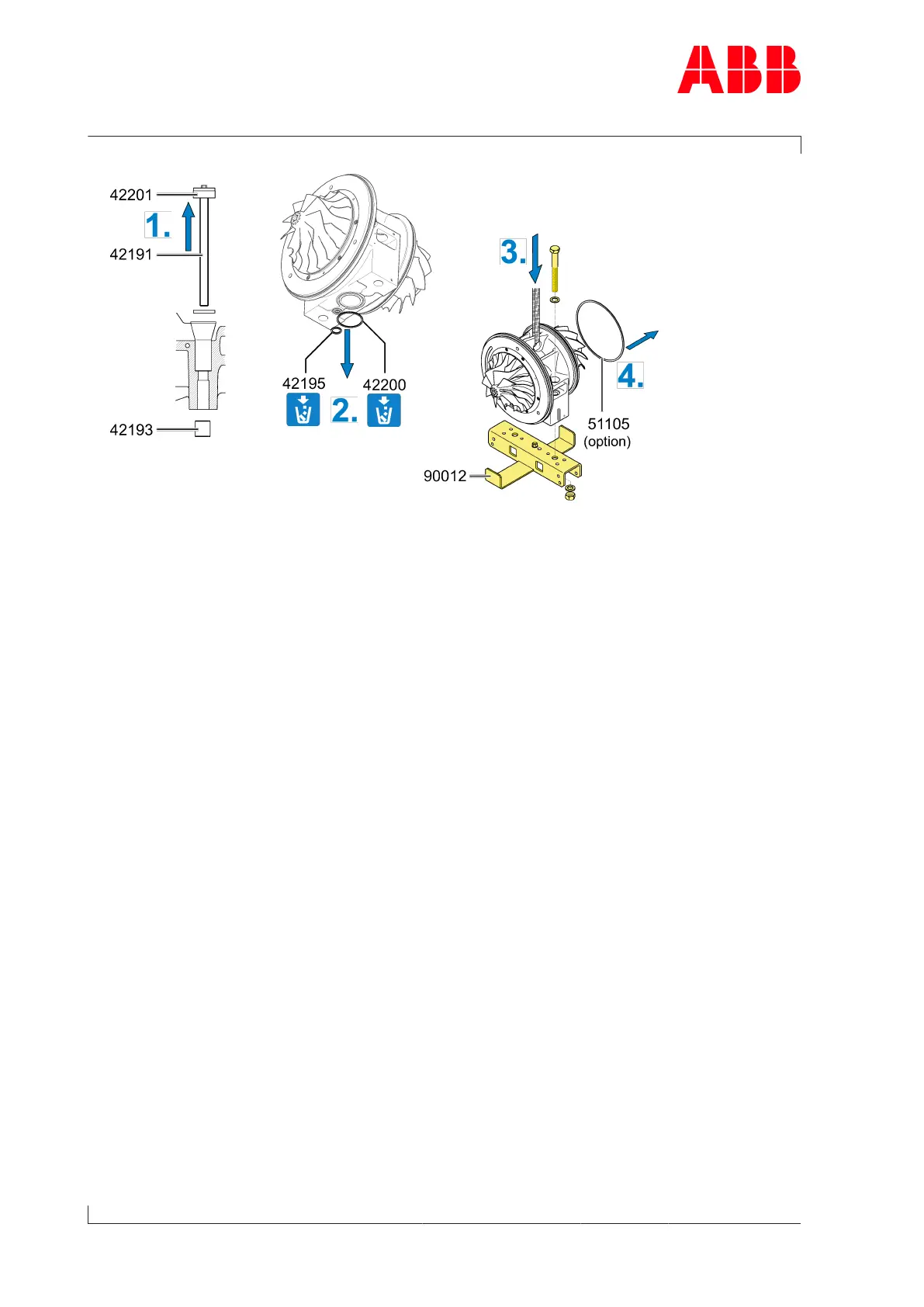

Fig.78: Removing cartridge group 2
1. Remove the centering bush (42193) and the threaded rod (42191) along with the clamping
nut (42201).
2. Remove and dispose of the O-rings (42195, 42200).
3. Attach the cartridge group to the service support (90012).
4. If present: Remove the metal C-ring(51105).
Page 114 / 161
