11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
11.1.1 A155-M Fit fastening strips with extended special tool

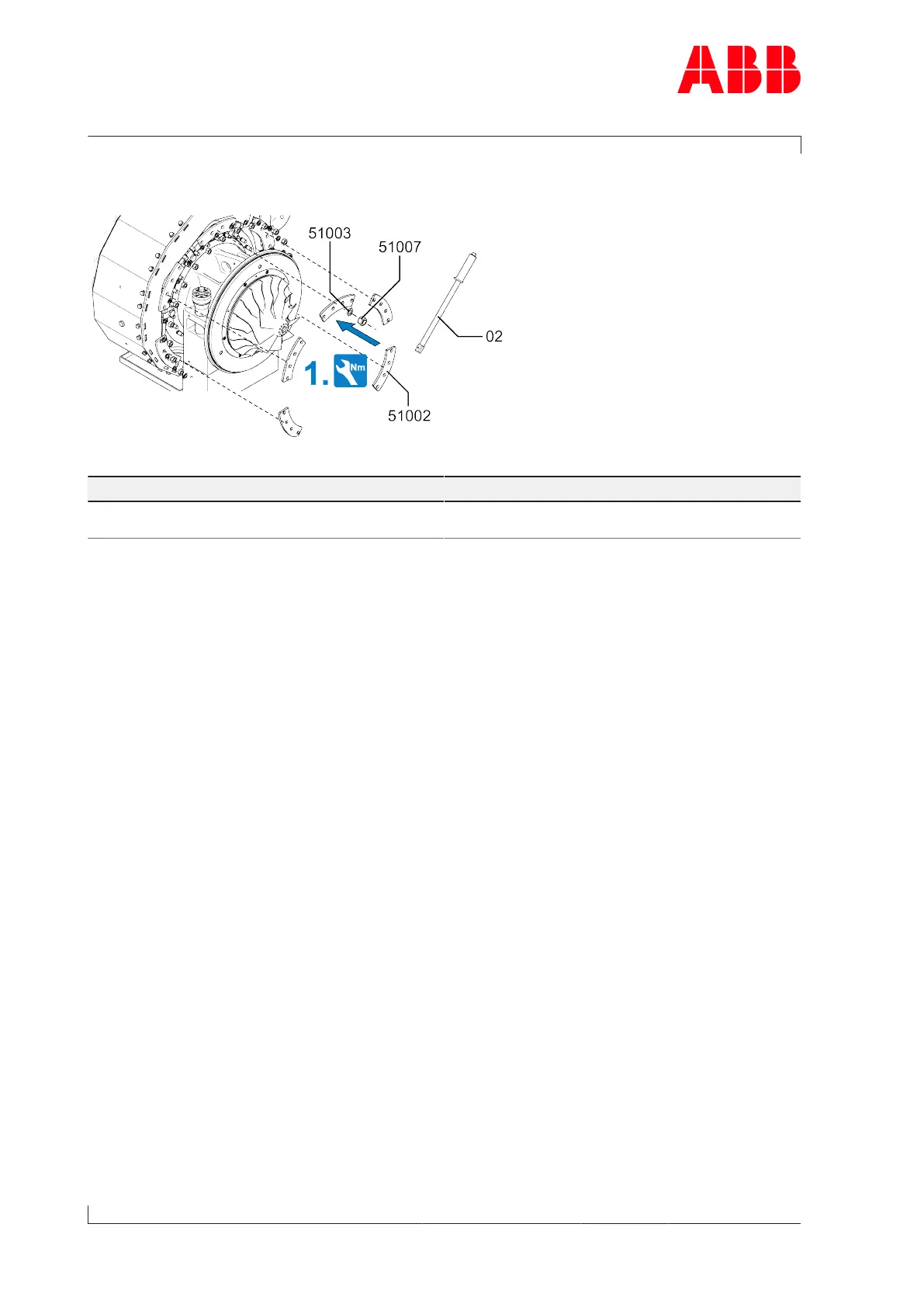

Fig.99: Fitting the cartridge group
Part number A155-M
51007 M16
175 Nm
Table67: Tightening torque (51007)
1. Fit the nuts (51007) of the (upper) fastening strips (51002) illustrated and tighten with a
torque spanner (02) without a spanner holder. Observe the tightening torque.
